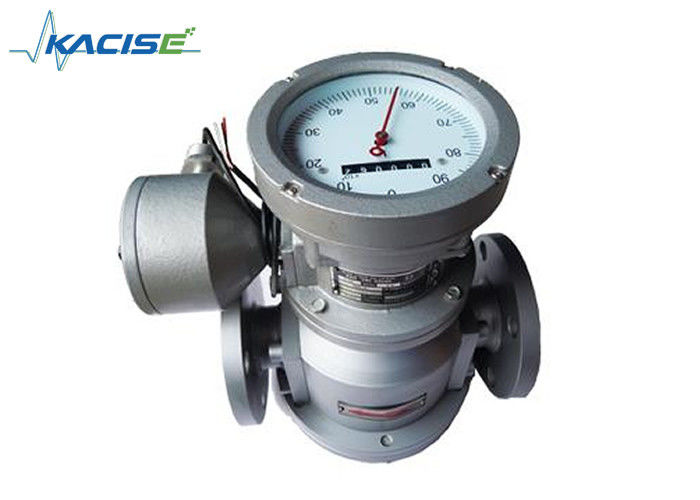

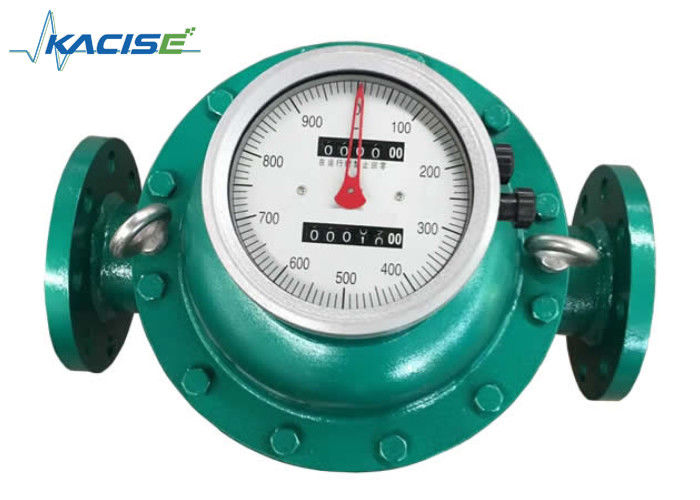

Oval Gear Turbine Flow Meter DN10 - DN200mm For High Viscosity Bitumen / Crude Oil

Oval Gear Turbine Flow Meter DN10 - DN200mm For High Viscosity Bitumen / Crude Oil

  • Oval Gear Turbine Flow Meter DN10 - DN200mm For High Viscosity Bitumen / Crude Oil
  • Oval Gear Turbine Flow Meter DN10 - DN200mm For High Viscosity Bitumen / Crude Oil
Oval Gear Turbine Flow Meter DN10 - DN200mm For High Viscosity Bitumen / Crude Oil
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE / ISO / Explosion-proof
Model Number: KTF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton / Wooden Box
Delivery Time: 5~8 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Contact Now
Detailed Product Description
DN(mm): DN10 - DN200 Pressure: 1.6 Mpa ,2.5Mpa ,4.0Mpa ,6.3Mpa, Special
Medium: Heavy Oil,high Viscosity Oil,Fuel Oil, Chemical Liquids And Bitumen Communication: RS-485 /MODBUS
Accuracy: 0.5% Or 0.2% Output: Pulse, 4-20mA Analog Output, RS485, Hart
Material: Cast Iron/ Steel/ Stainless Steel Power Supply: 12-24VDC /3.6V Lithium Battery
Medium Viscosity: 300-2000mPa.S Ex-proof: ExmdΙΙBT4
High Light:

diesel fuel flow meter

,

explosion proof flow meter

Oval Gear Flow Meter Bitumen Flow Mete High Viscosity Liquild Flowmeter



Description



The Elliptic Gear Flowmeter is a positive displacement flow measurement device designed for accurate and consistent monitoring of liquid flow in pipelines, whether continuous or intermittent. Particularly well-suited for measuring high-viscosity mediums like heavy oil, polyvinyl alcohol, and resin, it efficiently divides the fluid into known volume portions through a mechanical measuring element. The total volume of the fluid is then determined based on the number of times the measuring chamber fills and discharges these volume portions successively and repeatedly.



This oval gear flow meter is specifically tailored for measuring liquid flow rates with a viscosity ranging from 300 to 2000 mPa·s, operating within pipelines subject to certain pressure conditions and temperatures ranging from -10°C to +100°C. Its advantages include a simple structure, high reliability, accuracy, and a low requirement for pipes. It can accommodate a wide range of both viscosity and flow rate, making it a versatile choice.



The Oval Gear Flowmeter, particularly in the context of the oil industry, exhibits exceptional repeatability and durability. Its capabilities extend across various industries, including petroleum, chemical, medicine, transportation, and food, showcasing its adaptability and reliability in diverse applications.



Features

☆. Advantage of oval gear flow meter

☆. Compact size,easy maintenance
☆. Easy to read and operate on mechanical dislpay
☆. Horizontal or vertical installation
☆. Low pressure loss



Specifications



Production Name DN15 Low Flow China Mechanical Bitumen Oval Gear Flow Meter
Medium Main Medium is Oil
Accuracy 0.5% or 0.2%
Output Pulse output ,4~20mA Output and without output
Material Cast iron,cast steel or stainless steel material
Display LCD Display or Local Mechanical display
Function Return to zero function
Accessories ''Y''Filter or square filter
Temperature -20~100℃
Viscosity 0.6Mpa.s~250Mpa.s

GOG100--detail

Oval Gear Turbine Flow Meter DN10 - DN200mm For High Viscosity Bitumen / Crude Oil 1



Oval Gear Turbine Flow Meter DN10 - DN200mm For High Viscosity Bitumen / Crude Oil 2

 Working Principle

Oval Gear Turbine Flow Meter DN10 - DN200mm For High Viscosity Bitumen / Crude Oil 3



Insatallation

Oval Gear Turbine Flow Meter DN10 - DN200mm For High Viscosity Bitumen / Crude Oil 4

Diameter Instrument Material L H B A D D1 n Ф
DN10 Cast Iron 150 100 210 165 90 60 4 14
DN15 Cast Iron 170 118 226 175 95 65 4 14
Cast Steel 200 138 232 180 105 75 4 14
Stainless Steel 245 120 226 172 95 65 4 14
DN20 Cast Iron 200 150 238 180 105 75 4 14
Cast Steel 250 164 220 160 125 90 4 18
Stainless Steel 236 150 238 225 105 75 4 14
DN25 Cast Iron 260 180 246 194 115 85 4 14
Cast Steel 300 202 252 185 135 100 4 18
Stainless Steel 287 195 246 232 115 85 4 14
DN40 Cast Iron 245 180 271 200 145 110 4 18
Cast Steel 300 202 293 208 165 125 4 23
Stainless Steel 265 178 349 265 145 110 4 18
DN50 Cast Iron 340 250 372 285 160 125 4 18
Cast Steel 384 262 394 312 195 135 4 23
Stainless Steel 265 178 349 265 180 125 4 18
DN65 Cast Iron 420 325 433 360 195 160 8 18
Stainless Steel 365 260 436 319 180 145 4 18
DN80 Cast Iron 420 325 433 360 195 160 8 18
Cast Steel 450 337 452 332 510 170 8 23
DN100 Cast Iron 515 418 458 380 220 180 8 18
Cast Steel 555 442 478 310 250 200 8 25
DN150 Cast Iron 540 510 557 400 280 240 8 23
Cast Steel 540 510 557 347 300 250 8 26
DN200 Cast Iron 700 650 720 476 335 295 12 23
Cast Steel 650 650 720 476 360 310 12 26
