Factory Supply oil pressure sensor Digital submersible Water Pressure Sensor

Factory Supply oil pressure sensor Digital submersible Water Pressure Sensor

  • Factory Supply oil pressure sensor Digital submersible Water Pressure Sensor
  • Factory Supply oil pressure sensor Digital submersible Water Pressure Sensor
  • Factory Supply oil pressure sensor Digital submersible Water Pressure Sensor
  • Factory Supply oil pressure sensor Digital submersible Water Pressure Sensor
Factory Supply oil pressure sensor Digital submersible Water Pressure Sensor
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: GXPS400
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Pressure Range: 0~1...500mH2O Overload Pressure: 1.5times Rated Pressure
Secondary Containment: 3 Times Rated Pressure Compensation Temperature: -10°C~70°C
Pressure Interface: G1/4,input Type Output Signal: 4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc
Power Supply: 24VDC, 11~30Vdc, Or Customized Accuracy: ±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability: Typical Value: 0.1%F.S Max.: 0.2% F.S/year Operating Temperature: -40°C~85°C Or -40 °C ~125 °C
High Light:

ultrasonic fluid level sensor

,

ultrasonic liquid level sensor

Factory Supply oil pressure sensor Digital submersible Water Pressure Sensor

1.Product Description

GXPS400 series level transmitter is a special structure and use of products, high precision, small size and
good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered
according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof
certificates. Customized solutions for various fluids can be supplied.

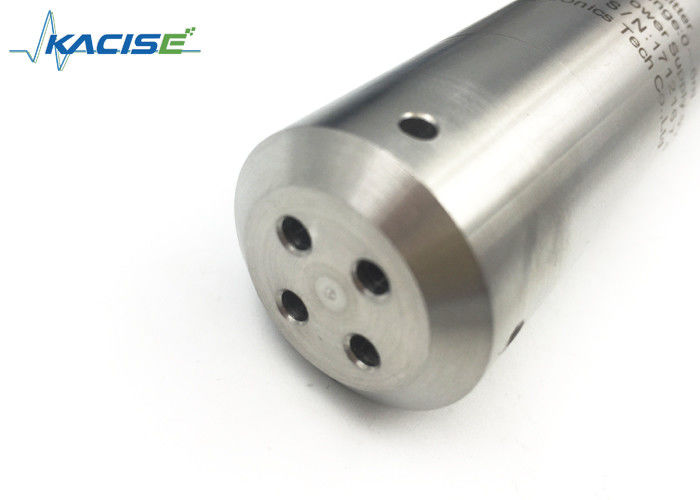

Factory Supply oil pressure sensor Digital submersible Water Pressure Sensor 0

2.Parameter

Spec.Numerical value
Accuracy±0.25%F.S, ±0.5%F.S, ±1.0%F.S
StabilityTypical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature-40°C~85°C or -40 °C ~125 °C
Pressure range

0~1……500mH2O
9.8KPa…4900KPa
0.09bar…49bar
0.09atm…48atm
1.4psi… 711psi
2.8inchHg…1400inchHg

Overload pressure1.5times Rated pressure
Secondary containment3 times rated pressure
Compensation temperature-10°C~70°C
Medium compatibilityAll Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Electrical properties2 line3 line
Output signal4~20mA0~5V0~10V
Power supplies10~30Vdc80~30Vdc/ac11~30Vdc/ac
Load resistance(U-10)/0.02(Ω) 〉100kΩ
Insulation 〉100MΩ@50V
Electrical Connectionswaterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Pressure interfaceG1/4,input type
Response time10ms
Electric strength500Vac@1 second
Graduate Certificate Programscertificate of explosion-proof, CE
Electromagnetic compatibilityelectromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Lightning protectionair conduction resistance 8000V,case, cable conduction


3.Feature


  • Multiple pressure range and signal output
  • Non-polar 2 wire system current output
  • Can be used in lightning protection products
  • Diffused-Silicon oil filled core
  • All kinds of structure to satisfy different users
  • Easy to use with submersible measuring
  • Reinforcing rib for liquid cable available
  • Intrinsically safe explosion proof, Isolation explosion proof, CE
  • Four layers of waterproof protection

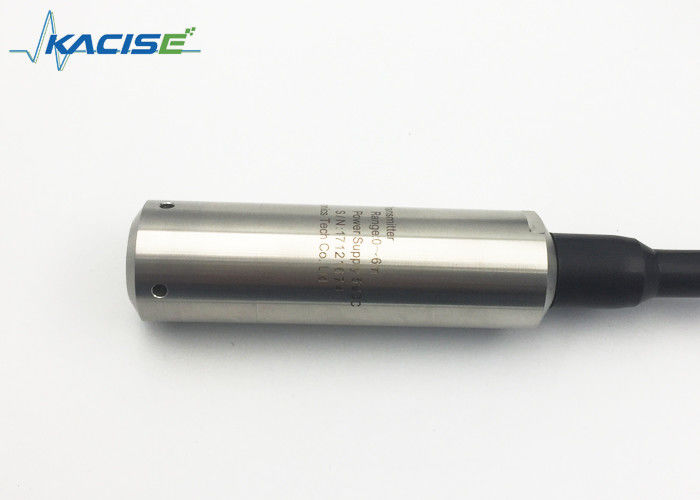

Factory Supply oil pressure sensor Digital submersible Water Pressure Sensor 1

4.Application Field


  • Cloudy level measuring
  • Fluid reservoir level measuring
  • Water-saving irrigation
  • Deep well level measuring
  • Hydrologic measurement for river, lake, sea
  • Sewage treatment
  • Circulating liquid consumption monitoring
  • Diversion project

Our Services

Pressure sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:

1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

After-sales service

We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year

During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
