Place of Origin: | Shaanxi, China (Mainland) |
Brand Name: | KACISE |
Certification: | CE,ISO |
Model Number: | KBU601 |
Minimum Order Quantity: | 0-100 |
---|---|
Price: | Negotiable |
Packaging Details: | carton or customers requests available |
Delivery Time: | 5 working days after payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100 |
Output: | Support RS-485, MODBUS Protocol | Resolution: | 0.1NTU |
---|---|---|---|
Accurate: | 0.3NTU | Protection Level: | IP68 |
Temperature Range: | 0 ~ 50℃ | Product Material: | POM |
High Light: | water turbidity sensor,oil in water sensor |

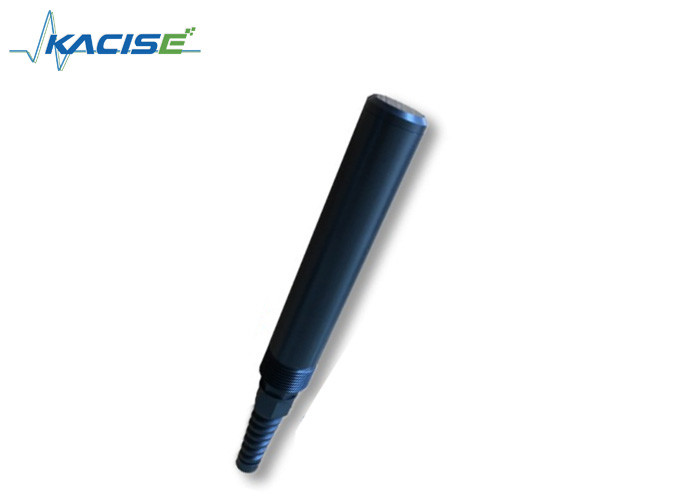

Fiber Turbidity Sensor
Technical Specifications
product | Fiber turbidity sensor | Self-cleaning turbidity sensor |
principle | 90° scattered light | |
Measuring range | 0-1000NTU | |
Resolution | 0.1NTU | |
accurate | 0.3NTU | |
Protection level | IP68 | |
Deepest depth | Underwater 60 meters | underwater 10 meters |
temperature range | 0 ~ 50℃ | |
Output | Support RS-485, MODBUS protocol | |
Power supply | DC 5~12V, current <50mA | DC 5~12V, current <50mA (when not cleaned) |
size | Φ22mm*120mm | Φ33mm*156mm |
Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | |
product material | POM | |
Self-cleaning system | exist | No |
Optical window | optical fiber |
Applications
Kacise Sensing applies fiber technology to the turbidity sensor to make the sensor
Better repeatability and stability, not susceptible to ambient light. coordination
The sensor's automatic cleaning brush effectively eliminates air bubbles and reduces the effects of contamination on the measurement.
Long-term online use, longer maintenance intervals and better stability.
Feature
Digital sensor, RS-485 output, support MODBUS, with automatic cleaning brush, prevent pollution, eliminate air bubbles, strong anti-interference ability, no ambient light and chromaticity, 90° scattered light principle, better fiber technology repeatability.
