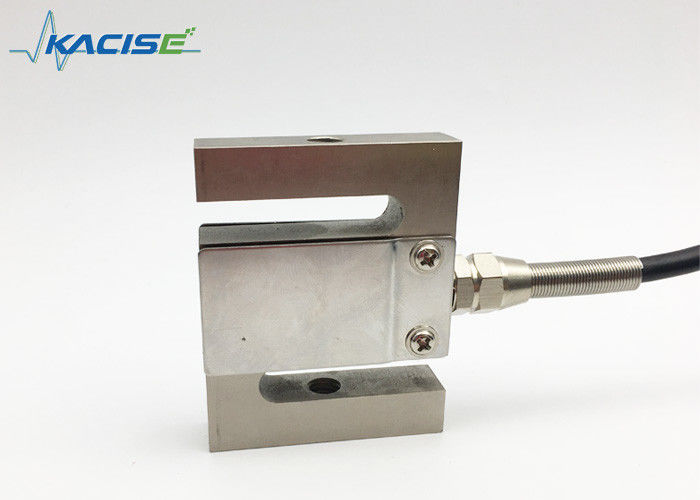

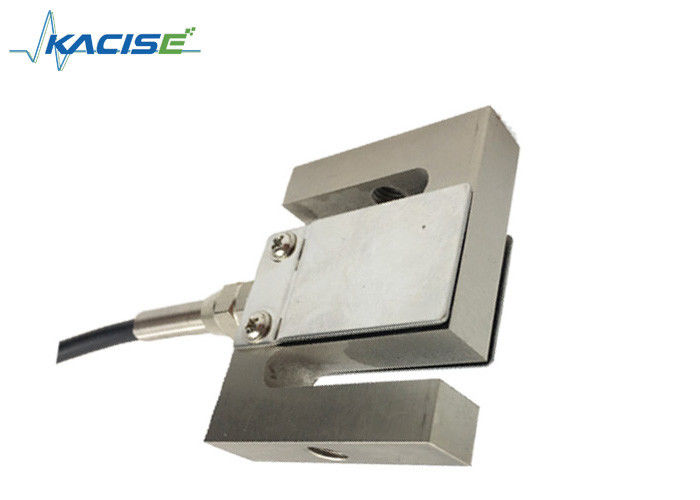

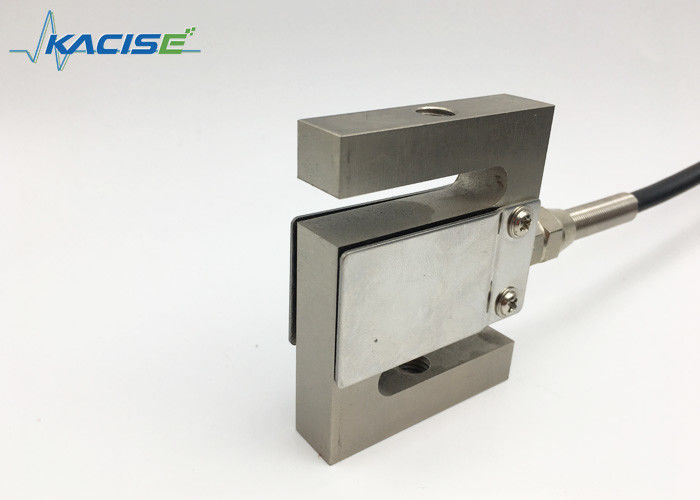

1000kg 5000kg Alloy Steel S Type Load Cell High Dynamic Response Frequency

1000kg 5000kg Alloy Steel S Type Load Cell High Dynamic Response Frequency

  • 1000kg 5000kg Alloy Steel S Type Load Cell High Dynamic Response Frequency
  • 1000kg 5000kg Alloy Steel S Type Load Cell High Dynamic Response Frequency
  • 1000kg 5000kg Alloy Steel S Type Load Cell High Dynamic Response Frequency
  • 1000kg 5000kg Alloy Steel S Type Load Cell High Dynamic Response Frequency
1000kg 5000kg Alloy Steel S Type Load Cell High Dynamic Response Frequency
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KCZ-301
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Carton / Wooden box
Delivery Time: 7 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Capacity: 10, 20, 30, 50, 100, 200N Sensitivity: 2.0±10%mV/V
Zero Balance: ±0.02%F.S Non-linearity: 0.05%F.S
Hysteresis: 0.05%F.S Repeatability: 0.05%F.S
High Light:

load cell weight sensor

,

Tension Load Cell

,

strain gauge weight sensor

KCZ-301 S type load cell



1.Features and Applications



Low profile and small deformation;

Made of stainless steel

Test for welding force and tension;

Automotive press ift, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system.

High dynamic response frequency.



2.Technical Specifications



Capacity 10, 20, 30, 50, 100, 200N
Sensitivity 2.0±10%mV/V
Zero balance ±0.02%F.S.
Non-linearity 0.05%F.S
Hysteresis 0.05%F.S
Repeatability 0.05%F.S
Creep (30min) 0.05%F.S
Temp.effect on output 0.05%F.S/10℃
Temp.effect on zero 0.05%F.S/10℃
Input impedance 350±310Ω
Output impedance 350±5Ω
Insulation ≥5000MΩ/100VDC
Recommended excitation 5V
Maximum excitation 15V
Compensated temp range -10~60℃
Operation temp range -20~80℃
Safe overload 150%F.S
Ultimate overload 300%F.S
Cable size Φ2x4000mm
Weight approx. 0.1kg
Material Stainless steel
IP class IP67
Cap (N) 5, 10, 20 Need casing
Cap (N) 30, 50, 100, 200 Casing is optional



3.Dimensions and Connection



1000kg 5000kg Alloy Steel S Type Load Cell High Dynamic Response Frequency 0

4.Mounting dimension



Model Load Deflection Natural Frequenc Weight
T318-10N 0.18mm 11kHZ 106g
T318-50N 0.18mm 14kHZ 106g
T318-100N 0.18mm 17kHZ 106g
T318-200N 0.18mm 26kHZ 106g
T318-500N 0.18mm 50kHZ 106g
T318-1000N 0.18mm 64kHZ 106g
