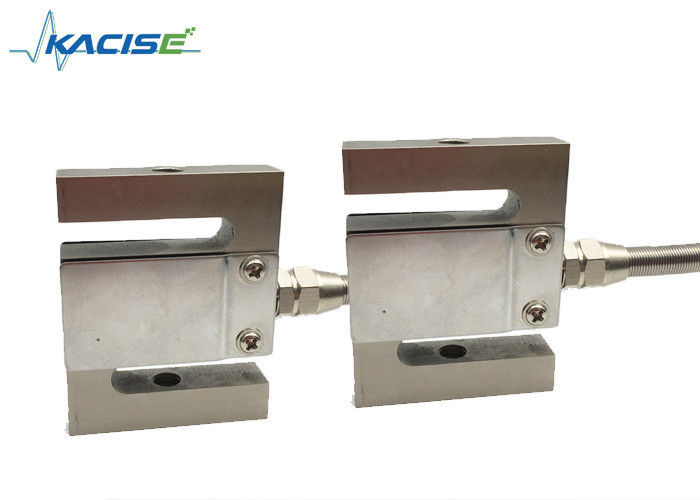

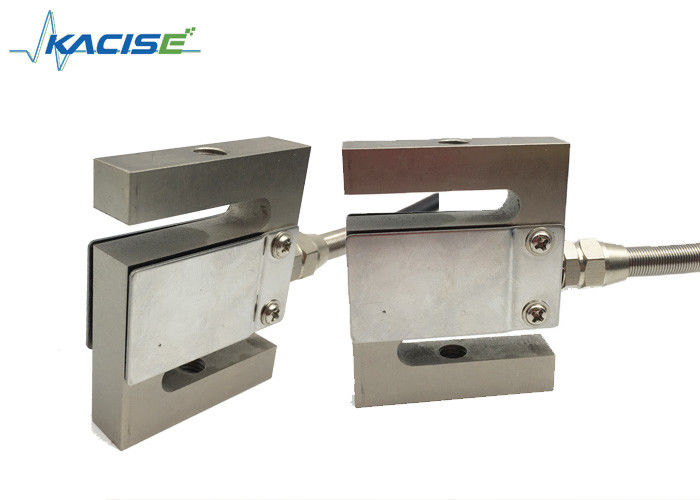

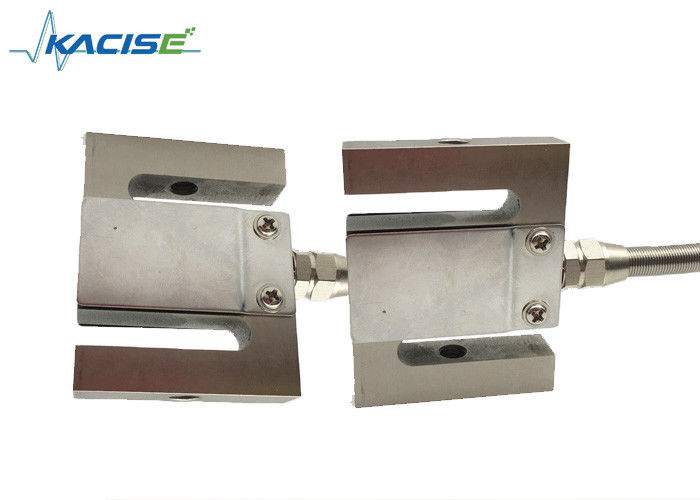

Industrial Aluminum Tension Load Cell / S - Type Load Cell For Weighing Machine

Industrial Aluminum Tension Load Cell / S - Type Load Cell For Weighing Machine

  • Industrial Aluminum Tension Load Cell / S - Type Load Cell For Weighing Machine
  • Industrial Aluminum Tension Load Cell / S - Type Load Cell For Weighing Machine
  • Industrial Aluminum Tension Load Cell / S - Type Load Cell For Weighing Machine
Industrial Aluminum Tension Load Cell / S - Type Load Cell For Weighing Machine
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KCZ-301
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Carton / Wooden box
Delivery Time: 7 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Capacity: 10, 20, 30, 50, 100, 200N Sensitivity: 2.0±10%mV/V
Material: Aluminum Alloy Or Alloy Steel Theory: Resistance Sensor
Structure: Compact IP Class: IP69
High Light:

load cell weight sensor

,

Tension Load Cell

,

strain gauge weight sensor

Industrial Aluminum Tension Load Cell s-Type With High Capacity 1kg To 200kg



*Applications



Automotive press ift, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system.



*Features



Model:KCZ-201
Small size, easy to use
Made of Aluminum alloy or Alloy steel
Capacity:1kg~200kg
Tension and compression load cell
High comprehensive precision, high stability
Simple structure, easy to install



*Mounting dimension



Model Load Deflection Natural Frequenc Weight
T318-10N 0.18mm 11kHZ 106g
T318-50N 0.18mm 14kHZ 106g
T318-100N 0.18mm 17kHZ 106g
T318-200N 0.18mm 26kHZ 106g
T318-500N 0.18mm 50kHZ 106g
T318-1000N 0.18mm 64kHZ 106g





*Technical Specifications



Capacity 10, 20, 30, 50, 100, 200N
Sensitivity 2.0±10%mV/V
Zero balance ±0.02%F.S.
Non-linearity 0.05%F.S
Hysteresis 0.05%F.S
Repeatability 0.05%F.S
Creep (30min) 0.05%F.S
Temp.effect on output 0.05%F.S/10℃
Temp.effect on zero 0.05%F.S/10℃
Input impedance 350±310Ω
Output impedance 350±5Ω
Insulation ≥5000MΩ/100VDC
Recommended excitation 5V
Maximum excitation 15V
Compensated temp range -10~60℃
Operation temp range -20~80℃
Safe overload 150%F.S
Ultimate overload 300%F.S
Cable size Φ2x4000mm
Weight approx. 0.1kg
Material Stainless steel
IP class IP67
Cap (N) 5, 10, 20 Need casing
Cap (N) 30, 50, 100, 200 Casing is optional



*Dimensions and Connection



Industrial Aluminum Tension Load Cell / S - Type Load Cell For Weighing Machine 0
