| Place of Origin: | China |
| Brand Name: | Kacise |
| Certification: | CE certificate, isolation explosion proof |
| Model Number: | GXPS240 |
| Minimum Order Quantity: | 1 Piece/pieces |
|---|---|
| Price: | negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces per week |
| Pressure Range: | 0~0.5MPa......60MPa | Operating Temperature: | -40°C~125°C |
|---|---|---|---|
| Accuracy: | ±0.5%F.S, ±1.0%F.S | Output Signal: | 4~20mA 0~5V 0~10V |
| Display Range: | -9999~99999@PT101A/C | Power Supply: | 10~30Vdc 8~30Vdc 12~30Vdc |
| High Light: | high accuracy pressure sensor,piezoresistive pressure transmitter |
||
Introduction

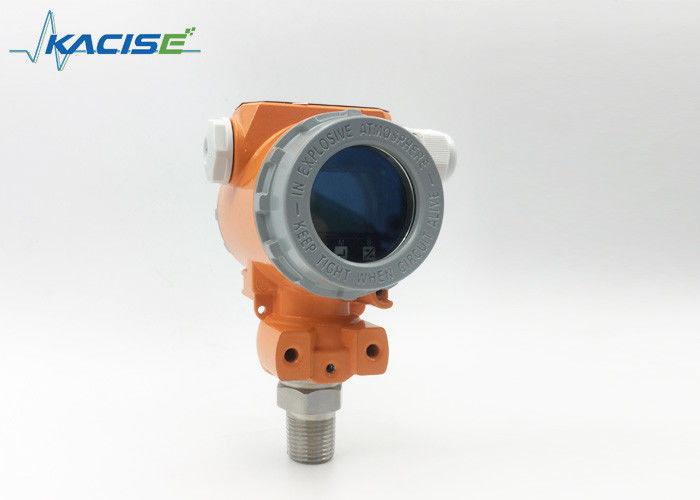

GXPS240 series pressure transmitter is a high temperature, civil and industrial use, cost-effective products. Widely used in the constant pressure water supply, boiler pressure control and other water, oil, and mildly corrosive liquids and gases.
The product is made of stainless steel structure, with import well-known pressure core, a dedicated V / I conversion of electrical energy to facilitate its zero and full scale calibration, having intrinsically safe explosion-proof certification, isolated explosion-proof certification and CE certification.
Non-polarity; circulation output lead of the two-wire and three-wire voltage output for both AC and DC.
Buffer joint can prevent 5~10 times the range of water hammer or impact.
Parameter
| Spec. | Value | |||
| Pressure range | 0~0.5MPa......60MPa | |||
| Load pressure | 1.5times nominal value pressure (1.5X) | |||
| Rupture pressure | 3times nominal value pressure (3X) | |||
| Accuracy | ±0.5%F.S, ±1.0%F.S | |||
| Stability | Typical value 0.25%F.S, Max. value: 0.4%F.S | |||
| Operating temperature | -40°C~125°C | |||
| Compensation temperature | -10°C~70°C | |||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||
| Electrical performance | 2 wire system | 3 wire system | ||
| Output signal | 4~20mA | 0~5V | 0~10V | |
| Power supply | 10~30Vdc | 8~30Vdc | 12~30Vdc | |
| Load pressure | (U-10)/0.02(Ω) | >100kΩ | ||
| Insulation | >100M Ω@50V | |||
| Electric strength | 500V@60 second | |||
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||
| Pressure durable | 2×106pressure circle @25°C | |||
| Display range | -9999~99999@PT101A/C | |||
| Electrical connection | Terminal + waterproof outlet; protection: IP65 | |||
| Pressure port | M20×1.5, G1/4, G1/2, NPT1/4, NPT1/2 | |||
| Pressure type | G, A | Response time: 10ms | ||
| Certificate | Isolation explosion proof D, CE certificate | |||
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |||
Application
Feature
Electronic interface and signals definition
Instruction
A type: High temperature, isolation explosion proof, pressure transmitter with display, terminal line outlet.
B type: Isolation explosion proof pressure transmitter, terminal outlet
C type: Explosion-proof with display pressure transmitter, terminal line outlet
