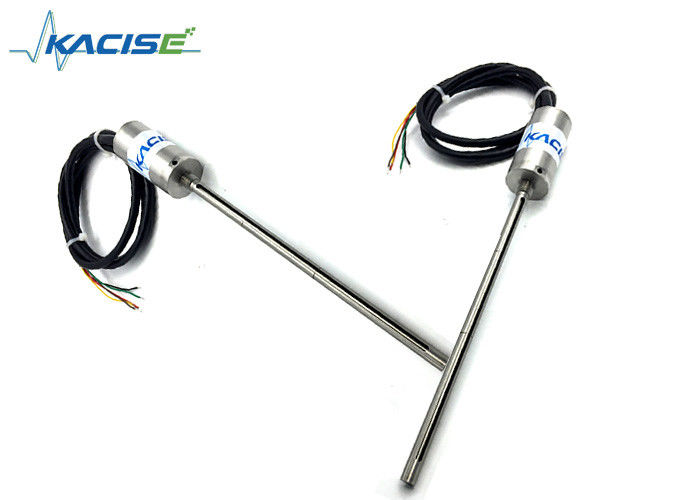

IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor

IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor

  • IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor
  • IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor
IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor
Product Details:
Place of Origin: CHINA
Brand Name: KACISE
Certification: CE
Model Number: KCF100
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Level Range: 0~150mm Accuracy: 0.5%, 1%
Medium: Liquid, Solid Output: 4-20mA
IP Grade: IP68 Cable: Polyethylene Cable
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

4-20mA Temperature And Pressure Integrated Liquid Level Transmitter





 Introduction



KCF100 series temperature and pressure integrated liquid level transmitter is an adjustable capacitance type liquid level transmitter developed by our company for high precision and high stability measurement of oil level and water level. It has short-circuit protection and certain over-voltage surge protection capability, and has the characteristics of fast response, wide voltage supply, strong load capacity and wide temperature measurement range. It supports two calibratable analog outputs, ModBus RTU communication protocol and fast forced zero function, the overall performance is stable and reliable.



 Electronic interface and signals definition



Color Definition
Red +V
Black GND
Brown Level output 4-20mA
White Temperature output 4-20mA
Green RS485-A
Yellow RS485-B



 Parameter:



IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor 0



Parameter:



Spec. Numerical value
Level range 0~150mm
Temperature range -30~100℃
Accuracy

Typical error of level 0.35%

Temperature error ±2.5 °C

Response time

Level measurement is typically less than 1 seconds

Temperature measurement is typically less than 3 seconds.

Load resistance ≤300Ω
Working current < 60mA (when two 4-20mA output same time)
Operating temperature -30°C~80°C
Compensation temperature -10°C~80°C
Storage temperature -40°C~125°C
Medium compatibility All Caustic Medium Compatible with 316L
Output signal 4~20mA / RS485-Modbus
Power supplies 9~24Vdc
Connection M10.00*1mm male thread
Cable Polyethylene cable
IP Grade IP68





Model Selection:



KUM-B
  Measurement Range
A 5m
B 10m
C 15m
D 20m
E 30m
F 40m
G 50m
H 60m
  Output Signal
A 4-20mA
  Accuracy
0.5 0.5%
1.0 1%
  Power Supply
A 24Vdc
B 11~30Vdc
  Probe Type
A PVDF
B Aluminum alloy
C ABS
D Stainless steel 316L
E Teflon
F Titanium alloy



Applications and Installations:



  • Petroleum, chemical, electric power
  • Equipment supporting, hydraulic and other industries
