| Place of Origin: | China |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | KUMA |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton with bubble |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
| Range: | 5、8、10、12、15m | Blind Zone: | ＜0.4-0.5m（different For Range） |
|---|---|---|---|
| Measure Error: | 0.3%F.S | Display: | OLED |
| Display Resolution: | 1mm | Frequency: | 20～350KHz |
| Power: | 12-24VDC | Power Consumption: | <1.5W |
| High Light: | ultrasonic level transmitter,ultrasonic liquid level sensor |
||

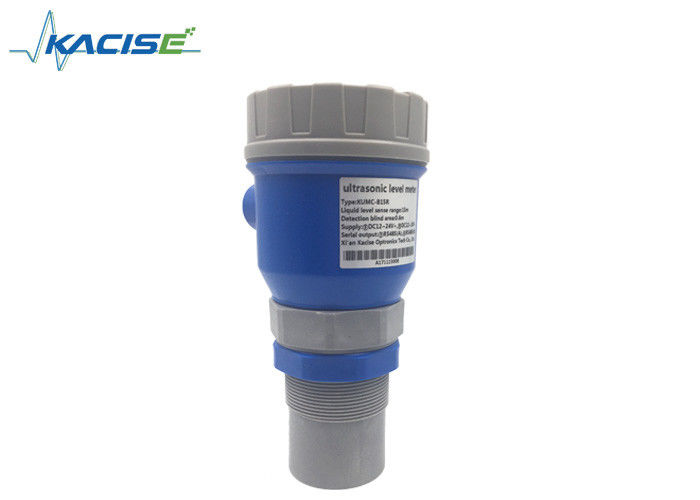

High Precision RS485 Output Explosion-proof Ultrasonic water Level Meter with ABS Probe
Introduction
Ultrasonic level measuring instrument, taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.
It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.
Features
II. Characteristics
●DC12-24V wide work voltage
●Backup and recovery parameter set
●Free adjustment of the range of analog output
●Set a filter value to remove
●Custom serial port data format
●Optional increment/difference distance measurement to measure air space or liquid level
●1-15 transmitted pulse intensity depending on working conditions
More choices depend on your requirement, as bellowing:
III. Specifications
Range:5,8,10,12,15m
Blind zone:＜0.4-0.5m(different for range)
Measure error: 0.3%F.S

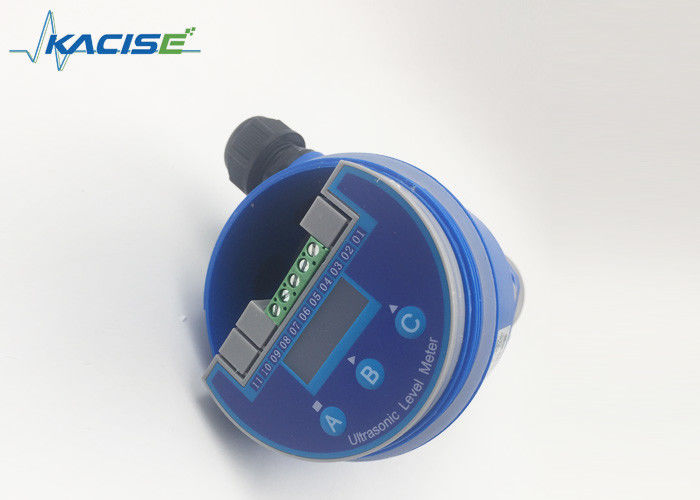

Display: OLED
Display resolution:1mm
Frequency::20～350KHz
Power: 12-24VDC
Power consumption:<1.5W
Output (optional):
4～20mA RL>600Ω(standard)
1～5V1～10V
RS485
3 NPN
2 relays (AC: 5A 250V DC: 10A 24V)
Material:ABS
Dimension:Φ92mm×198mm×M60
Electrical interface:M20X1.5
Installation:M60X2 or ￠61MM
Operating surroundings:normal temperature, normal pressure
Protection degree:IP65(others optional)
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, range , output signal, medium, power supply, so we can choose model and quote for you quickly.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
Parameters
| Range | 5,8,10,12,15m |
| Blind zone | ＜0.4-0.5m(different for range) |
| Measure error | 0.3%F.S |
| Display | OLED |
| Display resolution | 1mm |
| Frequency | 20～350KHz |
| Power | 12-24VDC |
| Power consumption | <1.5W |
|
Output (optional) |
4～20mA RL>600Ω(standard) |
| 1～5V1～10V | |
| RS485 | |
| 3 NPN | |
| 2 relays (AC: 5A 250V DC: 10A 24V) | |
| Material | ABS |
| Dimension | Φ92mm×198mm×M60 |
| Electrical interface | M20X1.5 |
| Installation | M60X2 or ￠61MM |
| Operating surroundings | normal temperature, normal pressure |
| Protection degree | IP65(others optional) |
