| Sensing Range: | 110 ... 2000 Mm | Standard Target Plate: | 100 Mm X 100 Mm |
|---|---|---|---|
| Transducer Frequency: | Approx.112 KHz | LED Blue: | Power On |
| Output Type: | 1 Analog Output 0…10V Or 4-20mA | Resolution: | Evaluation Range [mm]/4000, But ≥0.35mm |
| Protection Degree: | IP65 | Load Impedance: | 0…500 Ohm |
| High Light: | ultrasonic level transmitter,ultrasonic liquid level sensor |
||

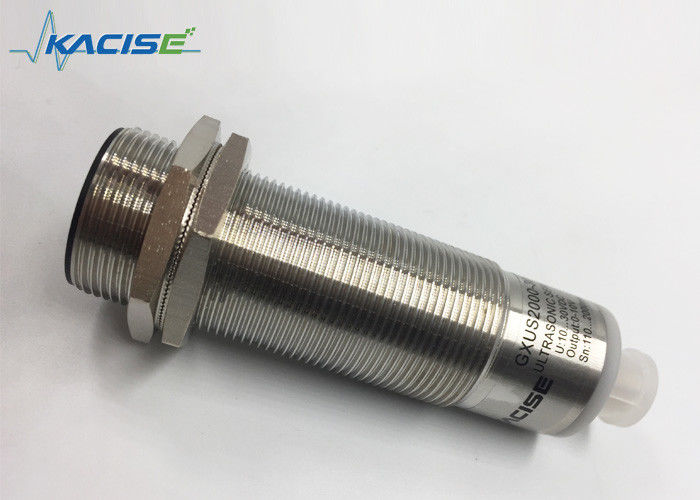

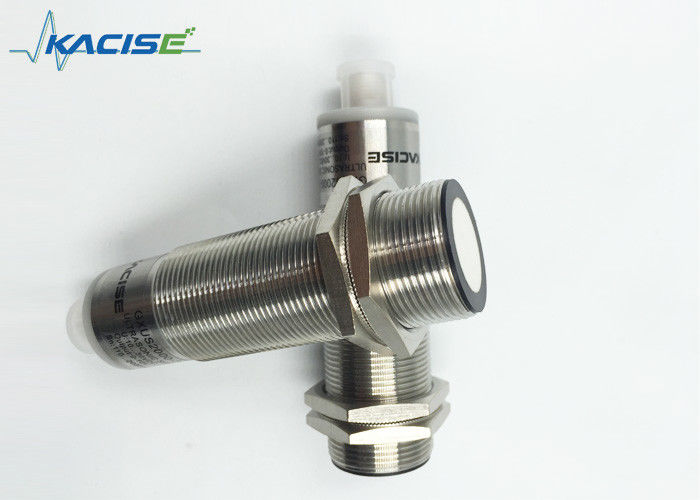

GXUS2000 series IP67 Distance Measuring Analogue Ultrasonic Sensor
Introduction
The Ultrasonic sensor uses sound waves to do non-contact and wear-free detection on target subjects. It can be used to detect either transparent or colored objects, metal objects or non-metallic objects, as well as solid, liquid or powdered substance. Ambient conditions such as environmental smoke, dust, environment or rain have very small affect on the detection performance of ultrasonic sensors.
Features
☆ Measuring window adjustable
☆ Program input
☆ Small unusable area
Electronic interface and signals definition
Parameters
| Sensing range | 110 ... 2000 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx.112 kHz |
| Response delay | approx.195 ms |
Indicators/operating means
| LED blue | Power on |
|
LED yellow |
solid: object in the evaluation range |
| flashing: program function, object detected | |
|
LED red |
solid: Error |
| flashing: program function, no object detected |
Electrical specifications
| Operating voltage UB | 10 ... 30 V DC , ripple 10 %SS |
| No-load supply current I0 | ≤ 900 mA |
Output
| Output type | 1 analog output 0…10V or 4-20mA |
| Resolution | Evaluation range [mm]/4000, but ≥0.35mm |
| Deviation of the characteristic curve | ≤0.2% from full-scale value |
| Load impedance | 0…500 Ohm |
| Temperature influence | ≤ 2 % of full-scale value |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | Connector(M12×1), 4-pin |
| Protection degree | IP65 |
| Material | Housing: nickel plated brass or plastic |
| Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam |
Description of Sensor Functions
Adjusting the evaluation limits
The ultrasonic sensor features an analogue output with two teachable evaluation limits. These are set by applying the supply voltage -UB or +UB to the TEACH-IN input. The supply voltage m st be applied to the TEACH-IN input for at least 1 s. LEDs indicate whether the sensor has recognized the target during the TEACH-IN procedure. The lower evaluation limit A1 is taught with -UB, A2 with +UB.
Two different output functions can be set:
Evaluation limits may only be specified within the first 5 minutes after Power on. To modify the evaluation limits later, the user may specify the desired values only after a new Power On.
A1: unusable area
A2: nominal sensing range Mode of operation: rising ramp
| Displays in dependence on operating mode | Red LED | Yellow LED | |||
|
TEACH-IN evaluation limit
Object det cted No object etected Object uncertain (TEACH-IN invalid) |
off flashes on |
flashes |
|||
|
off
off |
|||||
| Normal mode (evaluation range) | off | on | |||
| Fault | on | previous state | |||
5. Installation conditions
If the sensor is installed at the environment with temperature below 0℃, it should be protected. When mounting the sensor in
a through hole by screw nuts, the sensor need to be fixed at the middle of the mounting thread.
