| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | ISO9001:2008 |
| Model Number: | GR2 |
| Minimum Order Quantity: | 1ps |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 10000 Pieces per Week |
| Function: | Return Air | Certificate: | ISO9001:2008 |
|---|---|---|---|
| Material: | Stainless Steel | Installation: | Wall Mounted |
| Relative Product: | Backdraft Damper | Type: | HVAC Systems |
| Feature: | Durable | Accessories: | Net |
| High Light: | wire rope shock absorber,cable shock absorber |
||

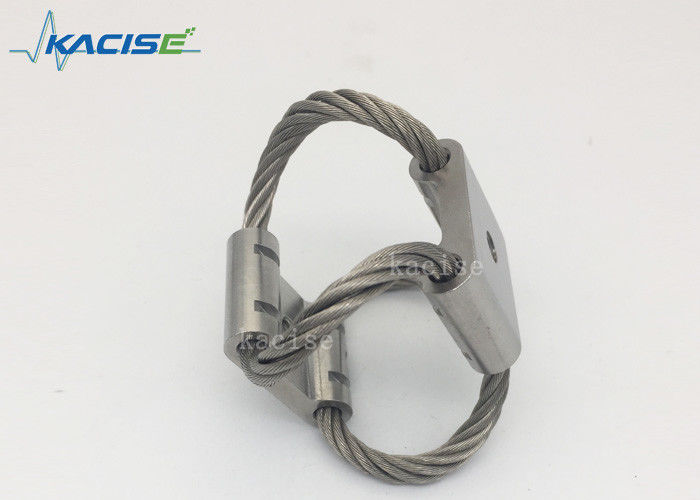

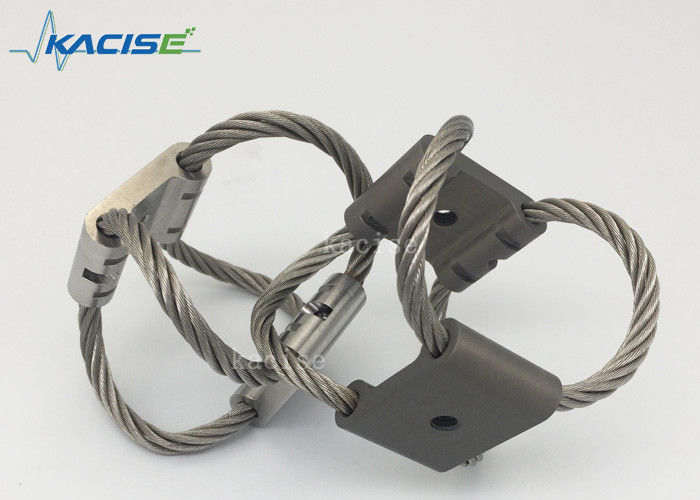

Compact Wire Rope Isolators Helical Cable Isolators
For the best in vibration isolation capabilities, choose GX Compact Wire Rope Isolators. Smaller than
traditional wire ropes, these unique isolators provide cost-effective, simultaneous shock and vibration attenuation where package space is at a premium.
GX Compact Wire Rope Isolators feature an easy, single-point installation, which allows them to be installed in virtually any application. Their small size also permits the isolation of individual system components, makingthem ideal for use in sensitive equipment and electronics. Just as with our standard GX Wire Rope Isolators, GX Compact Wire Rope Isolators feature a patented, all-metal design and components that ensure maximum reliability, regardless of temperature or substrate requirement, and that can help meet MILSPECS similar to those of our Wire Rope Isolator series. Please refer to our “Compact Wire Rope Isolator Sizing Information”
If your application is outside the standard Compact Wire Rope Isolator product range, please consult the standard Wire Rope Isolator or HERM portions of this catalog. If a standard solution is still not available, GX engineers can design an isolator to suit your specifications.
Operating range
| Typical applications Compact Wire Rope Isolator | Other Applications |
| CD-ROM drive | Audio / Video Equipment |
| Laboratory Centrifuges | Dining car |
| Computer hardware | Avionics |
| Medical | Medical equipment |
| ventilation | Sensitive electronic equipment |
Table 2 GR1 45°Compression/Roll Load
Model | Max Static Load(N) | Max Deflection (mm) | Kv(Vibration) (KN/m) | Ka(Shock) (KN/m) |
GR1-3.3-A |
1.6 |
8.6 |
2.1 |
0.8 |
GR1-2.4D-A |
1.1 |
10.9 |
1.5 |
0.4 |
GR1-1.8D-A |
0.8 |
14.7 |
0.9 |
0.3 |
GR1-1.3D-A |
0.5 |
18.3 |
0.5 |
0.1 |
1:Customize according to your special demand.
2: Various style for each products and completely series products.
3: Large stock for fast shipping.
4: High quality with competitive price
5: Sample order & small quantity order is ok
6: Provide free products information.
7: Reliable quality assured and active after-sell service
