Cable Wire GR1 Small Stainless Steel Shock Absorber Durable HVAC Systems

Cable Wire GR1 Small Stainless Steel Shock Absorber Durable HVAC Systems

  • Cable Wire GR1 Small Stainless Steel Shock Absorber Durable HVAC Systems
  • Cable Wire GR1 Small Stainless Steel Shock Absorber Durable HVAC Systems
Cable Wire GR1 Small Stainless Steel Shock Absorber Durable HVAC Systems
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: ISO9001:2008
Model Number: GR2
Payment & Shipping Terms:
Minimum Order Quantity: 1ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 10000 Pieces per Week
Contact Now
Detailed Product Description
Function: Return Air Working Temperature: -55 ~ +120
Usage: Industrial Machinery Shock Resistance: 20g/11ms
Relative Product: Backdraft Damper Type: HVAC Systems
Feature: Durable
High Light:

wire rope shock absorber

,

cable shock absorber

GR1 cable wire small shock absorber
Introduction to shork absorbers
At present, the common wire rope isolator has spiral, arch and ring, and so on. But either way, they are made of stainless steel wire ropes wound or bent. Their common advantages are that the equipment has a three-way protection effect, can work reliably in high temperature and harsh environment, has a wide bearing range, unlimited storage and service life. Wire rope isolators have good durability and fatigue. They have conducted seven million tests for 150 hours at 13Hz and 1.5mm amplitude on a 2.4mm wire isolator, and the results are safe and sound. They also input 25g to a vibration isolator with a rope diameter of 1.5mm, and carry out sweep frequency vibration test up to 10kHz. The vibration isolation effect is 95%, which proves that the rope isolator can isolate small amplitude and structural noise.

Product brief introduction
If you need to build a drone camera platform, or have vibration camera environment, our GR1 series wire shock absorber is your best choice.
GR1 series UAV photography vibration isolator is a kind of photography vibration isolator specially designed for vibration environment, which is used to absorb the vibration of the surrounding environment, making the shooting more stable.

Cable Wire GR1 Small Stainless Steel Shock Absorber Durable HVAC Systems 0
There are 4 models included in the GR1 series, which has the max static load from 1.3N (0.13kg) to 3.3N (0.34kg).

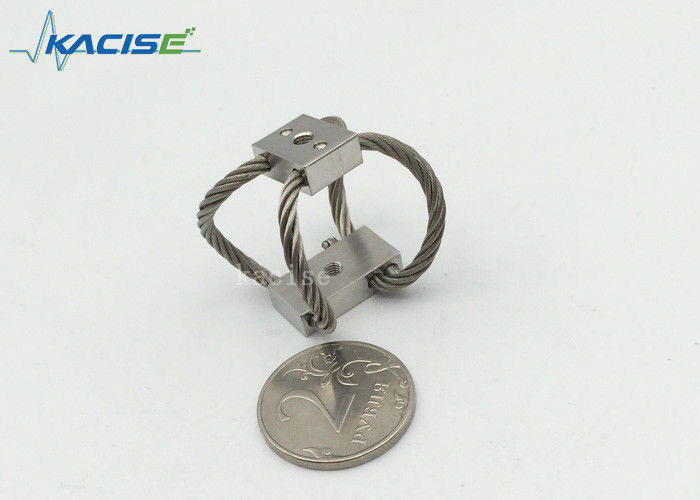

The GR1 Series compact wire rope isolators is made by the 1.2mm diameter stainless steel wire rope winded in the two mounting bars, which can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.
Nowadays, the GR1 series isolators are used widely in the field of photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.
Cable Wire GR1 Small Stainless Steel Shock Absorber Durable HVAC Systems 1


Options
  • Iridited aluminum bars are standard; however, other materials and finishes can be used.
  • Variations in cable configuration are available if the standard is not suitable.



Dimension Parameter Table




Model

Height±

1.5(mm)

Width

(mm)

Weight
(kg)

Mounting

Options

Thru
Hole(mm)

Thread

(mm)

C’sink



GR1-3.3-A


17


19



0.05






A,B,C, D,E,S







φ3.3







M3x0.5






90



GR1-2.4D-A



19



20



0.05



GR1-1.8D-A



23



23



0.05



GR1-1.3D-A



26


26



0.05


Applications:

Helical isolators protect a broad range of loads:

  • Very fragile (electronic equipment, computer hardware, optical devices).
  • Highly substantial (heavy engines, machinery––during transit or while in operation, even in a moving vehicle).
