Place of Origin: | China |
Brand Name: | KACISE |
Certification: | ISO / CE |
Model Number: | GXPS606 |
Minimum Order Quantity: | 0-100 |
---|---|
Price: | Negotiable |
Packaging Details: | Carton / Wooden box |
Delivery Time: | 7 Working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500pcs/ month |
Level Measurement Range: | 0~200 M | Volume Measurement Range: | 0~10^5 M³ |
---|---|---|---|
Level Measurement Accuracy: | 1% | Operating Temperature: | -40°C~85°C |
Compensation Temperature: | -10°C~70°C | Power Supply: | 1.5-5.5V@150mA Battery / 7-24VDC |
Communication: | Lora Wireless Transmission, 868MHz/AU 915MHz/433MHz | Protection Level: | IP68 |
Applicable Medium: | All Corrosive Media Compatible With 1Cr18Ni9Ti And 316L | Applicable Tank: | Cuboids, Cylinders, Ellipsoidal Columns |
High Light: | ultrasonic level transmitter,ultrasonic liquid level sensor |

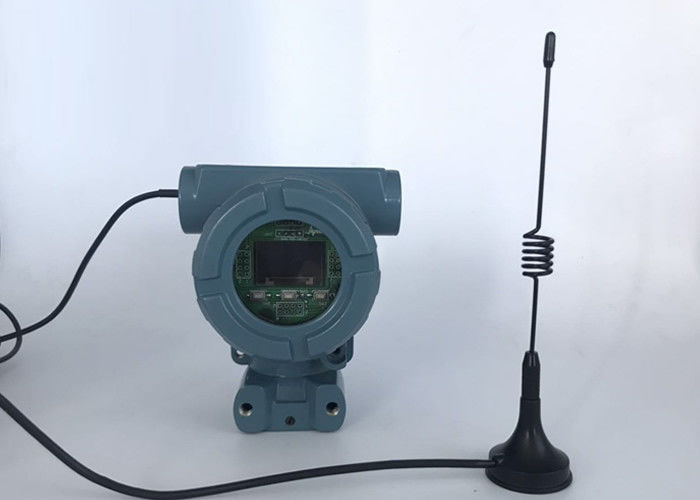

ultrasonic fluid level sensor Lora Wireless transmission
1.Product Description
Based on the principle that the measured hydrostatic pressure is proportional to the height of the liquid, the plunge-type liquid level meter is made of advanced isolated diffused silicon sensitive element or ceramic capacitive pressure sensitive sensor. The static pressure is converted into electrical signal after temperature compensation and linear correction. Converted into a standard electrical signal (generally 4 ~ 20mA/1 ~ 5VDC) a measurement of the level of the pressure sensor, can also be called "static pressure level meter, level transmitter, level sensor, water level sensor".

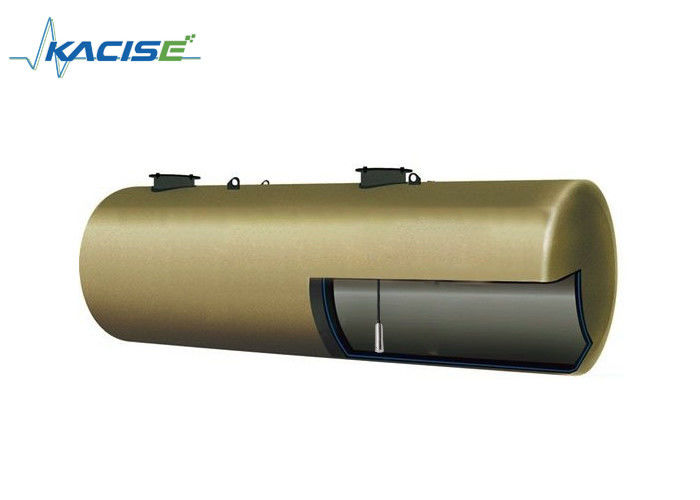

GXPS606 LoRa Wireless Transmission Liquid Volume Meter,Based on the principle that the measured hydrostatic pressure is proportional to the height of the liquid, the level sensor can be accurately placed in the container to measure the height from the end of the level gauge to the water surface, depending on the external structure, size and liquid of the container being tested. Density, calculate and display the volume or weight of the liquid in the container and display it on the display by wireless transmission.Input type liquid level gauge is widely used in urban water supply and drainage, sewage treatment, groundwater, reservoir, river, ocean and other water level monitoring fields.
2.Feature
Good stability and high precision;
Easy to install and use;
Solid structure, no moving parts, high reliability, long service life;
From water, oil to paste with high viscosity, high-precision measurement can be carried out, which is not affected by foaming, deposition and electrical properties of the measured medium;
Wide range of temperature compensation;
Low power consumption, can be maintained for 3 years after installing the battery
3.Parameter
Level measurement range | 0~200 m |
Volume measurement range | 0~10^5 m³ |
Level measurement accuracy |
0.5% |
Volume measurement accuracy |
1% |
Operating temperature |
40°C~85°C |
Compensation temperature |
-10°C~70°C |
Power supply | 1.5-5.5V@150mA battery / 7-24VDC |
Communication |
Lora Wireless transmission, 868MHz/AU 915MHz/433MHz |
Protection level |
IP65 |
Applicable medium | All corrosive media compatible with 1Cr18Ni9Ti and 316L |
Applicable tank | cuboids, cylinders, ellipsoidal columns |
Weight |
2.5kg |
4.Installation
