| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | Intrinsically safe mode, insulation explosion proof, CE |
| Model Number: | GXPS420 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 1000 Pieces per Week |
| Accuracy: | 0.25%F.S, 0.5%F.S(MARS Portfolio For High Accuracy) | Compensation Temperature: | -10°C~70°C |
|---|---|---|---|
| Output Signal: | 4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc | Power Supply: | 10~30VDC, 8~24Vdc/ac, 11~30Vdc/ac, |
| Pressure Range: | 0~1...500mH2O | Secondary Containment: | 3 Times Rated Pressure |
| Operating Temperature: | -20°C~100°C (-20°C~120°C Available) | ||
| High Light: | ultrasonic level transmitter,ultrasonic liquid level sensor |
||
1. Product Description

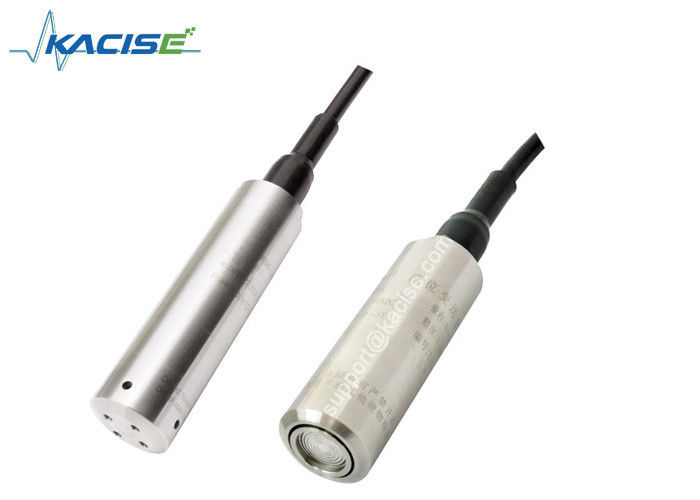

The GXPS420 Series pressure transmitter is a highly reliable, high stability, high precision,
high-temperature liquid level transmitter. Mainly used for the measurement of high temperature
fluid level. This product uses 1Cr18Ni9Ti stainless steel structure, import the internationally
famous brand of diffusion of oil-filled pressure core body , dedicated to zoom in and V / I
transmitter conversion circuit, and can facilitate to calibrate its zero and full scale.
According to different use of site configure wear, oil, acid and alkali resistant, high strength special
breathable cable. Two-wire system circulation output leads non-polarity, three-wire voltage output for
AC and DC. The security proof, isolation, explosion-proof certification and CE certification.
2. Application Field
3.Parameter
| Spec. | Value | ||
| Pressure range |
0~1….500mH2O; 9.8KPa…4900KPa 0.09bar…49bar; 0.09atm…48atm 1.4psi… 711psi; 2.8inchHg…1400inchHg |
||
| Overload pressure | 1.5 times nominal pressure | ||
| Secondary Containment | 3 times nominal pressure | ||
| Accuracy | 0.25%F.S, 0.5%F.S(MARS portfolio for high accuracy) | ||
| Stability | Typical value 0.15%F.S, Max. value: 0.25%F.S | ||
| Operating temperature | -20°C~100°C (-20°C~120°C available) | ||
| Compensated Temperature Range | -10°C~70°C | ||
| Medium Compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L | ||
| Electrical properties | 2 wires | 3 wires | |
| Output signal | 4~20mA | 0/1~5V | 0~10V |
| Power supplier | 10~30Vdc | 8~24Vdc/ac | 11~30Vdc/ac |
| Load resistance | (U-10)/0.02(Ω) | >100kΩ | |
| Minimum isolation between case & terminations | >100M Ω@50V | ||
| Surge immunity | 500V@60 second | ||
| Display panel | 5th grade sealing , IP68 | ||
| Pressure port | T=submersible F= split style | ||
| Response time | 10ms | ||
| Shock and vibration | 10g/5~2000Hz, axes X/Y/Z 20g sine 11ms | ||
| Certificate | Intrinsically safe mode, insulation explosion proof, CE | ||
| EMI/ EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | ||
| lightning protection | conduction of air pressure 8000V, housing, conduction of cable pressure 4000V | ||
4. Feature
Against severe electromagnetic interference
