Place of Origin: | China (Mainland) |
Brand Name: | Kacise |
Certification: | certificate of explosion-proof, |
Model Number: | KUM-A |
Minimum Order Quantity: | 0-100 |
---|---|
Price: | USD157 to USD660 per pc |
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces per Week |
Product Type: | Integrated | Power Supply: | 24 VDC Optional: 220V AC+15% 50Hz |
---|---|---|---|
Display: | English Led Display | Cable Probe: | No |
Digital Output: | RS485 | Resolution: | 3mm Or 0.1% |

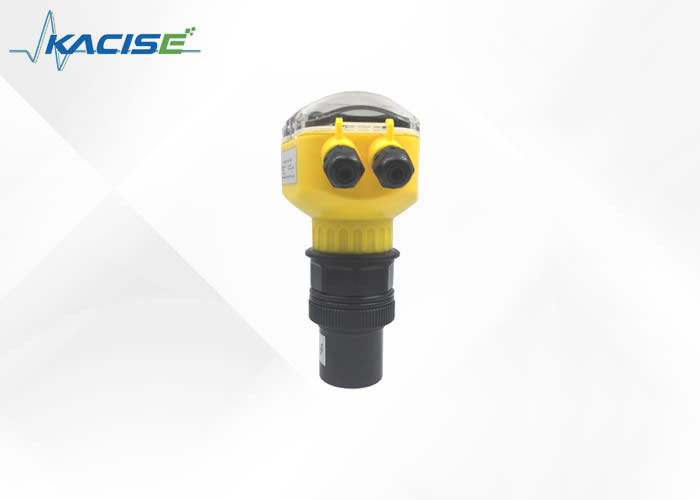

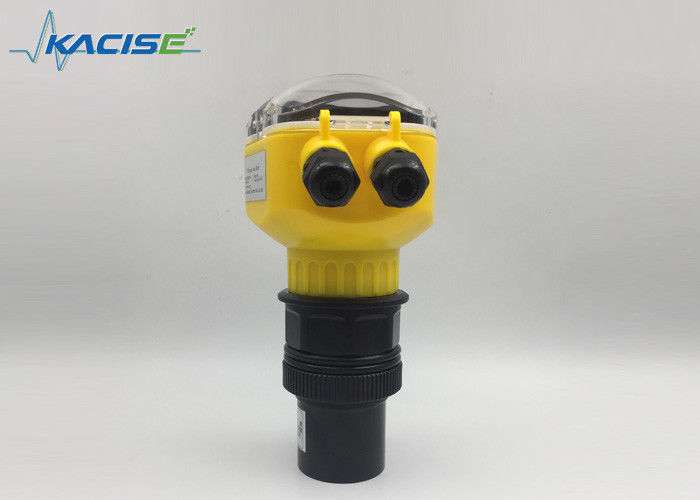

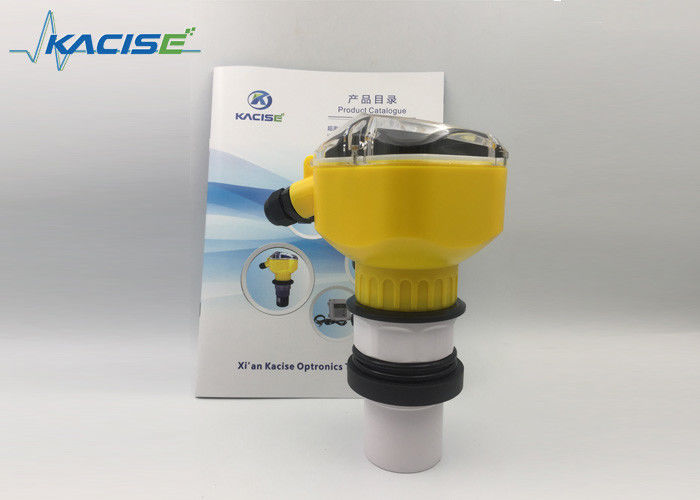

Apply: | Water Treatment | Product Name: | Integrated Type KUM-A Ultrasonic Level Meter Used In Water Treatment Of High Quality |
High Light: | ultrasonic water flow meter,ultrasonic btu meter |
Description
Ultrasonic level gauge is a sensor instrument controlled by microprocessor. It measures the position of liquid by the time from sending ultrasonic wave to receiving ultrasonic wave. It is a non-contact measurement with almost no restrictions on the medium. It can be widely used for measuring the height of liquid and solid materials.
KUM-A type ultrasonic level gauge is a small size, light weight, affordable, high reliability, high precision, convenient installation of non-contact cost-effective liquid level gauge. Using non-contact measurement, there is little requirement on the medium. The upper limit node and lower limit node can be set at will as well as the online output adjustment, optional analog quantity, RS485 output, generally used for sewage measurement, lake water level, acid and alkali level, river water level, chemical level, material level and other liquid and solid measurement.
Debug
Because the instrument installation environment is different. Therefore, the ultrasonic level meter must know the basic situation of the measuring environment before working, such as: measuring range, zero, full range and field conditions and so on. Therefore, the instrument must be set before measurement.
Field condition
In any of the following cases, note that:
Liquid/solid with foam
There are strong voltage, strong current and strong electromagnetic interference around, try to avoid high voltage, high current and strong electromagnetic interference
The wind was strong and the sun was blazing
Strong vibration
Volatile liquid and a lot of water vapor on the site
Crystalline liquid
Encounter the above field environment to carefully choose to use, the numerical accuracy of the measurement will decline, the data may be unstable, generally do not recommend the use of ultrasonic level gauge measurement.
Technical Features:
Technical Specifications:
Specs | Value |
Pressure Voltage | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m |
Accuracy | 0.5%, 1.0% |
Display | LCD |
Ambient Temperature | Display instrument-20~+60℃ transducer-20~+80℃ |
Medium | liquid and solid |
Analog Output | 4-20mA |
Digital Output | RS485, RS232 (both are optional) |
Power Supply | 24Vdc |
Protection Grade | Display instrument IP65,transducer IP68 |
Probe Type | PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy |
Structure:
Model Selection:
KUM-A | ||||||
Measurement Range | ||||||
A | 5m | |||||
B | 10m | |||||
C | 15m | |||||
D | 20m | |||||
E | 30m | |||||
F | 40m | |||||
G | 50m | |||||
H | 60m | |||||
Output Signal | ||||||
A | 4-20mA | |||||
Accuracy | ||||||
0.5 | 0.5% | |||||
1.0 | 1% | |||||
Power Supply | ||||||
A | 24Vdc | |||||
B | 11~30Vdc | |||||
Probe Type | ||||||
A | PVDF | |||||
B | Aluminum alloy | |||||
C | ABS | |||||
D | Stainless steel 316L | |||||
E | Teflon | |||||
F | Titanium alloy |
Applications and Installations:
