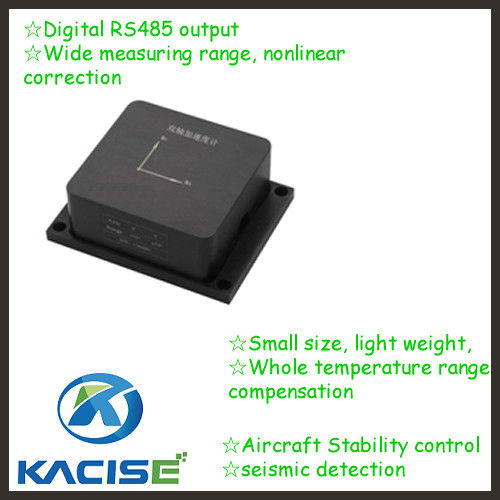

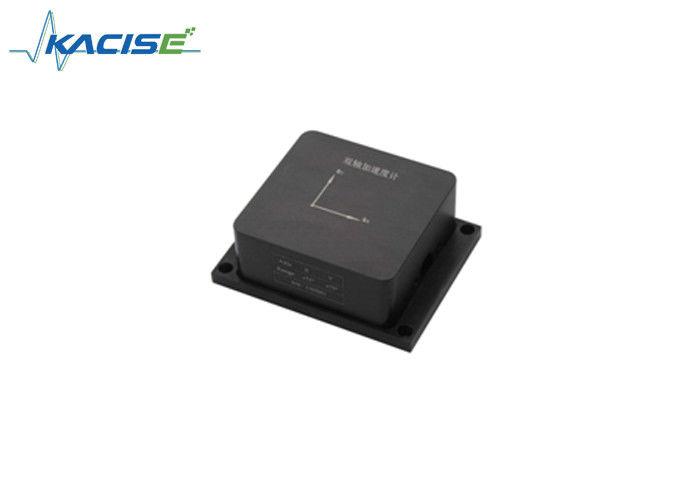

Bioaxial MEMS Capacitive Accelerometer Sensors Impact Resistance Small Size

Bioaxial MEMS Capacitive Accelerometer Sensors Impact Resistance Small Size

  • Bioaxial MEMS Capacitive Accelerometer Sensors Impact Resistance Small Size
  • Bioaxial MEMS Capacitive Accelerometer Sensors Impact Resistance Small Size
Bioaxial MEMS Capacitive Accelerometer Sensors Impact Resistance Small Size
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: K-2JSJ-100
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD200 to USD800 per pc
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Name: Accelerometer Axial Direction: X,Y
Range: ±10g Input Voltage: 6~8 VDC
Type: K-2JSJ-100
High Light:

linear acceleration sensor

,

triaxial acceleration sensor

Industrial Bioaxial Accelerometer K-2JSJ-100 MEMS Capacitive Accelerometer Sensors

Features

☆Digital RS485 output

☆Wide measuring range, nonlinear correction

☆Small size, light weight,

☆Whole temperature range compensation

☆impact resistance, vibration performance

Application

☆Aircraft Stability control

☆seismic detection

Technical Specifications

Type K-2JSJ-100
Electric character
Input voltage 6~8 VDC
Input current ≤60 mA
Output Mode RS 485
Baud Rate 115200 bps
Output Data Rate 200 Hz
Output Data format 16-bit twos complement
Performance index
Axial direction X Y
Range ±10 g
Bandwidth ≥50 Hz
Resolution (°/s) 0.005 g
Nonlinear (%F.S.) ≤ 0.5% F.S.
Bias ≤ 0.05 g
Start-up time ≤1s
Environmental characteristics
Temperature (°C) -40℃~+70℃
Storage Temperature -40℃~+125℃
Resistant to shock 2000g
Physical Characteristics
Weight (g) 80g
Dimensions 48×38×18 mm

Note: Range can choose ±1~±100g

Bandwidth can choose ≤400 Hz



Dimensions

Bioaxial MEMS Capacitive Accelerometer Sensors Impact Resistance Small Size 0Bioaxial MEMS Capacitive Accelerometer Sensors Impact Resistance Small Size 1
