| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | Intrinsically safe mode E, RoHS; CE |
| Model Number: | CLS-X078 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 90-110 |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 10 pieces per week |
| Max Pressure Range: | 5.0Bar(72psi) | Weight: | 0.15kg Typical(dependent On Thread Size) |
|---|---|---|---|
| Body: | Brass | Probe: | PTFE |
| Operating Temperature: | -40℃ To +130℃ | Storage Temperature: | -50℃ To +140℃ |
| Max. Load Current: | 1.0A(sink) Or 20mA(source) | Supply Voltage: | 9-32VDC |
| High Light: | high accuracy pressure sensor,piezoresistive pressure transmitter |
||
Introduction
Liquid level alarm switch is also called liquid level alarm, there are float level switch, water level controller, tuning fork level switch, RF admittance level switch, magnetic flap level switch and other different categories, In the food industry, chemical industry, petroleum industry, water treatment industry of liquid level measurement (beverage, jam, syrup, chemical reagents, solvents, crude oil, asphalt, wastewater, sewage and other liquid high and low position measurement) has a wide range of applications. Although the product is different, the way of measurement is different, but the same is through the alarm to control the water pump and other equipment to start or stop, to prevent liquid overflow or shortage.
GLSX078, a level alarm switch, is used to give an alarm signal when the liquid is below or above the preset level. It has a certain delay because it will only give an alarm after a few seconds of low or high level to eliminate false alarms caused by turbulence. CLSX078 has no moving parts inside and incorporates a delay to eliminate interference. This means that it is suitable for applications in vibration and liquid turbulence. Different threading options are available upon request.

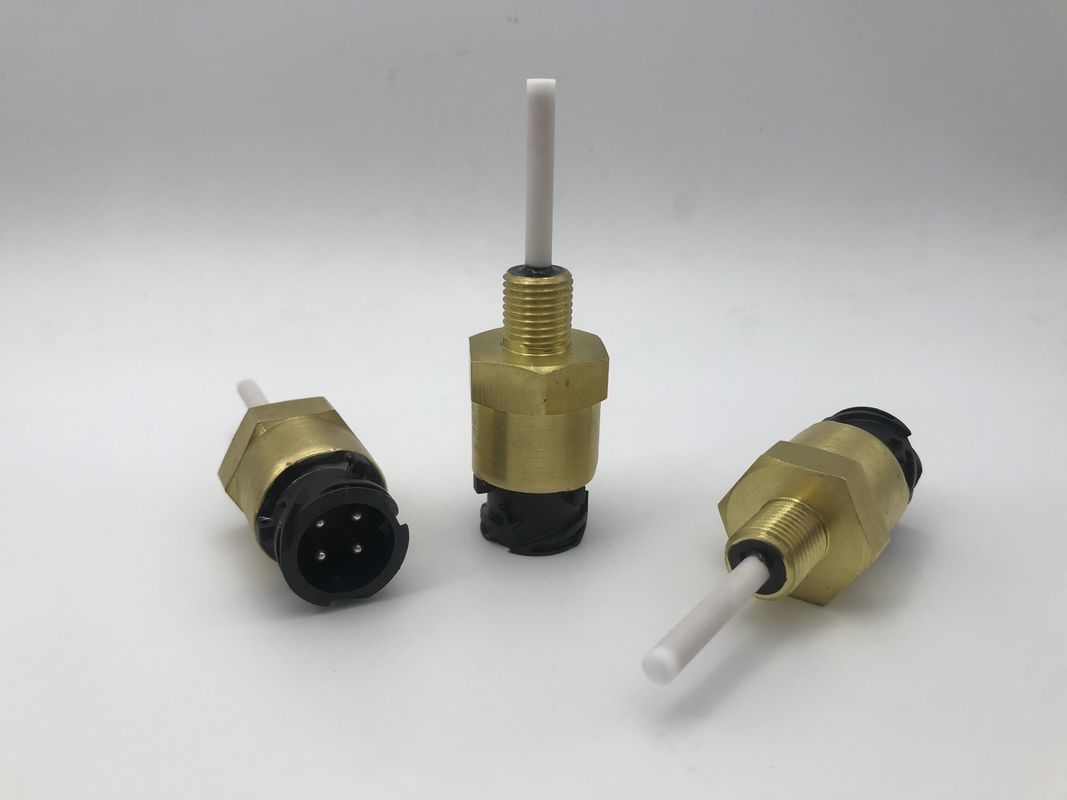

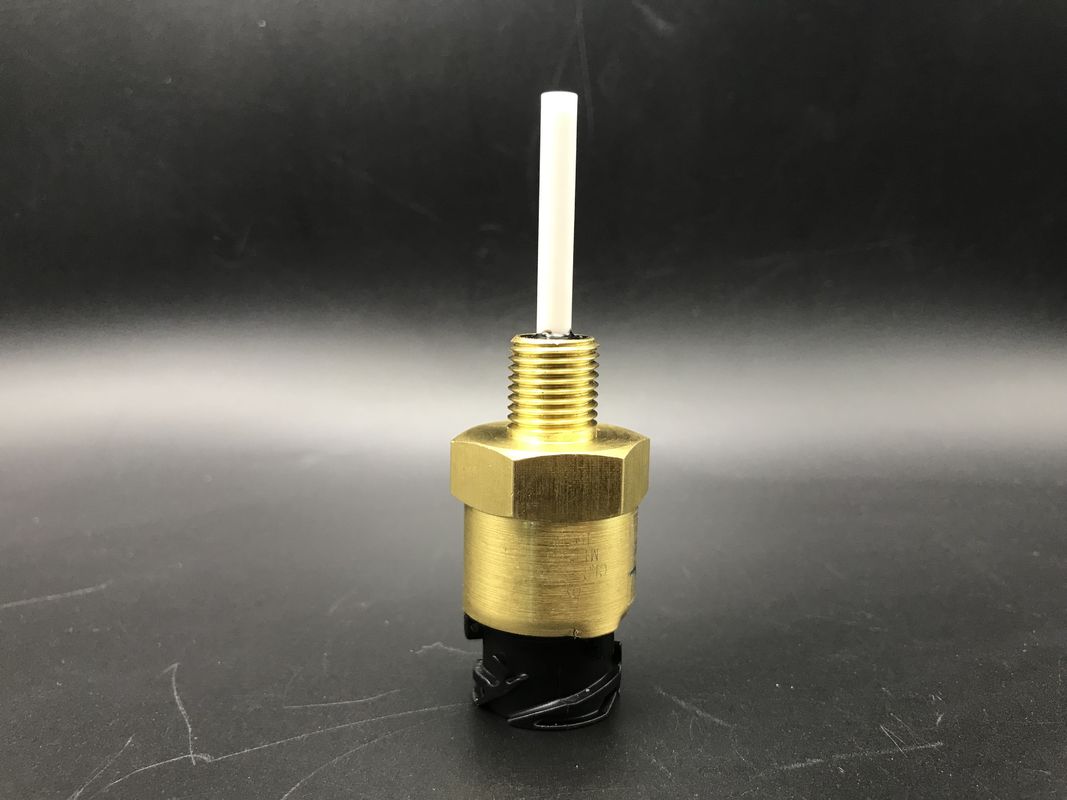

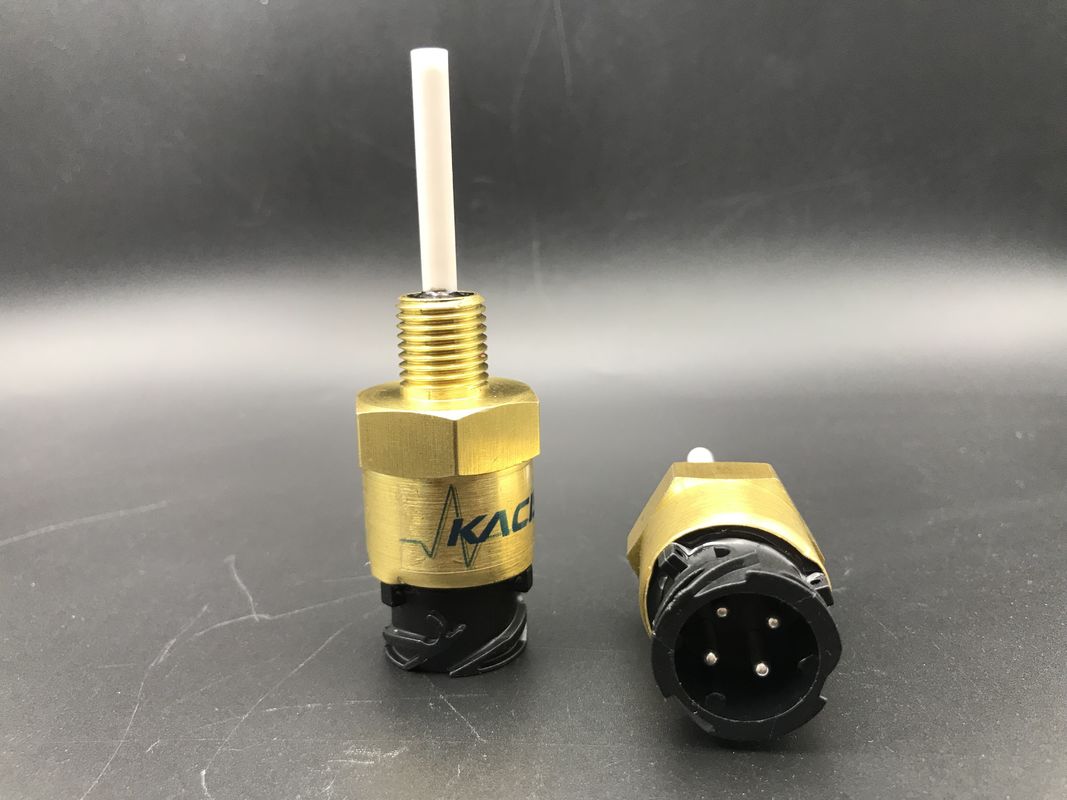

Capacitance Coolant Level Switch CLS-X078
Feature
Specification
| Spec. | Value |
| Max pressure range | 5.0Bar(72psi) |
| Weight | 0.15kg typical(dependent on thread size) |
| Body | Brass |
| Probe | PTFE |
| Terminals | Brass, Tin Plated |
| Operating temperature | -40℃ to +130℃ |
| Storage temperature | -50℃ to +140℃ |
| Max. load Current | 1.0A(sink) or 20mA(source) |
Ordering information
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
Q: What information need to be provided to choose a suitable level switch?
A: 1.Medium 2.Power supply 3.Output 4.Thread size 5.Alarm delay time 6.Output state
Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments. OEM & ODM service are available.
Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
Q: What is your payment terms?
A: For mass production order, it is 30% deposit in advance and 70% balance before shipment.
