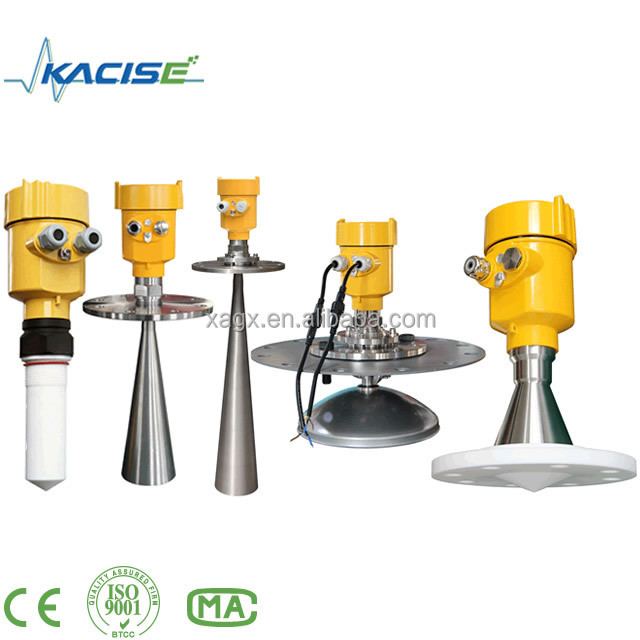

Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range

Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range

  • Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range
Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range
Product Details:
Place of Origin: CHINA
Brand Name: KACISE
Certification: CE
Model Number: KLD-2601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: 300-900
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Frequency: 26GHz Measuring Range: 10meters
Explosion-proof: Exia IIC T6 Ga/Exd Ia IIC T6 Gb Protection: IP67
Process Connection: Thread, Flange Accuracy: ±5mm
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

cost effective radar level measurement high frequency all kinds of corrosive liquid radar level meter



1.Product Overview

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.



  • Principle

Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).



Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range 0

  • The characteristics of 26G radar level meter:

1) Small antenna size, easy to install; Non-contact radar, no wear, no pollution.

2) Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.

3) Serious dust environment on the high level meter work has little effect.

4) A shorter wavelength, the reflection of solid surface inclination is better.

5) Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.

6) The measuring range is smaller, for a measurement will yield good results.

7) High signal-to-noise ratio, the level fluctuation state can obtain better performance.

8) High frequency, measurement of solid and low dielectric constant of the best choice.

2. Technical Specification and Model Selections:



Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range 1

Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range 2

Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range 3

Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range 4

Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range 5

Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range 6

3.The Electrical Connection

  • The power supply voltage:

(4~20)mA/HART (Two wire system)     The power supply and the output current signal sharing a two                                                                      core shield cable. The supply voltage range see technical data.                                                                  For intrinsically safe type must be a safety barrier between the                                                                    power supply and the  instrument.

(4~20)mA/HART(Four wire system)     Separate power supply and the current signal, respectively using                                                                a two-core shielded cable. The supply  voltage range see                                                                            technical data.

RS485 / Modbus                                   Power supply and Modbus signal line separate drespectively                                                                      using a two-core shielded cable, the power supply voltage range                                                                see technical data.

Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range 7

4. Applications and Cases:



Radar Level Measurement Fluid Level Meter High Frequency 10 Meters Measuring Range 8
