RS485 Output Water Turbidity Sensor 0.1NTU Resolution For Aquaculture Industry

RS485 Output Water Turbidity Sensor 0.1NTU Resolution For Aquaculture Industry

  • RS485 Output Water Turbidity Sensor 0.1NTU Resolution For Aquaculture Industry
  • RS485 Output Water Turbidity Sensor 0.1NTU Resolution For Aquaculture Industry
RS485 Output Water Turbidity Sensor 0.1NTU Resolution For Aquaculture Industry
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: USD600-USD1100
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0-1000NTU Principle: Principle 90° Scattered Light
Output: RS485 Resolution: 0.1NTU
Accurate: <5% Or 0.3NTU(which Is Bigger) Power Supply: DC 5~12V,
High Light:

water turbidity sensor

,

oil in water sensor

Turbidity Sensor Non-self-cleanning Fiber turbidity sensor Used in Water Quality Measurement or Aquaculture Industry



1. Description



Every year, a significant volume of untreated sewage is released into lakes and rivers. In response to the increasingly challenging water environment and the growing expectations for improved quality of life, people are raising their standards for water quality.

Turbidity in water is a result of suspended particles that scatter incoming light diffusely, typically measured using scattered light at a 90-degree angle as a test signal. The relationship between scattered light and turbidity follows a multi-stage linear pattern, necessitating multi-point calibration for the sensor. Additionally, changes in the intensity of the light source and temperature can impact the accuracy of measurement results.



Through extensive experimental studies and theoretical calculations, it has been determined that the ratio of scattered light to transmitted light maintains a linear relationship with turbidity. The sensor, therefore, utilizes this ratio instead of simple scattered light to measure turbidity. This approach enhances sensor accuracy, reliability, simplifies maintenance, and boosts pollution resistance.



2. Feature

This is a digital sensor with RS-485 output and MODBUS support. It comes with an automatic cleaning brush to prevent pollution and eliminate air bubbles. It has a strong anti-interference ability, and its design ensures no impact from ambient light and chromaticity. The sensor operates on the principle of 90° scattered light and incorporates advanced fiber technology for improved repeatability.



For wiring, after completion, a careful check is essential to avoid any incorrect connections before powering up. The cable is designed to withstand immersion in water, including seawater, for extended periods, and exposure to the air. It possesses corrosion resistance, with an outer diameter of Φ6 mm, and all interfaces are waterproof.



3.Technical Specifications

product

Fiber turbidity sensor

Self-cleaning turbidity sensor

Principle

90° scattered light

Measuring range

0-1000NTU

Resolution

0.1NTU

accurate

<5% or 0.3NTU(which is bigger)

Protection level

IP68

temperature range

0 ~ 50℃

Output

Support RS-485, MODBUS protocol

Probe cable length

10 m, customizable 5 m, 15 m and 30 m cable

Power supply

DC 5~12V, current <50mA

DC 5~12V, current <50mA (when not cleaned)

size

Φ22mm*120mm

Φ33mm*156mm

Self-cleaning system

No

Yes




4. Application

Kacise Sensing apply fiber technology in its turbidity sensor, enhancing its repeatability and stability. The sensor is not affected by ambient light coordination. Its automatic cleaning brush efficiently removes air bubbles and minimizes the impact of contamination on measurements.

This design allows for prolonged online use, extended maintenance intervals, and improved overall stability.

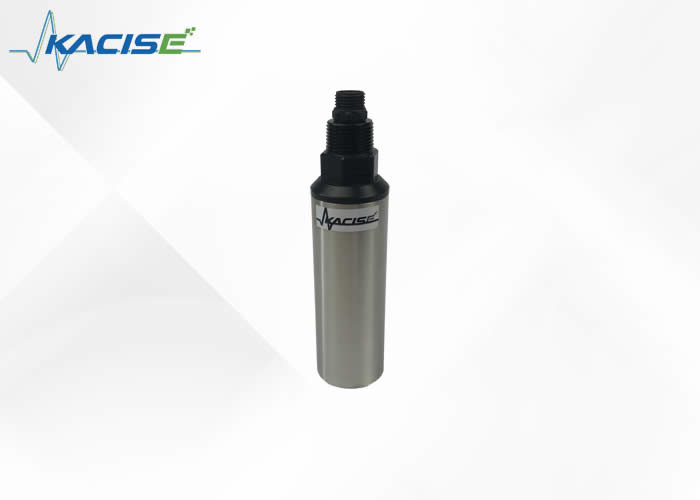

RS485 Output Water Turbidity Sensor 0.1NTU Resolution For Aquaculture Industry 0

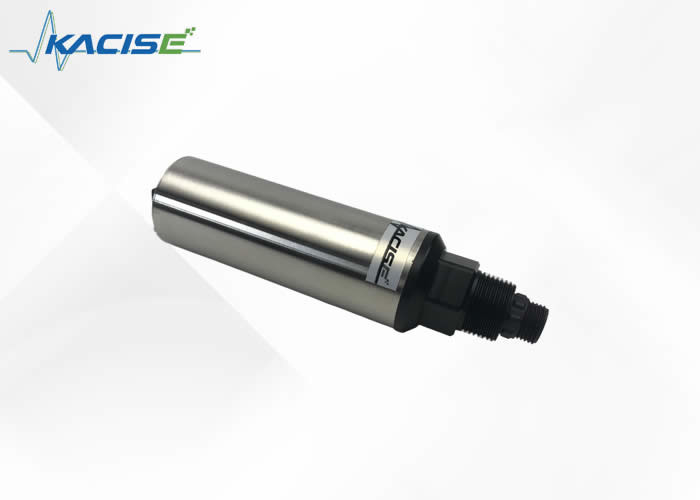

RS485 Output Water Turbidity Sensor 0.1NTU Resolution For Aquaculture Industry 1

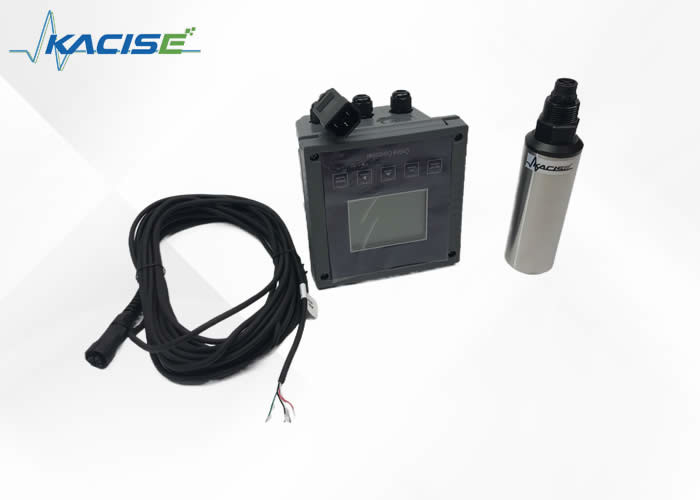

RS485 Output Water Turbidity Sensor 0.1NTU Resolution For Aquaculture Industry 2
