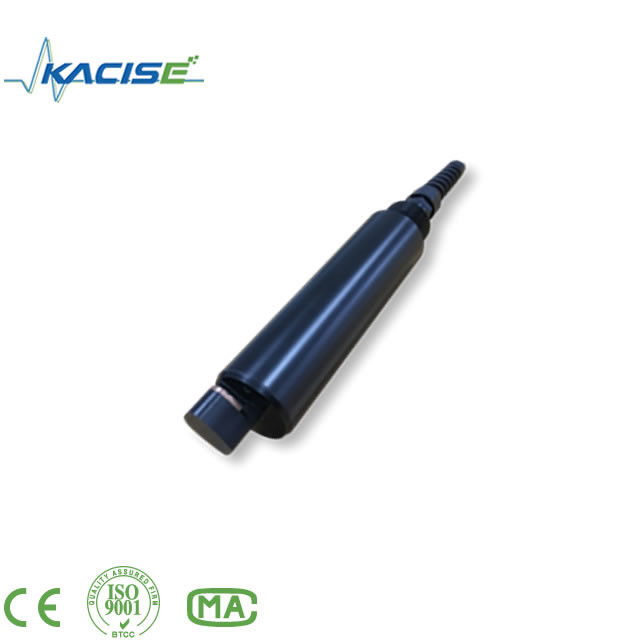

Optical Fiber Water Quality Sensor Automatic Cleaning Concentration Sensor

Optical Fiber Water Quality Sensor Automatic Cleaning Concentration Sensor

  • Optical Fiber Water Quality Sensor Automatic Cleaning Concentration Sensor
Optical Fiber Water Quality Sensor Automatic Cleaning Concentration Sensor
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 100
Contact Now
Detailed Product Description
Output: RS-485, MODBUS Protocol Power Supply:: DC 5~12V, Current <50mA
Range: 0-4000 Mg/L Accuracy: 3%F.S
Theory: Optical Fiber Principle: 135° Back Light
Protection Rate: IP68 Deepest Depth: Underwater 10 Meters
Temperature Range: 0 ~ 50℃ Size: Φ33mm*156mm
Casing Material: POM
High Light:

water turbidity sensor

,

oil in water sensor

KWS-910 Online Sludge Concentration Sensor

Product Description

1. Introduction

Kacise sludge concentration sensor adopts 135° back light principle, 880nm infrared LED light source, adopts unique adaptive software algorithm, which can effectively remove external light interference. Fiber-optic construction for excellent repeatability and stability. The use of an automatic cleaning brush eliminates air bubbles, reduces the effects of contamination on the measurement, and allows for longer maintenance intervals and excellent stability over long-term online use.



2. Feature

l Digital sensor, RS-485 output, support MODBUS

l With automatic cleaning brush to prevent contamination and eliminate air bubbles

l Compensate the color of the water to eliminate the interference of color on the measurement

l Fiber-optic structure, not affected by ambient light



3.Technical Specifications



Item Self-cleaning Sludge Concentration Sensor
Model KWS-910
Principle 135° back light
Measuring Range 0-4000 mg/L
Accuracy <3%
Protection Rate IP68
Deepest Depth underwater 10 meters
Temperature Range 0 ~ 50
Output support RS-485, MODBUS protocol
Power Supply DC 5~12V, current <50mA (when not clean)
Installation Input type
Size Φ33mm*156mm
Probe Cable Length 10 m, 5 m, 15 m and 30 m cable customizable
Self-Cleaning System Yes
Casing Material POM
Optical Window optical fiber
Application

4.Application Picture



Product Pictures

5.Production





Packaging & Shipping

6.Packaging







Feedback
