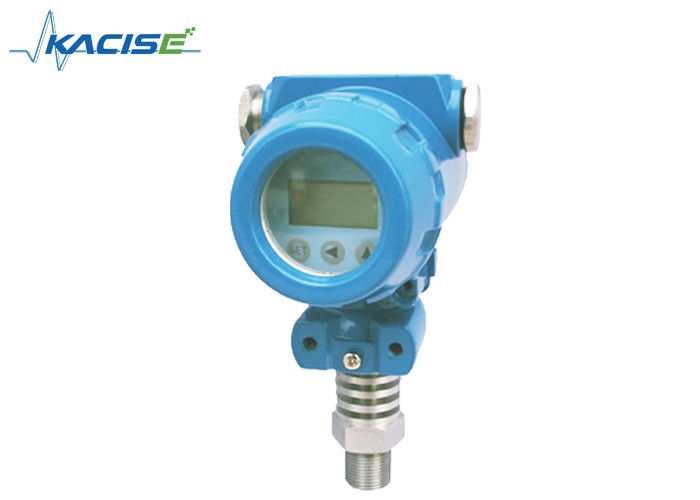

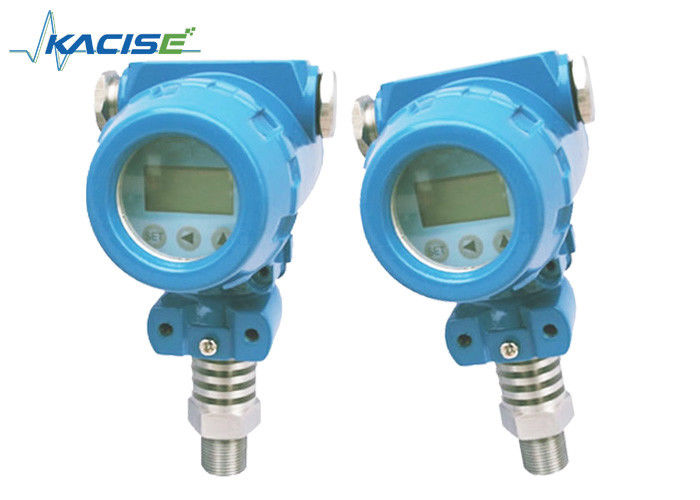

Piezoresistive Explosion Proof Pressure Transmitter Easily Calibrated 10ms Response Time

Piezoresistive Explosion Proof Pressure Transmitter Easily Calibrated 10ms Response Time

  • Piezoresistive Explosion Proof Pressure Transmitter Easily Calibrated 10ms Response Time
  • Piezoresistive Explosion Proof Pressure Transmitter Easily Calibrated 10ms Response Time
Piezoresistive Explosion Proof Pressure Transmitter Easily Calibrated 10ms Response Time
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: GXPS200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton/wooden case, or customers requests
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Pressure Range: 0~0.2MPa......60MPa
Accuracy: ±0.5%F.S Operating Temperature: -40°C~85°C
Compensation Temp.: -10°C~70°C Insulation: >100M Ω@50V
Response Time: 10ms Certificate Programs: Explosion Proof Type D, CE
High Light:

high accuracy pressure sensor

,

piezoresistive pressure transmitter

GXPS200 Piezoresistive Explosion-proof Pressure Transmitter



Piezoresistive Explosion Proof Pressure Transmitter Easily Calibrated 10ms Response Time 0





Description



Pressure transmitter is a kind of equipment which converts pressure into pneumatic signal or electric signal for control and remote transmission.

It can convert gas, liquid and other physical pressure parameters sensed by the load cell sensor into standard electrical signals (such as 4~20mADC, etc.), which can be used to supply secondary instruments such as alarm, recorder and regulator for measurement, indication and process adjustment.Pressure transmitter is one of the most commonly used sensors in industrial practice, which is widely used in various industrial automatic control environment, involving water conservancy and hydropower, railway traffic, intelligent buildings, production automatic control, aerospace, military, petrochemical, oil Wells, electric power, ships, machine tools, pipelines and other industries.



GXPS200 series pressure transmitters are widely used for pressure testing of liquids and gases, such as water, oil, slightly corrosive liquids, and various gases. The press core of the product is made of international famous brand, the lead is made of stainless steel, special V/I converter, zero and full range calibration is convenient. Through intrinsic safety certification, isolation and explosion-proof certification, CE certification. With buffer joint, can prevent water hammer and impact 5~10 times.



Feature
☆Accuracy: 0.5%F.S
☆Alarm device available
☆Anti pressure impact flexible coupling
☆Multi pressure range and output signal
☆Various connector and pressure tap
☆Non-polarity 2 line current output
☆Intrinsically safe explosion-proof
☆Isolation explosion protection
☆CE certificate



Application
☆Display indicator available
☆Constant pressure water supply system
☆Compressed natural gas
☆Four remote running water system
☆Central air-conditioning
☆Automatic Testing System
☆Oil well Real-time Management
☆Duck, tank pressure measurement
☆Heating boiler system



Electronic interface and signals definition



Piezoresistive Explosion Proof Pressure Transmitter Easily Calibrated 10ms Response Time 1



Piezoresistive Explosion Proof Pressure Transmitter Easily Calibrated 10ms Response Time 2Piezoresistive Explosion Proof Pressure Transmitter Easily Calibrated 10ms Response Time 3



Signal output
Two wire 4~20mA
Three wire 0~5V,0.5~4.5V,1~5V,0~10V(dc)
4~20mA,0~5mA,0~10mA, 0~20mA



 Piezoresistive Explosion Proof Pressure Transmitter Easily Calibrated 10ms Response Time 4



Parameter



Spec. Value
Pressure range

0~0.2MPa......60MPa

PSI: 0~20PSI…8700PSI

BAR : 2BAR….600BAR

MMH2O: 0~0.02mmHg…6mmHg

Atm: 0~1,97atm….590atm

InchHg: 0~59mmHg… 18k mmHg

Overload pressure 2times nominal value (2X)
Secondary containment 3times nominal value (3X)
Accuracy ±0.5%F.S(higher accuracy can choosePT300 or MARS)
Stability Typical value 0.25%F.S, Max. value: 0.4%F.S
Operating temperature -40°C~85°C
Compensation temp. -10°C~70°C
Medium All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance 2 line 3 line
Output signal 4~20mA 0~5V 1~5V 0.5~4.5V 0~10V
Power supply 10~30Vdc 8~30Vdc 5V(ratio) 11~30Vdc
Load resistance (U-10)/0.02(Ω) >20kΩ
Insulation >100M Ω@50V
Electric strength 500V@60 second
Vibration/Impact 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable 2×106pressure cycle @25℃
Display range -9999~99999@PT200C
Electrical connection Waterproof cable, protection gradeIP65
Pressure tap M20×1.5, G1/2, R1/4, NPT1/2
Pressure type Gauge ,S Response time: 10ms
Certificate Programs explosion proof type D, CE
EMC EMI : EN50081-1/-2; EMS: EN50082-2



Ordering information



GX-Type—Range—Output—Power—Pressure port – Connection – Cable length—Package
1.Type:PS200=conventional, PS200C=with display, PS200D=isolation explosion proof, PS200T=with cooling Ring
2.Range: 0~0.2…60MPa, 0~2bar…600bar
3.Output:: 4~20Ma, 0~5Vdc, 0.5~4.5Vdc, 1~5Vdc,0~10Vdc
4.Power: 5V, 24Vdc, 6~24Vdc, 10~30Vdc, 11~30Vdc
5.Pressure port: M20×1.5, G1/2, R1/2, NPT1/2
6.Connection: Wjc=waterproof cable outlet
7.Cable length: XXm=__ __meter
8.Package: Bb, Foam 1pc/box, or customized available
9.Case: A=PS200A (default), B=PS200B (thermostability type), C=PS200C
