| Place of Origin: | china |
| Brand Name: | Kacise |
| Certification: | ce |
| Model Number: | KWS400 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton or customers requests available |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Measuring Range: | 0~400ug/L | Resolution: | 0.1 µg/L |
|---|---|---|---|
| Accurate: | 1% | Output: | Support RS-485, MODBUS Protocol |
| Power Supply: | DC 5~12V, Current <50mA | Probe Cable Length: | 10 M, Customizable 5 M, 15 M And 30 M Cable |
| High Light: | water turbidity sensor,oil in water sensor |
||

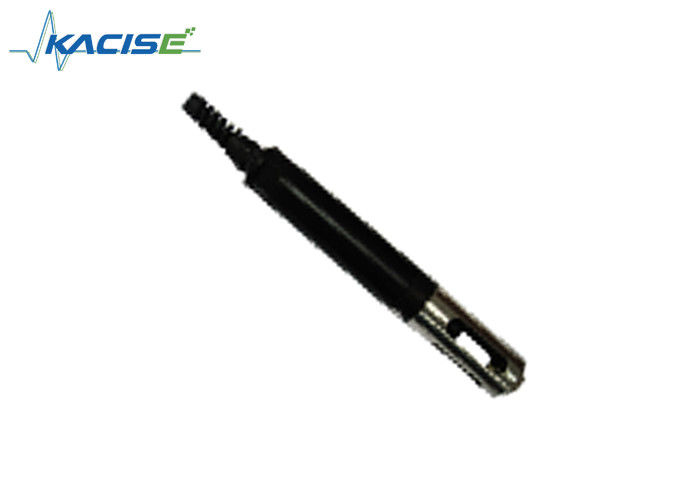

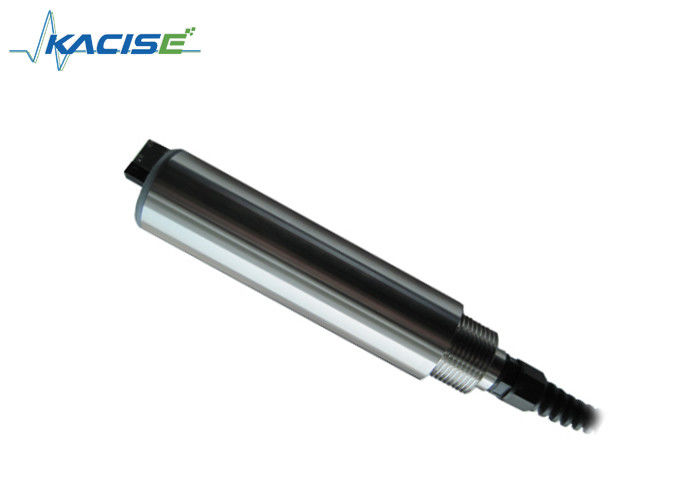

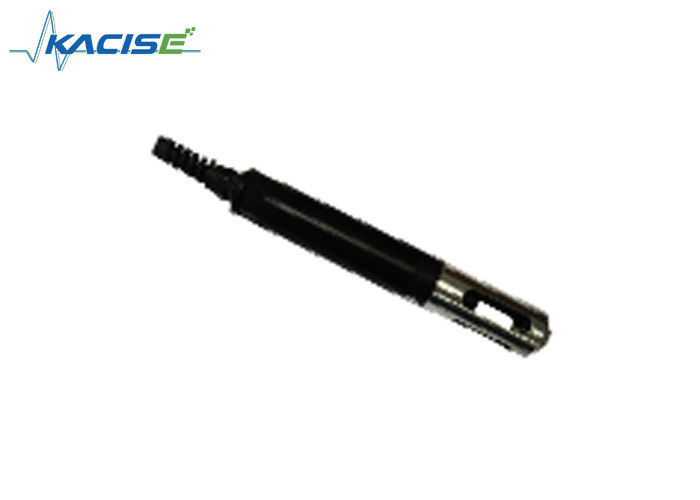

DIgital Water Quality Sensor Fiber Optic Chlorophyll Sensor Kws-400 Support Modbus Protocal
1. Applications
The chlorophyll fiber sensor operates on the fluorescence principle, employing a high-energy LED light source to illuminate the water body based on the spectral absorption characteristics of chlorophyll a. This illumination stimulates chlorophyll a in the water to emit fluorescence at a specific wavelength, enabling the measurement of chlorophyll a concentration.
The sensor's fiber structure exhibits outstanding repeatability and stability, remaining unaffected by ambient light. An automatic cleaning brush efficiently removes air bubbles, minimizing contamination impact on measurements. Its suitability for long-term online use, extended maintenance intervals, and enhanced stability make it a reliable tool for chlorophyll a concentration monitoring in aquatic environments.
2. Feature
Digital sensor, RS-485 output, support MODBUS
With automatic cleaning brush to prevent contamination and eliminate air bubbles
Direct measurement is easier than traditional analysis methods
Continuous online monitoring and real-time control of water quality
Integrated sensor field application example
3.Technical Specifications
| product |
Online Fiber optic chlorophyll sensor
|
||
| principle | Ultraviolet fluorescence method | ||
| Measuring range | 0~400ug/L | ||
| Resolution | 0.1 µg/L | ||
| accurate | 1% | ||
| Protection level | IP68 | ||
| Deepest depth | Underwater 60 meters | underwater 10 meters | |
| temperature range | 0 ~ 50℃ | ||
| Output | Support RS-485, MODBUS protocol | ||
| Power supply | DC 5~12V, current <50mA | ||
| size | Φ22mm*120mm | Φ33mm*156mm | |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | ||
| product material | POM | ||
| Self-cleaning system | exist | No | |
| Optical window | optical fiber | ||
Installation
Wiring and power supply
1. Do not use the sensor cable to lift the sensor! It is recommended to install a cable protection cover to ensure that the cable is powered and watertight.
2. Make sure the wiring sequence and power supply voltage are correct before powering on!
Sensor installation
1. The sensor is recommended to be installed vertically with the electrode measurement light window facing down, and the sensor should be avoided from hitting the wall or other water conservancy facilities caused by water flow. If the water flow is strong, please fix the sensor;
2. Considering the influence of water level, the sensor should be installed 30cm below the lowest water level, and ensure that the measurement window is more than 10cm away from the bottom or obstacles;
3. The sensor is installed in a position where there are no air bubbles in the water, as far away as possible from the aeration port.
