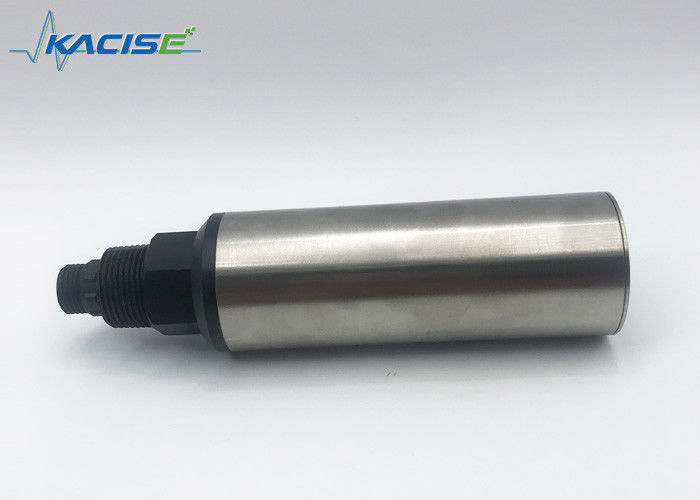

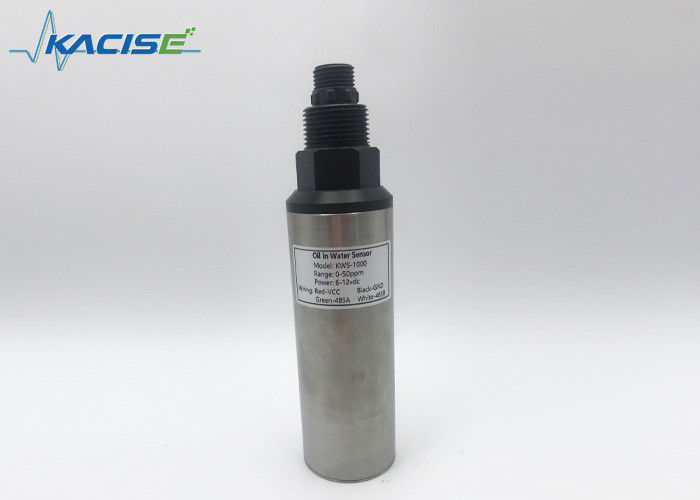

0.01ppm Resolution Digital Water Sensor IP68 Grade Submersible Installation

0.01ppm Resolution Digital Water Sensor IP68 Grade Submersible Installation

  • 0.01ppm Resolution Digital Water Sensor IP68 Grade Submersible Installation
  • 0.01ppm Resolution Digital Water Sensor IP68 Grade Submersible Installation
0.01ppm Resolution Digital Water Sensor IP68 Grade Submersible Installation
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: carton/wooden case, or customers requests
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0-50ppm Or 0-0.40FLU Principle: Fluorescence Method
Resolution: 0.01ppm Accuracy: ±3%F.S
Linearity: R2>0.999 IP Grade: IP68
Max. Depth: 10m Under Water The Detection Limit: According To Actual Oil Sample
High Light:

water turbidity sensor

,

oil in water sensor

                                     HACH KWS-1000 Online Oil-In-Water Sensor







Introduction
Kacise online water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker, and can be monitored online in real time. The sensor has better repeatability and stability. Optional with an automatic cleaning brush, it eliminates air bubbles, reduces the effects of contamination on the measurement, makes the maintenance cycle longer, and maintains excellent stability for long-term online use. It can play an early warning role on oil pollution in water.



Principe
The oil content in the water body was monitored by ultraviolet fluorescence method, and the oil concentration in the water body was quantitatively analyzed according to the fluorescence intensity of the oil and its aromatic hydrocarbon compound and the conjugated double bond compound absorbing ultraviolet light. The aromatic hydrocarbons in the petroleum form fluorescence under the excitation of ultraviolet light, and the value of the oil in the water is calculated according to the intensity of the fluorescence.





Feature
Digital sensor, RS-485 output, support MODBUS
Optional automatic cleaning brush to eliminate the impact of oil on the measurement
Eliminate the impact of ambient light on measurements with unique optical and electronic filtering techniques
It is not affected by suspended solids in water



Technical Specifications

Model KWS-1000
Measuring Range 0-50ppm or 0-0.40FLU
Principle fluorescence method
Resolution 0.01ppm
Accuracy ±3%F.S
The detection limit According to actual oil sample
Linearity R2>0.999
IP Grade IP68
Max. depth 10m under water





Temperature Range 0~50℃
Output RS485, Modbus
Installation Submersible
Dimension Φ45*175.8mm
Power Supply DC5-12V, current<50mA (when not cleaning)
Cable Length Standard 10m, customizable
Casing Material 316L (titanium alloy customizable)
Self-cleaning Function Optional



Dimensions

0.01ppm Resolution Digital Water Sensor IP68 Grade Submersible Installation 0





0.01ppm Resolution Digital Water Sensor IP68 Grade Submersible Installation 1
