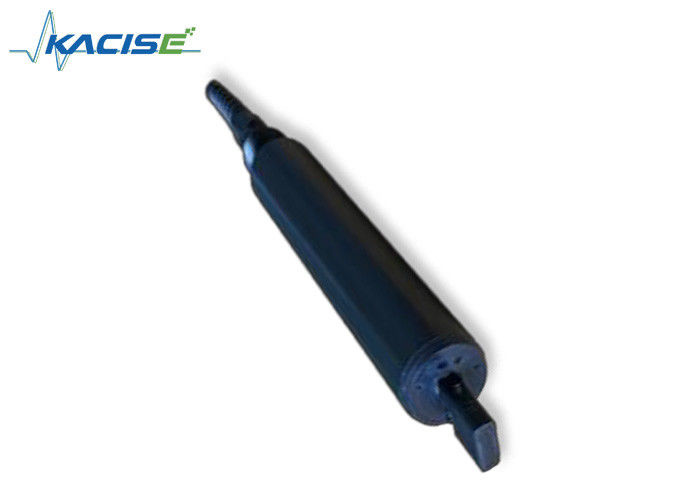

0.1NTU Resolution Water Turbidity Sensor Optical Fiber Strong Anti Interference Ability

0.1NTU Resolution Water Turbidity Sensor Optical Fiber Strong Anti Interference Ability

  • 0.1NTU Resolution Water Turbidity Sensor Optical Fiber Strong Anti Interference Ability
  • 0.1NTU Resolution Water Turbidity Sensor Optical Fiber Strong Anti Interference Ability
0.1NTU Resolution Water Turbidity Sensor Optical Fiber Strong Anti Interference Ability
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100
Contact Now
Detailed Product Description
Principle: 90° Scattered Light Measuring Range: 0-1000NTU
Resolution: 0.1NTU Protection Rate: IP68
Temperature Range: 0 ~ 50℃ Output: Support RS-485, MODBUS Protocol
Optical Window: Optical Fiber Probe Cable Length: 10 M, 5 M, 15 M And 30 M Cable Customizable
High Light:

water turbidity sensor

,

oil in water sensor

                                                  HACH   KWS-900 Fiber Optic Turbidity Sensor





Introduction
Kacise applies fiber technology to the turbidity sensor to make the sensor has better repeatability and stability, not susceptible to ambient light coordination. The sensor's automatic cleaning brush effectively eliminates air bubbles and reduces the effects of contamination on the measurement. Long-term online use, longer maintenance intervals and better stability.



Feature
Digital sensor, RS-485 output, support MODBUS
With automatic cleaning brush, prevent pollution, eliminate air bubbles
Strong anti-interference ability, no ambient light and chromaticity
90° scattered light principle, better fiber technology repeat-ability.



Technical Specifications





Item



Fiber turbidity sensor



Self-cleaning turbidity sensor








0.1NTU Resolution Water Turbidity Sensor Optical Fiber Strong Anti Interference Ability 0



0.1NTU Resolution Water Turbidity Sensor Optical Fiber Strong Anti Interference Ability 1





Model



KWS-900A



KWS-900B

Principle 90° scattered light
Measuring Range 0-1000NTU
Resolution 0.1NTU
Accuracy <5% or 0.3NTU(which is bigger)



Protection Rate



IP68



Deepest Depth



Underwater 60 meters



Underwater 10 meters



Temperature Range

0 ~ 50℃



Output



Support RS-485, MODBUS protocol



Power Supply



DC 5~12V, current <50mA



DC 5~12V, current <50mA (when not clean)

Installation Input type Input type
Size Φ22mm*120mm Φ33mm*156mm
Probe Cable Length 10 m, 5 m, 15 m and 30 m cable customizable



Self-Cleaning System



No



Yes



Optical Window



optical fiber



Field application example

0.1NTU Resolution Water Turbidity Sensor Optical Fiber Strong Anti Interference Ability 2



Company Information

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.



We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.


Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
