| Place of Origin: | China |
| Brand Name: | Kacise |
| Certification: | CE |
| Model Number: | KTG-50 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton/wooden case, or customers requests |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability: | 10000pcs/month |
| Weight: | ≤250g | Dimensions: | Φ50×76mm |
|---|---|---|---|
| Flange: | 52×52mm | Output Gradient: | 10~14mV/ |
| Vibration: | 5g | Shock: | ≥60g |
| Band Width: | ≥70Hz | Temperature: | -40~65℃ |

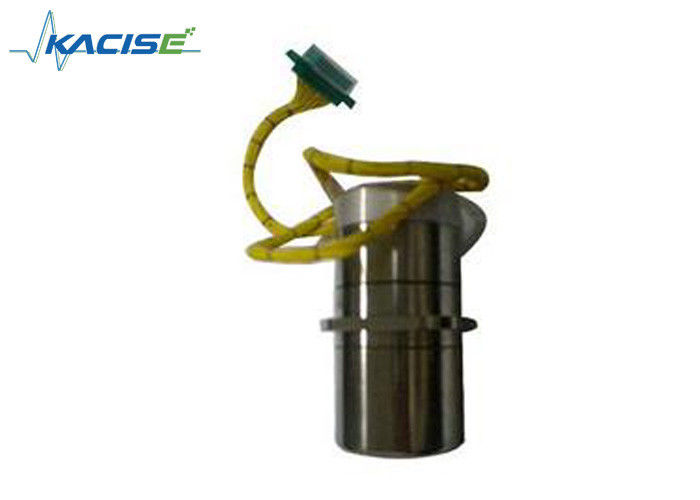

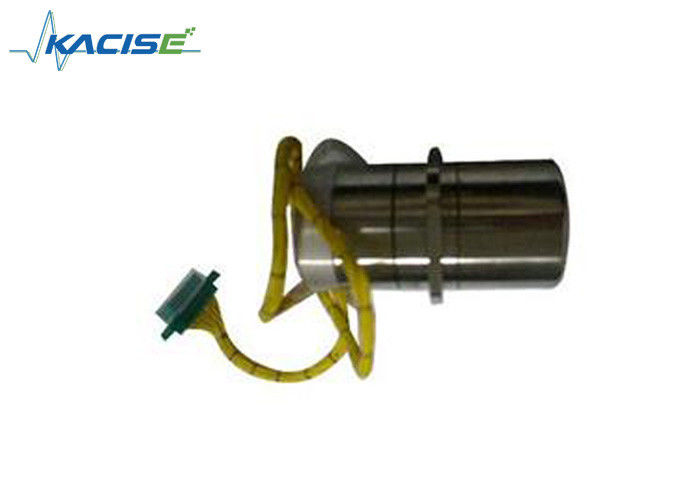

KTG-50 High Accuracy Dynamic Tuned Gyroscope
Feature
High accuracy
Long service life
Wide dynamic range
High reliability
Introduction
KTG-50 has been used for water surface, land strap-down system, fast true-north seeking, television antenna tracker, and widely used in spaceflight strap-down inertial system. The gyroscope also can be used for land, sea, aviation, space-flight transporter, strap-down platform attitude system.
Parameter
| Parameter | Spec. | Value | Unit |
| Power | Power(3 Phase) | 16&500 | V & Hz |
| Power(1 Phase) | 5&16000 | V & Hz | |
| performance | Random Drift | ≤0.01 | °/h |
| Drift stability | ≤0.3 | °/h | |
| Non-linear | ≤0.5 | %FS | |
| Max tracking Rate | ≥200 | °/S | |
| Non-G-Sensitive Drift | ≤15 | °/h/g | |
| G-Sensitive Drift | ≤8 | °/h/g | |
| Band Width | ≥70 | Hz | |
| Torquer Scale Factor | ≥680 | °/h/mA | |
| technological | Sync rate | 10000 | r/min |
| Sync Time | ≤10 | S | |
| Output gradient | 10~14 | mV/` | |
| Primary torquer | 7±1 | Ω | |
| secondary torque | 2±0.5 | Ω | |
| Physical | Weight | ≤250 | g |
| Dimensions | Φ50×76 | mm | |
| Flange | 52×52 | mm | |
| Working environment | Temperature | -40~65 | ℃ |
| Vibration | 5 | g | |
| Shock | ≥60 | g |
Installation
Products should be installed to ensure that X (Y) axis and the measurement reference axis coincides, installation error should be less than 5 '.
Operation
1.Only products matching the appropriate power and locked loop circuit board in order to work properly, need circuit board, please explain in advance.
2.When the product under normal use, you should turn on the power to start the motor, about 10s, and then the on-lock loop, so that the products in closed loop state; shutdown, disconnect locked loop so that the product is in the open-loop operation, and then disconnect power supply.
3.Product energized, shut down in 20s, should avoid shaking the product, the installation process should be light, light up, the product non-collision, percussion.
4.Product in the use of the process is strictly prohibited to pull the plug.
5.Product in the use of the process, can`t short circuit between external power supply.
6.Abnormality occurs during use, should immediately turn off the power, fault isolation, if the product internal fault, the customer shall promptly notify my company, my company organized by the repair.
Dimension
Connector definition
The socket type:J30J-15T (cable length160~175mm)
| Pin No. | Function definition | Remark |
| 1 | Signal output of X-axis | |
| 2 | GND | For Excitation power and signals |
| 3 | X-axis torque coil(the end) | |
| 4 | A phase motor driver power | There-phase 16V,500Hz |
| 5 | Sensor excitation power supply | Singal-phase5V,16KHz |
| 6 | Signal output of Y-axis | |
| 7 | Y-axis torque coil(the beginning) | |
| 8 | B phase motor driver power | There-phase 16V,500Hz |
| 9 | DC＋15V | Power for Preamplifier |
| 10 | DC－15V | Power for Preamplifier |
| 11 | X-axis torque coil(the beginning) | |
| 12 | NULL | |
| 13 | NULL | |
| 14 | C phase motor driver power | There-phase 16V,500Hz |
| 15 | Y-axis torque coil(The end) |
NOTE: The same applies to J30J-21T, if use other socket, please explain in advance.
