High Accuracy Industrial Water Quality Sensor Automatic Temperature Compensation

High Accuracy Industrial Water Quality Sensor Automatic Temperature Compensation

  • High Accuracy Industrial Water Quality Sensor Automatic Temperature Compensation
  • High Accuracy Industrial Water Quality Sensor Automatic Temperature Compensation
High Accuracy Industrial Water Quality Sensor Automatic Temperature Compensation
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: carton/wooden case, or customers requests
Delivery Time: 5-8 working days
Payment Terms: carton/wooden case, or customers requests
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0~14pH Accuracy: ±0.1pH
Resolution: 0.01pH Temperature Range: 0 ~ 65℃
Power Supply: 12~24VDC ±10% Wetted Part Material: PPR
Power Consumption: <0.5W Ip Grade: IP68
High Light:

water turbidity sensor

,

oil in water sensor

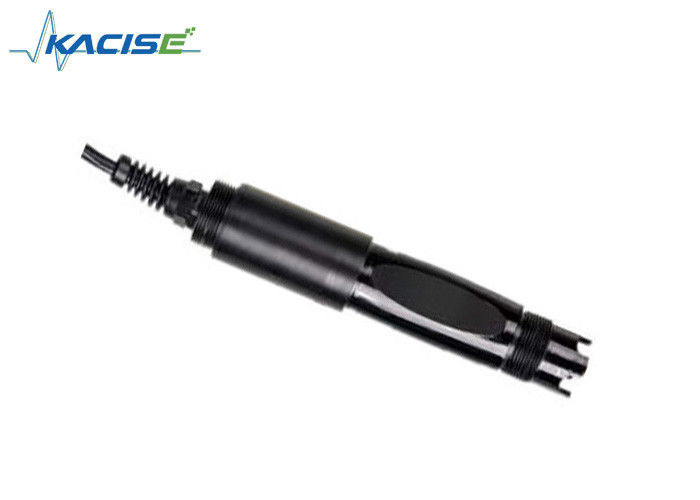

                                                                          KWS-700 Online pH Sensor





Introduction


KWS-700 online pH sensor is used in environmental water quality monitoring, acid/alkali/salt solution, chemical reaction process, industrial production process, it can meet the requirements of online pH measurement for most industrial applications.





Feature


Signal output: RS-485 (Modbus/RTU protocol).
Convenient connection to third-party equipment such as PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen.
Double high-impedance differential amplifier with strong anti-interference and fast response.
The patented pH probe, the internal reference solution oozes very slowly from the microporous salt bridge under the pressure of at least 100KPa (1Bar), and its forward bleed continues for more than 20 months. Such a reference system is very stable and the electrode life is extended by a factor of two compared to conventional industrial electrodes.
Easy to install: 3/4 NPT pipe thread for easy submersible installation or installation in pipes and tanks.





Technical Specifications



Model KWS-700
Measuring Range 0~14pH
Accuracy ±0.1pH
Resolution 0.01pH
Temperature Range 0 ~ 65℃
Work Pressure <0.2MPa
Temperature Compensation automatic temperature compensation
Output RS-485, MODBUS protocol
Power Supply 12~24VDC ±10%
Wetted Part Material PPR
Installation Immersion mounting, 3/4 NPT thread
Cable Length 5 m, customizable
Calibration Method Two-point calibration
Power Consumption <0.5W
Ip Grade IP68





High Accuracy Industrial Water Quality Sensor Automatic Temperature Compensation 0





Dimension



High Accuracy Industrial Water Quality Sensor Automatic Temperature Compensation 1



Application example



High Accuracy Industrial Water Quality Sensor Automatic Temperature Compensation 2
