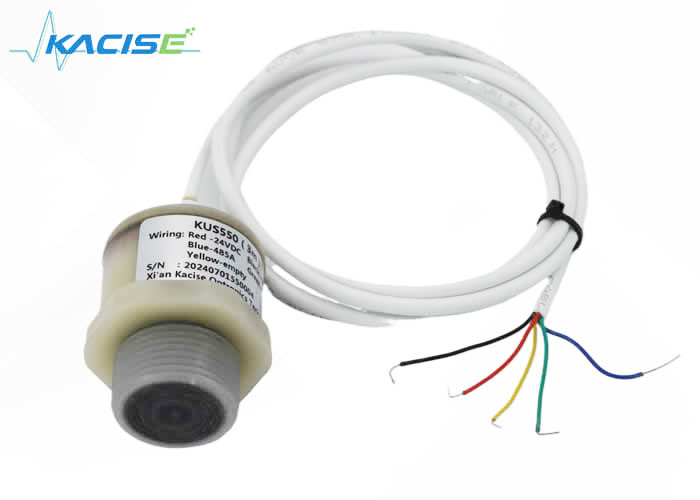

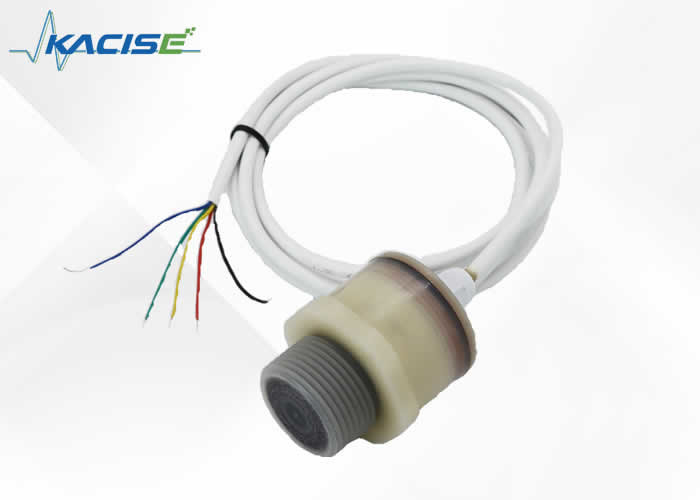

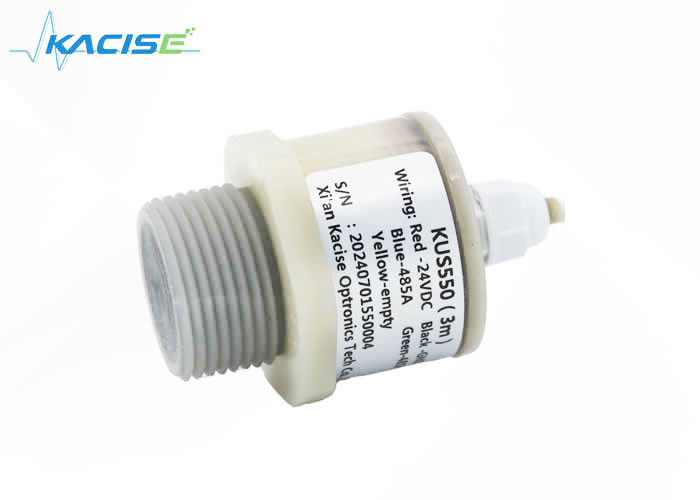

200mm - 3000mm Detection Range Fluid Level Meter Long Distance Ultrasonic Water Level Sensor

200mm - 3000mm Detection Range Fluid Level Meter Long Distance Ultrasonic Water Level Sensor

  • 200mm - 3000mm Detection Range Fluid Level Meter Long Distance Ultrasonic Water Level Sensor
  • 200mm - 3000mm Detection Range Fluid Level Meter Long Distance Ultrasonic Water Level Sensor
200mm - 3000mm Detection Range Fluid Level Meter Long Distance Ultrasonic Water Level Sensor
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof,
Model Number: KUS550
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Product: Ultrasonic Distance Sensor Detection Range: 200mm~3000mm
Transducer Frequency: 125KHZ Operating Voltage: 24VDC
Limit Working Voltage: 13VDC~30VDC IP Grade: IP67
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

low cost ultrasonic level sensor liquid level sensor modbus long distance
ultrasonic water level sensor




Description



Ultrasonic sensors are sensors that convert ultrasonic signals into other energy signals (usually electrical signals). Ultrasonic wave is a mechanical wave whose vibration frequency is higher than 20kHz. It has the characteristics of high frequency, short wavelength, small diffraction phenomenon, especially good directivity, can become a ray and directional propagation. Ultrasonic waves can penetrate liquids and solids very well, especially in solids that are opaque to sunlight. The ultrasonic wave will produce significant reflection when it encounters impurities or boundary surface and form reflection echo. It can produce Doppler effect when it encounters moving objects.



The ultrasonic distance sensor transmits the ultrasonic pulse to the measured object, and then returns the echo formed by the reflection of the measured object to the receiving sensor to obtain the time difference between transmission and reception, and then the distance between the transducer and the surface of the measured medium can be obtained according to the sound velocity in the medium. Therefore, we can calculate the distance D=C * t/2 between the transducer and the medium reflecting surface, except that the distance from the ultrasonic transmission to the reception is twice the distance from the transducer to the medium. (D is distance, C is sound speed, t is time).



Product brief introduction


This sensor provides very short to long-range detection and ranging, in a compact, robust PVC / PTFE housing, designed to meet IP67 water intrusion. The power 13V-30V operation detects objects from 0.2 meters to 2 meters. The interface output formats RS485 serial digital output.



Features



. Designed for outdoor or indoor environments

. High sensitivity

. Readings can occur up to every 50mS (20Hz) within 2meters

. Free run operation can continually measure and output ranger information

. 13-30 supply with very low average current draw

. 0-10V with RS485 interface.

. Sensor operates at 125KHz.

. Sensor beam angle is 7 degrees.

.The analogue output can be set between 0-10V can work with the switch output.



Applications

  • Tank level measurement
  • Bin level measurement
  • Proximity zone detection
  • People detection
  • Robot ranging sensor
  • Autonomous navigation
  • Multi-sensors navigation
  • Distance measuring
  • Long range object detection
  • Industrial automation



Parameters



General Parameters Mechanical Properties
Detection Range 200mm~2000mm Connection 5 pin cable
Transducer Frequency 125KHZ Weight 100g
Repeatability Precision ≤1% IP grade IP67
Response Time <50ms
Beam Angle 7°±2
Temp. Compensation inside/outside/fix temp.
Electrical Parameters
Operating Voltage 14.5VDC~27VDC
Limit Working Voltage 13VDC~30VDC
Power Consumption ≤30mA
Circuit Protection short-circuit protection, overload protection
Output Digital Output RS485
Analogue Output 0~10V
Switch Output 0V / 10V
Ambient Environment
Operating Ambient Temp. 0~70℃ (-40~85℃, -55~125℃, etc, customizable)
Storage Temperature -55~1





200mm - 3000mm Detection Range Fluid Level Meter Long Distance Ultrasonic Water Level Sensor 0
