Handheld Fluid Level Meter Ultrasonic Flow Transducer With SD Card Function

Product Details:

Place of Origin:	CHINA
Brand Name:	kacise
Certification:	ISO90001
Model Number:	KUFH2000B

Payment & Shipping Terms:

Minimum Order Quantity:	0-100
Packaging Details:	each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time:	5-10 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 Pieces per Week

Contact Now

Detailed Product Description

Power Supply::	DC8~36V Or AC85~265V( Optional)	Temperature::	-30~160℃
Consumption::	1.5W	Output::	4~ 20mA Output,RS485
Type Of Liquid::	Water, Sea Water, Waste Water, Oil, Chemicals (alcohol, Acids, Etc.), Plant Effluent And Other Liquids	Pipe Diameter::	32~6000mm
High Light:	ultrasonic level transmitter , ultrasonic liquid level sensor

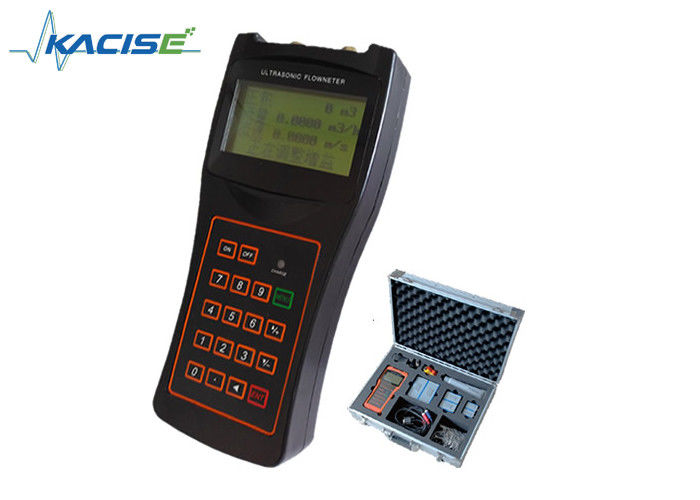

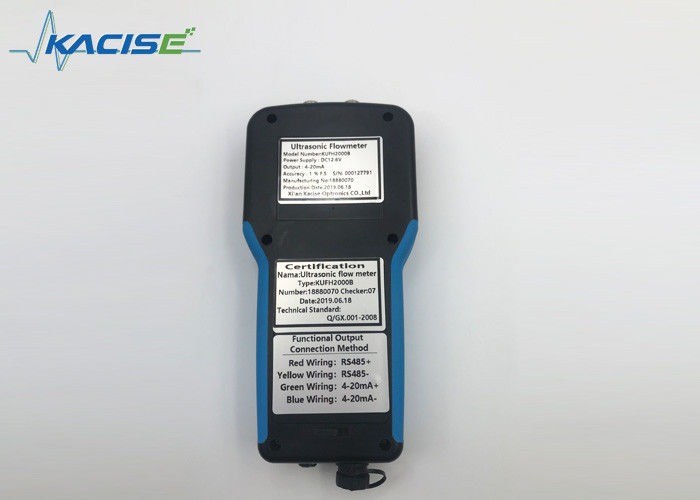

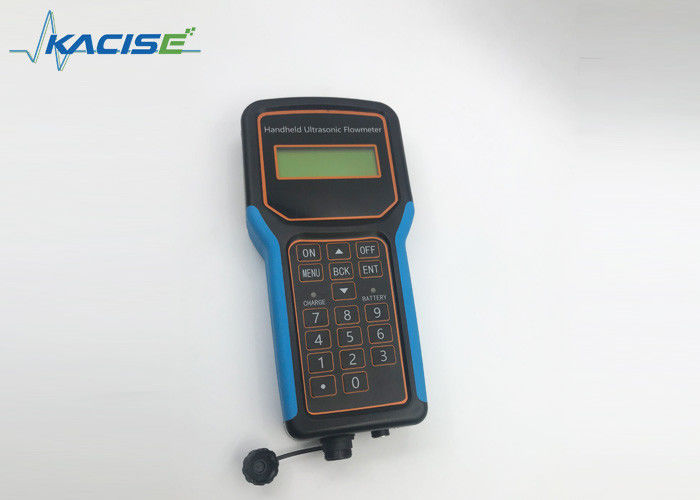

Handheld Ultrasonic Flow Meter KUFH2000B With SD-CARD Function

1. Introduction

KUFH2000 handheld ultrasonic flow meter is ideal for flow surveys and closed pipe application where
non-invasive measurement of liquids is required.
The advantages of high measurement accuracy, good consistency, battery power supply, easy operation
and portability make this meter the smallest and lightest flow meter in domestic and a significant portable
ultrasonic flow meter

2. Features

High accuracy:Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy:±1%
Wide range of flow rate and pipe diameter:Suitable for the pipe with DN32 to DN6000
Rechargeable power supply:Built-in NIMH rechargeable battery, which can support 12 hours of continuous work. When charging by power adapter, it can realize the uninterrupted measurement.
Non-intrusive measuring:Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
Large LCD display:Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.
Built-in data logger:Built-in 24K data logger, store over 2000 lines measuring data

3. Installation

KUFH2000 Series Handheld Ultrasonic Flow Meter RS485 Output DC8-36V

4. Sensor selection

Sensor selection depend on the application field parameters such as the diameter of the pipe the fix method
the kind of the flow, please refer to the fix method choice chapter for details.

KUFH2000 Series Handheld Ultrasonic Flow Meter RS485 Output DC8-36V

5.Parameters

tem	Performance and Parameter
Main unit	Principle	Transit time measure, 4 bytes of IEEE754 floating point arithmetic
	Accuracy	1 %
	Display	Support English, Chinese, Italian and France
	Signal output	1 channel 4-20mA current output 1 channel pulse width is adjustable between 6~1000ms, 200ms(default) 1channel relay output
	Signal input	3 way 4-20mA input, acquire signals such as temperature, press and liquid level.
	Signal input	Achieve to heat measurement by connecting the temperature transducer PT100.
	Data port	RS485 serial interface, upgrade the flow meter software by computer, support MODBUS
	Data Record	Thermal printer, external SD card(2G of capacity)
Pipe Installation Condition	Pipe Material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
	Pipe Diameter	15~6000mm
	Straight Pipe	Sensor installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump.
Measuring Medium	Type of Liquid	Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc.
	Temperature	-30°C~160°C
	Turbidity	Less than 10000ppm, not so much baubles
	Flow speed	0 ~±10m/s
Working ambient	Temperature	Host: -20~60°C Sensor: -30~160°C
Working ambient	Humidity	Host: 85% Sensor: IP67
Power supply	8 built-in Ni-MH batteries 1.2V(for over 20 hours of operation). Could operate 8 hours by connecting 4-20mA signal output. By using 90V - 260V AC adapter, continuous measurement can be realized.
