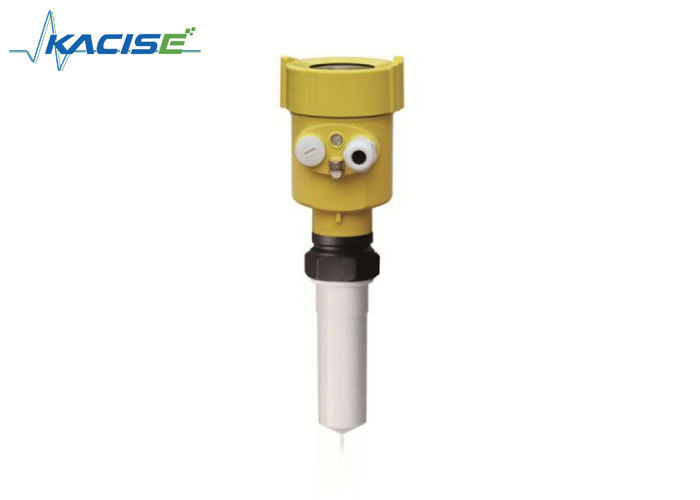

Small Beam Angle Radar Level Detector High Efficiency Eco - Friendly CE Certification

Small Beam Angle Radar Level Detector High Efficiency Eco - Friendly CE Certification

  • Small Beam Angle Radar Level Detector High Efficiency Eco - Friendly CE Certification
  • Small Beam Angle Radar Level Detector High Efficiency Eco - Friendly CE Certification
Small Beam Angle Radar Level Detector High Efficiency Eco - Friendly CE Certification
Product Details:
Place of Origin: China (Mainland)
Brand Name: KACISE
Certification: CE
Model Number: KLD-2601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Measuring Range: 70meters AccuracyExia IIC T6 Ga/Exd Ia IIC T6 Gb: ±15mm
Process Connection: Univeral Flange Explosion-proof: Exia IIC T6 Ga/Exd Ia IIC T6 Gb
Protection: IP67 Frequency: 26GHz
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Kacise KLD2601 26G Water radar level controller china, digital water radar level recorder, water tank radar level gauge

Product Overview



This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.



Technical Specification and Model Selections:



Suitable for Medium Strongly corrosive liquid
Application HCl, H2SO4, HF and strong base in tank, etc.
Measuring Range 10m
Process Connection Flange, Min. flange is DN80
Medium Temperature -40 ~ 120
Process Pressure -0.1 ~ 0.1MPa
Accuracy ±5~10mm
Protection Grade IP67
Frequency Range 26GHz
Explosion-proof Grade Exia IICT6 Gb
The signal Output 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

The Electrical Connection

(4~20)mA/HART (Two wire system)     The power supply and the output current signal sharing a two                                                                      core shield cable. The supply voltage range see technical data.                                                                  For intrinsically safe type must be a safety barrier between the                                                                    power supply and the  instrument.

(4~20)mA/HART(Four wire system)     Separate power supply and the current signal, respectively using                                                                a two-core shielded cable. The supply  voltage range see                                                                            technical data.

RS485 / Modbus                                   Power supply and Modbus signal line separate drespectively                                                                      using a two-core shielded cable, the power supply voltage range                                                                see technical data.

Small Beam Angle Radar Level Detector High Efficiency Eco - Friendly CE Certification 0

 Applications and Cases:



Small Beam Angle Radar Level Detector High Efficiency Eco - Friendly CE Certification 1
