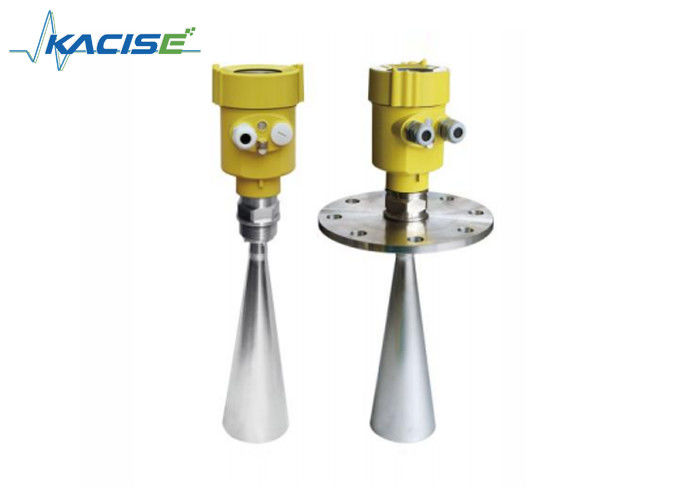

IP67 Protection Water Tank Radar Level Gauge Universal Flange Easy Installation

IP67 Protection Water Tank Radar Level Gauge Universal Flange Easy Installation

  • IP67 Protection Water Tank Radar Level Gauge Universal Flange Easy Installation
  • IP67 Protection Water Tank Radar Level Gauge Universal Flange Easy Installation
IP67 Protection Water Tank Radar Level Gauge Universal Flange Easy Installation
Product Details:
Place of Origin: China (Mainland)
Brand Name: KACISE
Certification: CE
Model Number: KLD-2603
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
AccuracyExia IIC T6 Ga/Exd Ia IIC T6 Gb: ±15mm Process Connection: Univeral Flange
Explosion-proof: Exia IIC T6 Ga/Exd Ia IIC T6 Gb Protection: IP67
Frequency: 26GHz Measuring Range: 70m
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Kacise 26 GHz Water radar level controller china, digital water radar level recorder, water tank radar level gauge

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.



Product1 Parameters

Suitable for Medium Strongly corrosive liquid
Application HCl, H2SO4, HF and strong base in tank, etc.
Measuring Range 10m
Process Connection Flange, Min. flange is DN80
Medium Temperature -40 ~ 120
Process Pressure -0.1 ~ 0.1MPa
Accuracy ±5~10mm
Protection Grade IP67
Frequency Range 26GHz
Explosion-proof Grade Exia IICT6 Gb
The signal Output 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

Product2 Parameters

Suitable for Medium Resistance to temperature and pressure, and slightly corrosive liquid.
Application Acetone, toluene, toluene, DM, etc. in tank
Measuring Range 30m
Process Connection Flange, Min. flange is DN80
Medium Temperature -40 ~ 150
Process Pressure -0.1 ~ 4MPa
Accuracy ±3~10mm
Protection Grade IP67
Frequency Range 26GHz
Explosion-proof Grade Exia IICT6 Gb
The signal Output 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

Product3 Parameters

Suitable for Medium Powder, granule, bulk solid
Application Lime powder, cement, coal ash, coal and ore etc. in silo
Measuring Range 35m for powder, 45m for granule and block
Process Connection Flange, Min. flange is DN100
Medium Temperature -40 ~ 250
Process Pressure -0.1 ~ 0.1MPa
Accuracy ±20~50mm
Protection Grade IP67
Frequency Range 26GHz
Explosion-proof Grade Exia IICT6 Gb
The signal Output 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

Product4 Parameters

Suitable for Medium Powder, granule, bulk solid
Application Lime powder, cement, coal ash, coal and ore etc. in silo
Measuring Range 50m for powder, 70m for granule and block
Process Connection Flange, Min. flange is DN250
Medium Temperature -40 ~ 250
Process Pressure -0.1 ~ 0.1MPa
Accuracy ±20~50mm
Protection Grade IP67
Frequency Range 26GHz
Explosion-proof Grade Exia IICT6 Gb
The signal Output 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

Product5 Parameters

Suitable for Medium Powder, granule, bulk solid
Application Lime powder, cement, coal ash, coal and ore etc. in silo
Measuring Range 15m for powder, 20m for granule and block
Process Connection Flange, Min. flange is DN100
Medium Temperature -40 ~ 250
Process Pressure -0.1 ~ 0.1MPa
Accuracy ±20~50mm
Protection Grade IP67
Frequency Range 26GHz
Explosion-proof Grade Exia IICT6 Gb
The signal Output 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

Product6 Parameters

Suitable for Medium Liquid without pressure
Application Pharmaceutical plants, food factories have sanitary requirements for the tank and process tank
Measuring Range 20m
Process Connection Flange, Min. flange is DN100
Medium Temperature -40 ~ 150
Process Pressure -0.1 ~ 0.1MPa
Accuracy ±3~10mm
Protection Grade IP67
Frequency Range 26GHz
Explosion-proof Grade Exia IICT6 Gb
The signal Output 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional
