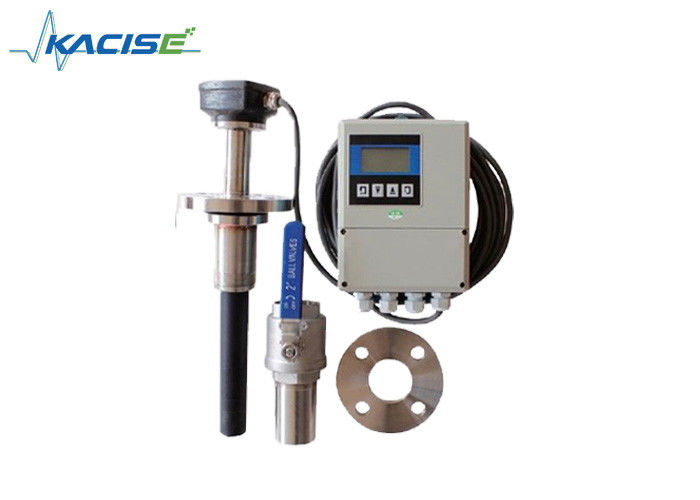

Precision Insertion Electromagnetic Flowmeter / Liquid Flow Meter Easy To Install

Precision Insertion Electromagnetic Flowmeter / Liquid Flow Meter Easy To Install

  • Precision Insertion Electromagnetic Flowmeter / Liquid Flow Meter Easy To Install
Precision Insertion Electromagnetic Flowmeter / Liquid Flow Meter Easy To Install
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Certification: ATEX IIB
Model Number: KEF SERIES
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Power Supply: 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery Power (3-5years) Suitable Fluid: Liquid With Conductive Ratio More Than 5 μs/cm
Accuracy: 0.3% (Option), 0.5%, 1.0% Of F.S.. Output Signals: 4~20mA, Pulse, Frequency
Suitable Diameter: DN200~DN2600 (below DN25 Non-standard) EX-proof Protection: Exde Ib Ii BT2
Fluid Temperature: -20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending On Lining Material Product Name: Insertion Electromagnetic Flowmeter Liquid Flowmeter Alibaba
Keyword: Insertion Electromagnetic Flowmeter
High Light:

wastewater flow meter

,

electromagnetic water flow meter

Insertion Electromagnetic Flowmeter Liquid Flowmeter China



Introduction

Insertion Electromagnetic Flowmeter is a kind of induction instrument designed by Faraday’s law of electromagnetic induction to measure flow of conductive media in the tube. It adopts the technology of insertion of single chip to realize digital excitation and employs CAN local fieldbus.

Insertion Electromagnetic Flowmeter can realize local indication and output electrical current signal of 4-20mA which can be used to record, adjust and control. Insertion electromagnetic flowmeter is used to measure the flow of conductive fluid in water, iron and steel, petroleum, chemical, electric power, industry, water conservancy, etc. it can also be used to measure acid, alkali, salt and other corrosive conductive liquids.



Features

1. Simple structures, firm, no movable parts and long operation life.

2. No intercepting fluid parts, no pressure loss and fluid clogging.

3. No mechanical inertia, quick response and good stability, application in automatic examination, adjustment & controlling.

4. Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure.

5. Employ Teflon or rubber liner and different combination of electrode material such as Hastelloy C, Hastelloy B, 316L, and Titanium and adapt the need of different mediums.

6. Supply many styles of flow meters such as inline type and insertion type, etc.

Adopt EEPROM memory to measure operation data, safe and reliable protection of memory.

7. Integral type electromagnetic flow meters and remote type electromagnetic flow meters.

8. LCD back light display with high clearness. (Option: LED display is optional).

Specifications

Items Description
Suitable Diameter DN200~DN2600
Suitable Fluid Liquid with conductive ratio more than 5 μs/cm
Measuring Range 0.5~10m/s (extendable to 15m/s)
Upper Limit of Span 0.5~10m/s. 1~5m/s recommended
Accuracy 0.3% (Option), 0.5%, 1.0% of F.S..
Repeatability Below 0.25%
Display of Converter

Display : Flow rate ( 4-digits), Totalizer (9-digits), Velocity, Alarm status

by LCD ( LED-option)

Scale unit: selectable of L/h, L/m, L/s, m3/h, m3/m, m3/s
Flow direction : selectable by program
3 Digits display below of decimal points.
K-factor: 5 digits.
Data logger for 2-3years.
Programming language: English, Korean(on request)
Mounting: Integral type; Remote Type
Power AC: 220V, 50-60Hz; DC: +24V(Option)
Output Signals

4~20m ADC, load ≤ 750ohm,

0~3kHz, 5V with source and changeable width.

High terminal and effective frequency output

Voltage output:0-5 V DC

Conduit connection M20 * 1.5 Thread
Communication Interface RS-232; RS-485; HART
Operation Pressure 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special)
Fluid Temperature -20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material
Ambient Temperature Sensor -40°C ~80°C. transducer -15°C ~50°C
Ambient Humidity ≤ 85%RH (at 20C)
Cable Outlet Size M20×1.5
Power Supply 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years)
Power Consumption ≤ 8W
Protection Ratings Integral type: IP65. Remote type: sensor IP68, transducer IP65.
Materials Electrode

316L (stainless steel), Hastelloy C, Hastelloy B,

Titanium, Tantalum, etc.

  Liner PTFE, Soft rubber, Hard rubber, F46, FS, PUR.
Measuring tube SUS 304
Flange Carbone Steal
Ground ring 316L (stainless steel), HC, Ti, Ta, Cu.
Connection of Flange

National Standard GB9119-88 (DIN2051, BS4504), JIS, ANSI. Screw.

Tri-clamp for sanitary application

Insertion type.

EX-proof protection Exde ib ii BT2
Quality control ISO9001-2008, CE



Product Description

Insertion flowmeter.jpg

Ordering Information








FAQ



1. Q: What information need to be provided to choose the suitable Insertion Electromagnetic Flowmeter model?

A: Application field, measuring range, output, accuracy, connection and other related parameters.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us in China.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
