| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KUA-40-12PB-F |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 9 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 Piece/Pieces per Month |
| Model: | KUA-40-12PB-F | Frequency: | 40KHz±5% |
|---|---|---|---|
| Range: | 0.5～12m | Minimum Impedance: | 390Ω±20％ |
| Capacitance: | 5200pF±20％ @1KHz | Sensitivity: | Emits Voltage:700Vpp,distance 0.6m, Echo Amplitude 450mV |
| Working Voltage: | Peak Point Voltage＜1500VPP | Working Temperature: | -40～+80℃ |
| Pressure: | ≤3kg Or 0.3MPa | ||
| High Light: | waterproof ultrasonic sensor,ultrasonic fuel level sensor |
||
Product Description
An ultrasonic level sensor, also known as an ultrasonic liquid level gauge, is a sophisticated device employed for accurately measuring the level of liquid substances within containers or tanks. This technology utilizes ultrasonic waves, which are sound waves with frequencies beyond the audible range of human hearing, to determine the distance between the sensor and the liquid surface.
The sensor emits ultrasonic pulses that travel towards the liquid's surface. Upon hitting the liquid, these pulses are reflected back to the sensor. By calculating the time it takes for the pulses to travel to the liquid surface and return, the sensor can accurately determine the distance between itself and the liquid level. This distance measurement is then converted into a precise liquid level reading, providing valuable information about the contents of the container.
Ultrasonic level sensors offer numerous advantages, including non-contact measurement, which eliminates the need for physical contact with the liquid, ensuring minimal contamination or interference. They are suitable for a wide range of liquids, regardless of factors like color, transparency, or consistency. Moreover, these sensors are often capable of measuring levels in challenging environments, such as those with extreme temperatures, varying pressures, or corrosive substances.
These sensors find application across various industries, including manufacturing, chemical processing, water treatment, food and beverage, and more. They contribute to efficient inventory management, process control, and monitoring, enhancing operational reliability and safety.
In summary, ultrasonic level sensors are cutting-edge devices that utilize ultrasonic waves for accurate, non-contact measurement of liquid levels in diverse industrial and commercial settings, providing valuable insights for effective management and control.
| Item | Parameters |

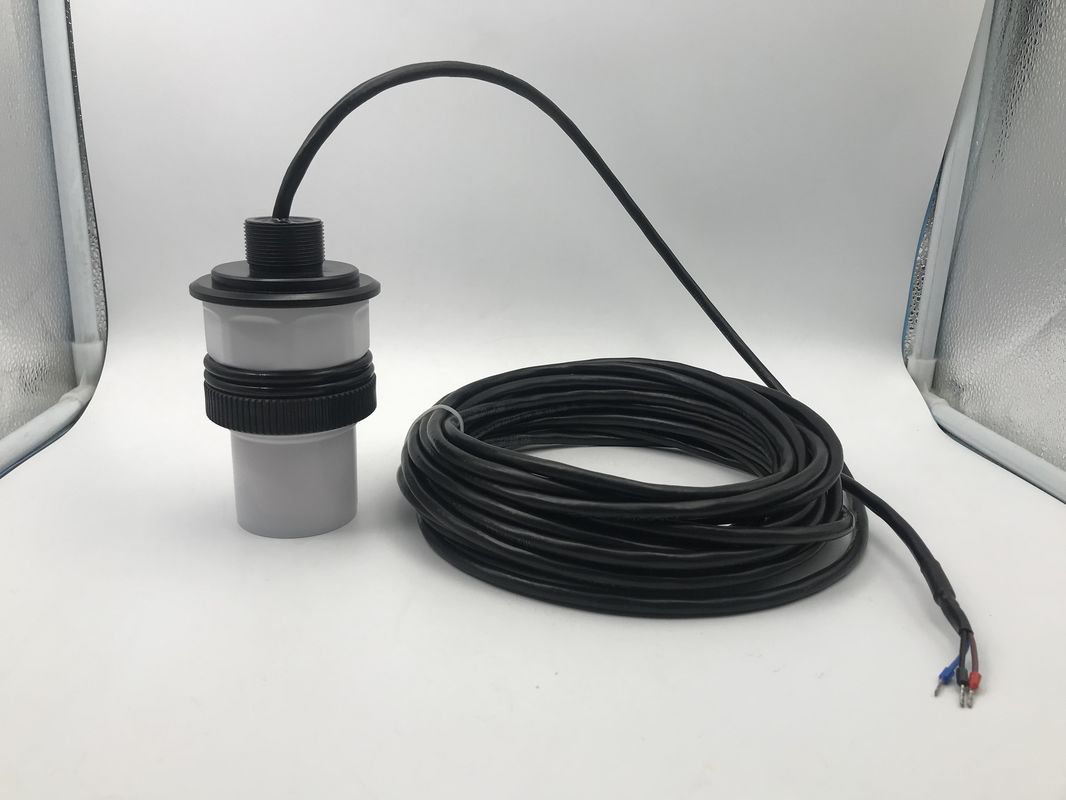

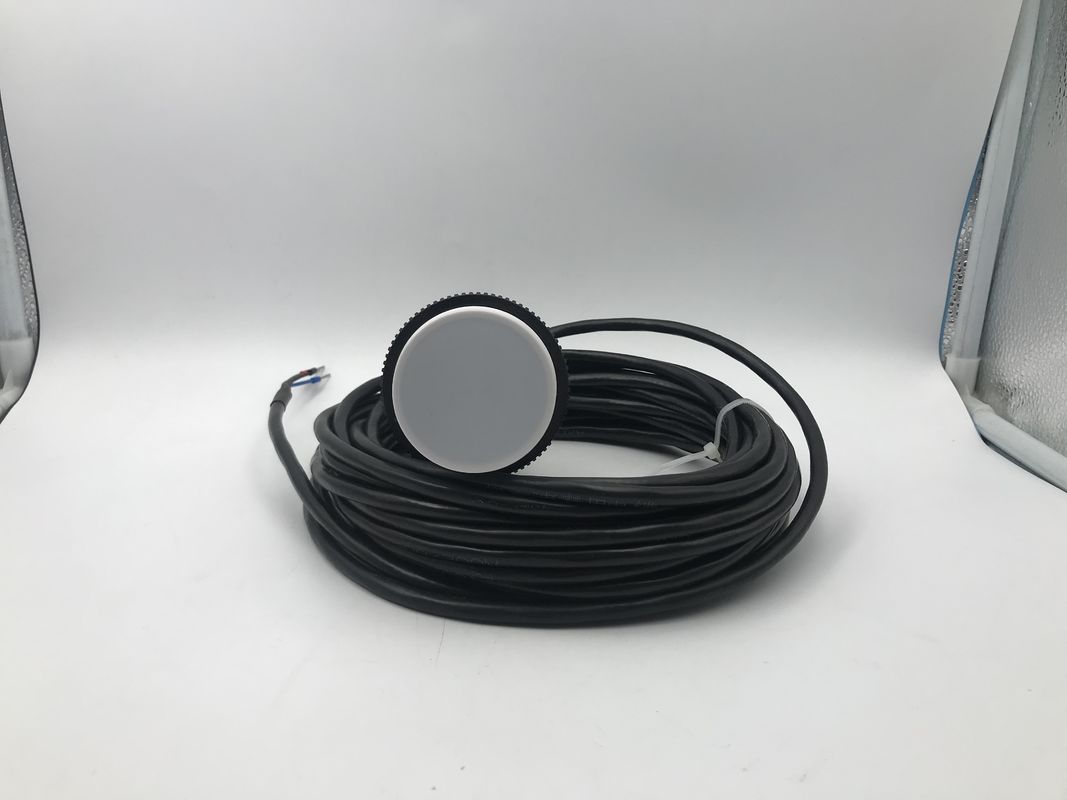

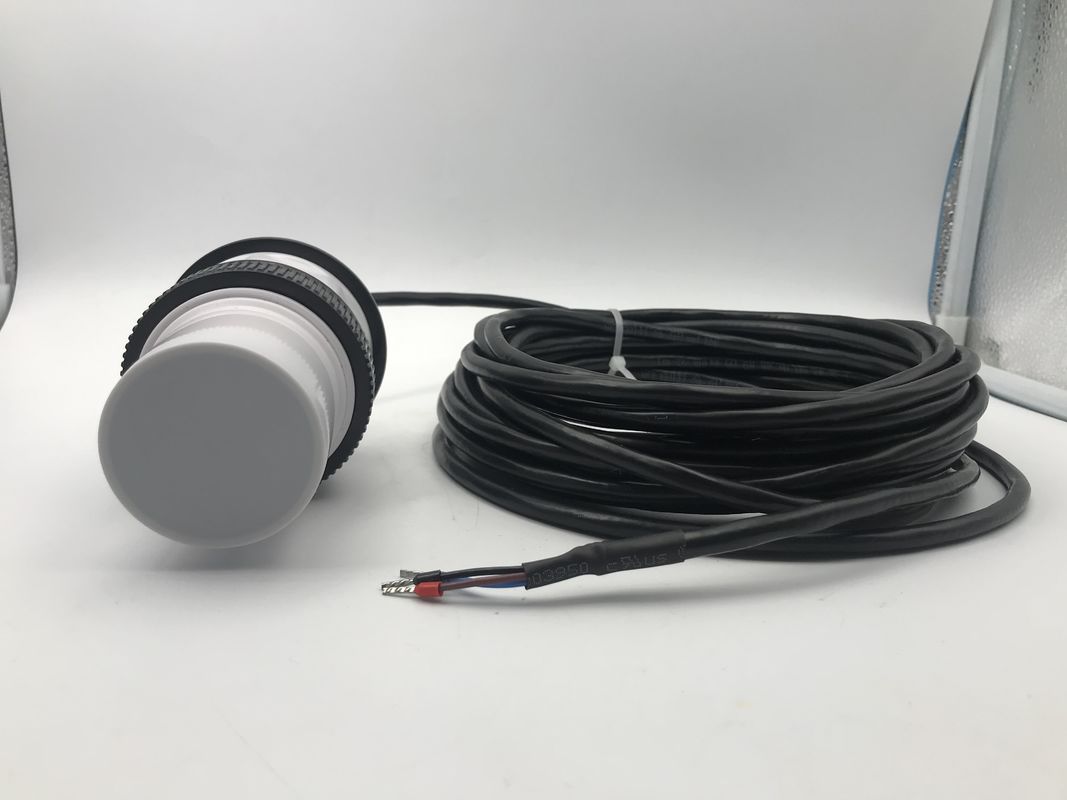

| Name | 12m Anti-corrosion Transducer Model PB |
| Model | KUA-40-12PB-F |
| Frequency | 40KHz±5% |
| Range | 0.5～12m |
| Minimum impedance |
390Ω±20％ |
| Capacitance | 5200pF±20％ @1KHz |
| Sensitivity | emits voltage:700Vpp,distance 0.6m, echo amplitude 450mV |
| Working voltage | Peak point voltage＜1500VPP |
| Working temperature |
-40～+80℃ |
| Pressure | ≤3kg or 0.3MPa |
| Angle | (Beam width) half-power angle@-3dB:10°±2, Sharpness angle: 23°±4 |
| Housing material | POM, PVDF |
| Usage | ultrasonic level sensor, monitor, anti-collision, security |
| IP grade | IP68 |
| Weight | 950g±5％(cable length: 10m) |
