Product Details:
Place of Origin: China (Mainland)
Brand Name: Honeywell
Certification: certificate of explosion-proof, CE
Model Number: QAT-160
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Name: Accelerometer Bias: <20 Mg
Range: ±20 G Bandwidth: <20 Hz
Core Materials: Stainless Steel Type: QAT-160
High Light:

linear acceleration sensor

,

triaxial acceleration sensor

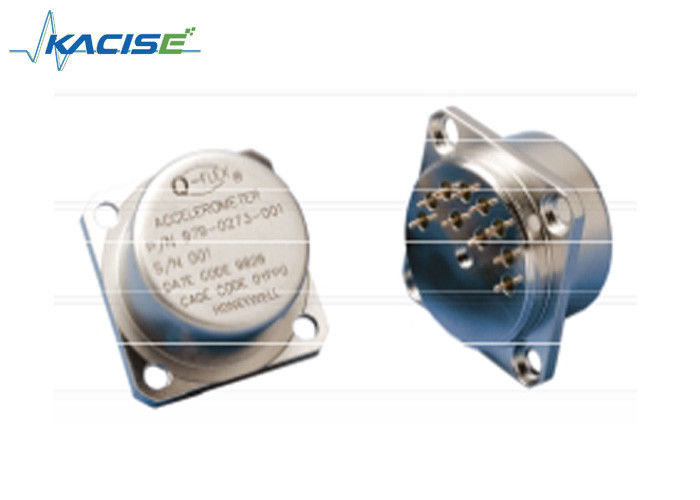

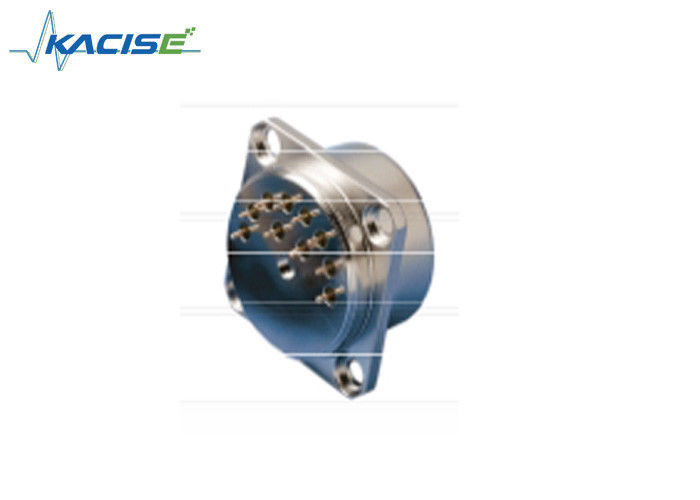

HoneywellQA-T160 and QA-T185 Accelerometer

Description

For high-temperature Q-Flex® technology in a ruggedized package, Honeywell produces the QA-T160 and QA-T185 models for down-hole measurement-while- drilling and wireline applications.

As with the entire Q-Flex accelerometer family, QA-T160 and QA-T185 feature a patented Q-Flex etched-quartz- flexure seismic system. An amorphous quartz proofmass structure provides excellent bias, scale factor, and axis alignment stability.

The integral Q-Flex electronics develop an acceleration-proportional output current providing both static and dynamic acceleration measurements. By use of a customer-supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

The QA-T160 and QA-T185 also include a current- output internal temperature sensor. By applying temperature-compensating algorithms, bias, scale factor, and axis misalignment performance are dramatically improved.

Robust design and quality assurance provides superior reliability.

Features



· High temperature capability

· Environmentally rugged

· Analog output

· Square or round mounting flange options

· Field-adjustable range

· Internal temperature sensor for thermal compensation

· Low power electronics

· Built-in test



Configuration Drawings

Reliable Accelerometer Impact Sensor Stainless Steel Core Materials Explosion Proof 0

Technical Specifications

Per Performance Characteristics
Input Range ±20 g
Bias <20 mg
Residual modeling error <450 µg
Scale Factor 2.75 mA/g ±1.8%
Residual modeling error <450 ppm
Axis misalignment <20 mrad
One-year repeatability <400 µrad
Vibration rectification (50-500 Hz) <100 µg/g²
Threshold and resolution <5 µg
Bandwidth <200 Hz
Environmental
Vibration, operating & survival
Sine vibration 30g peak,50 to 800Hz
Random vibration 20 grms

Shock
Operating 1000 g
Survival (-40 to 70°) 2000 g
Electrical
Input voltage ±12.5 to ±15.5 VDC
Quiescent current 6 mA per supply
Quiescent power 180m Watts
Physical
Weight 55 grams
Size 1.0 in. dia. X 0.73 in. high
Core materials Stainless Steel

Performance by Model QAT160 QAT185
RSS Bias & Scale Factor
- One-year repeatability
1 mg 1.5 mg
Operating temperature -40 to 160ºC —40 to 185ºC
Survival temperature 175ºC intermittent 200ºC intermittent
