| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KD32A1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Pieces per Week |
| Name: | Fiber Optic Gyroscope | Bias Stability: | ≤0.3, ≤0.5(°)/h |
|---|---|---|---|
| Range: | ±5, ±100, ±120(°)/S | Usage:: | Inclinometer Sensor |
| Power Supply: | ±5V | Model No.: | KD Series |
| High Light: | linear acceleration sensor,triaxial acceleration sensor |
||

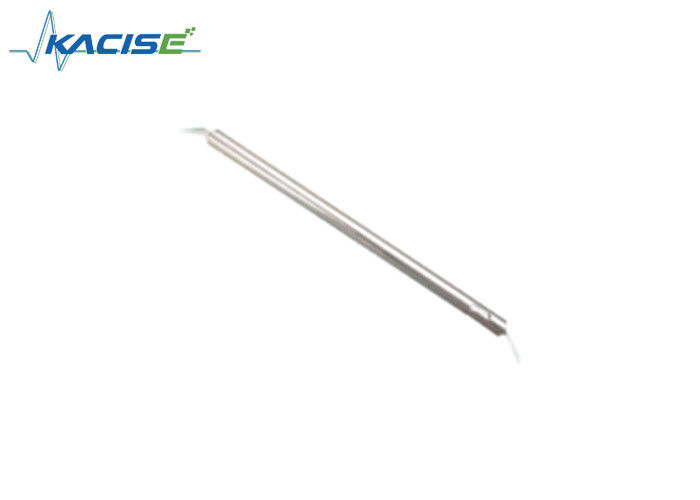

Low cost fiber optic gyroscope inclinometer sensor
Description of fiber optic gyroscope
The KD series FOG is the interferometric digital close-loop single-axis fiber optic gyro. It is the perfect substitution for traditional mechanical gyro, featuring of high bandwidth, short activation time, shock resistance, vibration resistance and affordable price.
The KD series FOG improves the bias stability, angle random walk, scale factor linearity and robustness. The exceptional bias stability, angle random walk and resistance to shock make it ideal for various industrial applications. The KD series FOG is your best option for motion sensing, platform stabilization, navigation and precise pointing because of its high performance, robustness, compact package and competitive price.
This series of products are successfully used in geological exploration, mining and petroleum survey, dam measurement etc.
Product of low cost fiber optic gyroscope inclinometer sensor
Brief introduction
This series of products successfully used in geological exploration, mining and oil inclinometer, dam measurement. It is the earliest in the field of applied inclinometer small diameter fiber optic gyroscope.
Specification
| Spec. | ||
| Parameter | Model | |
| KD32A1 | KD32A1B | |
| Range | ±5(°)/S | ±120(°)/S |
| Bias stability (1σ) | ≤0.5(°)/h | ≤0.5(°)/h |
| Scale factor repeatability | <300ppm | <500ppm |
| Random walk coefficient | 0.05(°)/√h | 0.05(°)√h |
| Working Temp. | -10°C~+70°C | -10°C~+70°C |
| Power supply | ±5V | ±5V |
| Dimension | Φ32mm×470mm | Φ32mm×505mm |
| Weight | ≤650g | ≤650g |
| Output | Pulse | Pulse |
| Polarity | Longitudinal (vertical) | Axial |
Note: the technical specifications in the table can be customized according to the requirements.
Dimension
(Customized according to customer requirements.)
