| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Model Number: | GR3 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 Pieces per Week |
| Name: | Wire Rope Vibration Isolator | Function: | Return Air |
|---|---|---|---|
| Working Temperature: | -55~120 | Relative Product: | Backdraft Damper |
| Model: | JGX | Shock Rsistance: | 20g/11ms |
| High Light: | wire rope shock absorber,cable shock absorber |
||

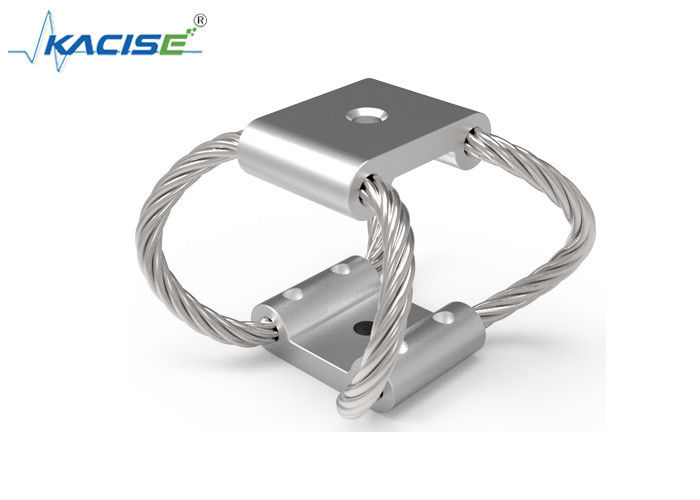

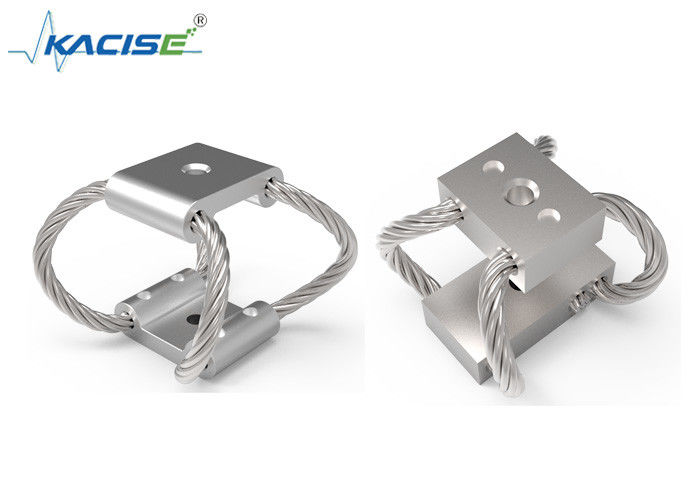

Compact wire rope GR1 cable wire shock absorber Factory price wire rope isolator for photographic equipment
Wire rope isolators are stable mounting assemblies of high quality stranded wire rope held with rugged metal retainers. Each isolating element has specific response characteristic determined by the diameter of the wire rope, the number of strands, the cable length, the cable twist or lay, and the number of cables per section.
Inherent damping is provided by flexure hysteresis, i.e., the rubbing and sliding friction between the strands of the wire rope.
Wire rope isolators provide higher levels of isolation than any other medium or design, with excellent vibration damping. Cable mounts are truly unique, adapted to a spectrum of physical and engineering requirements so broad that it includes almost every isolation need. They have put to rest the notion that a single mount cannot handle both shock and vibration.
Size Chart
Applications:
Helical isolators protect a broad range of loads:
See table below for more details.
| Applications | Typical Equipment | Protection From | Operational Advantages |
| Shipboard | Electronics, Computers, Machinery | Explosive blast, Inherent vibration, Storms | Long life, Maintenance free,Temperature extremes, Corrosion resistance, All axes protection |
| Rough Terrain Vehicles | Instrumentation, Generators, Electronics | Rough terrain, Poor road conditions, Collision | Long life, Maintenance free, Temperature extremes, Ozone, Radioactivity, UV Radiation |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air | Temperature and altitude extremes, Lightweight |
| Shipping Containers | Optics, Instruments, Missiles, Electronics | Transit, Handling drop, Loading/Unloading | Long life, Maintenance free, Exposure to moisture, Repeated use |
| Industrial Equipment | Centrifuge, Dryers, Pumps | Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness | Long life, Maintenance free, Corrosive environments |
| Ordnance Equipment | Missile launcher, Tank artillery, Computer controls, Electronics | Rough terrain, Railroad humping, Transit | Maintenance free, Temperature extremes, Nearby blast |
| Medical Equipment | Mechanical equipment necessary for patient care | Vibration from moving parts, Mobile carts-Transport shock | Maintenance free, No outgassing, Can be sterilized |
| Chimneys | Chimneys, Scrubbers, Measuring devices | Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. | Maintenance free, Temperature extremes, Corrosive environments |
