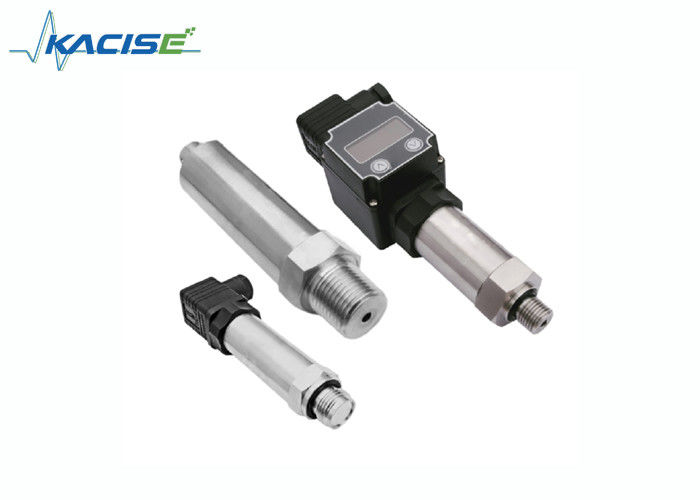

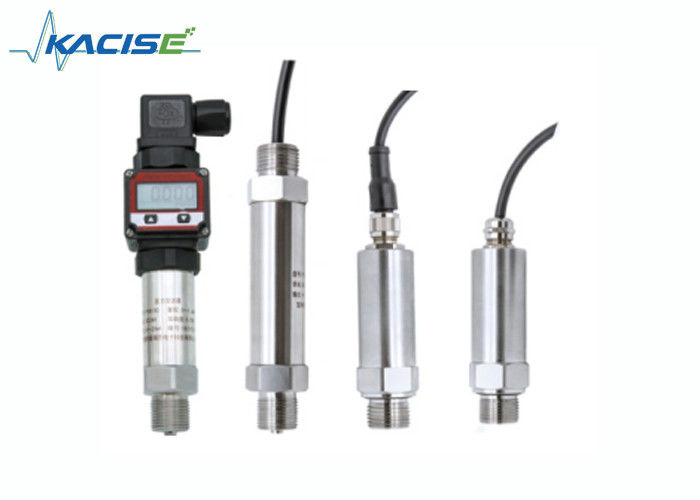

30VDC IP65 SS316L 100Mpa Precision Pressure Sensor

30VDC IP65 SS316L 100Mpa Precision Pressure Sensor

  • 30VDC IP65 SS316L 100Mpa Precision Pressure Sensor
  • 30VDC IP65 SS316L 100Mpa Precision Pressure Sensor
  • 30VDC IP65 SS316L 100Mpa Precision Pressure Sensor
30VDC IP65 SS316L 100Mpa Precision Pressure Sensor
Product Details:
Place of Origin: CHINA
Brand Name: KACISE
Certification: CE
Model Number: KPT100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000000pcs/month
Contact Now
Detailed Product Description
Range: -0.1...0~100Mpa Accuracy: ±0.25%F.S, ±0.5%F.S,
Output: 4-20mA, 0~5V, 0~10V Material: SS316L
Name: Precision Pressure Sensor Model: KPT100
High Light:

100Mpa Precision Pressure Sensor

,

SS316L Precision Pressure Sensor

,

IP65 Liquid Pressure Transmitter

Diffused silicon stainless steel high precision wide range absolute pressure general use pressure transmitter



Introduction

KPT100 pressure transmitter uses diffused silicon pressure core as the sensing element, selects the all-digital circuit, the overall performance is stable and reliable, can carry on the long-distance signal transmission.All stainless steel structure, easy to install.Has the extremely high anti-interference and the anti-impact ability. Widely used in pneumatic, hydraulic, water supply, fire protection, environmental protection, medical and other industries.

Application

  • All stainless steel construction
  • 316L stainless steel diaphragm
  • High precision, long - term stability
  • Strong anti - interference, anti - vibration, anti - impact
  • Protection level IP65
  • Wide range, can measure absolute pressure, gauge pressure and seal gauge pressure



Dimensions in mm



30VDC IP65 SS316L 100Mpa Precision Pressure Sensor 0

Specification

Pressure range -0.1...0~100Mpa Accuracy ≤0.25%F.S
Stability ≤0.1%/year Overload ≤200%F.S
Power Supply 12-30VDC Wiring Way A variety of optional
Protection IP65 Relative Humidity 0~90%RH
Environment temperature -30~80°C Medium temperature -40~150°C



Order Information



KPT100 Universal pressure transmitter
  Range Pressure range: -0.1MPa...0~100MPa
[0~X]bar X: Actual pressure range
  Code Signal output
I 4mA~20mA DC
V 0V~5V/10V DC
R RS485
  Code Electric connection
H Hirsman
M M12
P PG7 Cable
  Code Thread connection
M20 M20×1.5 Internal and external thread
G14 G1/4 Internal and external thread
G12 G1/2 Internal and external thread


Our Company

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.



30VDC IP65 SS316L 100Mpa Precision Pressure Sensor 130VDC IP65 SS316L 100Mpa Precision Pressure Sensor 230VDC IP65 SS316L 100Mpa Precision Pressure Sensor 330VDC IP65 SS316L 100Mpa Precision Pressure Sensor 4

30VDC IP65 SS316L 100Mpa Precision Pressure Sensor 530VDC IP65 SS316L 100Mpa Precision Pressure Sensor 630VDC IP65 SS316L 100Mpa Precision Pressure Sensor 7
