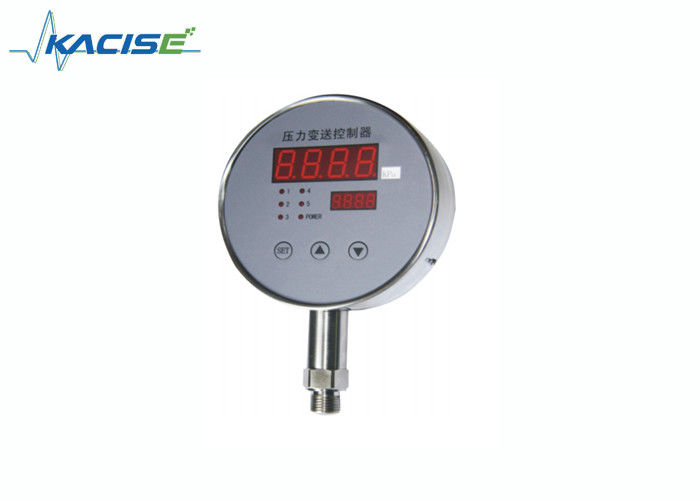

Diameter 150mm Dual 4 Digit SS316L KPC150 Accuracy 0.5% 220V or 24V input 5 Way Relay OutputPressure Controller

Diameter 150mm Dual 4 Digit SS316L KPC150 Accuracy 0.5% 220V or 24V input 5 Way Relay OutputPressure Controller

  • Diameter 150mm Dual 4 Digit SS316L KPC150 Accuracy 0.5% 220V or 24V input 5 Way Relay OutputPressure Controller
Diameter 150mm Dual 4 Digit SS316L KPC150 Accuracy 0.5% 220V or 24V input 5 Way Relay OutputPressure Controller
Product Details:
Place of Origin: CHINA
Brand Name: KACISE
Certification: CE
Model Number: KPC150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000000pcs/month
Contact Now
Detailed Product Description
Range: -0.1...0~100Mpa Accuracy: ±0.5%F.S,
Output: 4-20mA,RS485, 5 Way Relay Material: SS316L
Name: Precision Pressure Sensor Model: KPC150
Powre Supply: 220VAC Or 24VDC
High Light:

SS316L Pressure Controller

,

150mm Precision Pressure Sensor

,

RS485 Pressure Controller

Diameter 150mm Dual 4 digit LED Display 4-20mA or RS485 5 ways ralay output industrial intelligent pressure controller​



Introduction

The KPC150 intelligent pressure controller is an intelligent digital pressure measurement and control product that integrates pressure measurement, display, output, and five-way control. Stainless steel joint, diffused Silicon pressure core body, whole digital circuit board, display intuitive, simple operation, safe and reliable, switch point set on site. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the pressure of the fluid medium is measured and controlled, and the output(4-20mA) and RS485 network can be transmitted.

Application

  • Φ150 Standard Instrument Installation
  • Dual 4-digit LED displays, main screen 0.8 inches, secondary screen 0.36 inches
  • The second screen can display the maximum value, minimum value, percentage, the user can change at any time.
  • Industrial grade design, strong resistance to electromagnetic interference
  • Button adjust the parameter, easy to operate
  • Can be reset at site
  • 5 way relay, relay capacitor is 24V1.2A/220V3A
  • 4-20mA or RS485 output, network optional

Dimensions in mm



Diameter 150mm Dual 4 Digit SS316L KPC150 Accuracy 0.5% 220V or 24V input 5 Way Relay OutputPressure Controller 0


Specification



Pressure range -0.1...0~100Mpa Accuracy ≤0.5%F.S
Stability ≤0.1%/year Overload ≤200%F.S
Load capacitor 24VDC 1.2A/220VAC 3A Cable way Cable pin
Display 0.8’ + 0.36’ digital tube Power supply 24VDC/220VAC
Response time <30ms Switch type 5 way relay output







Order Information



KPC150 pressure controller
  Range Pressure range: -0.1MPa...0~100MPa
[0~X]bar X: Actual pressure range
  Code Output
I 4-20mA
R RS485
  Code Power Supply
D 24VDC
A 220VAC
  Code Thread connection
G12 G1/2
G14 G1/4
M20 M20*1.5
