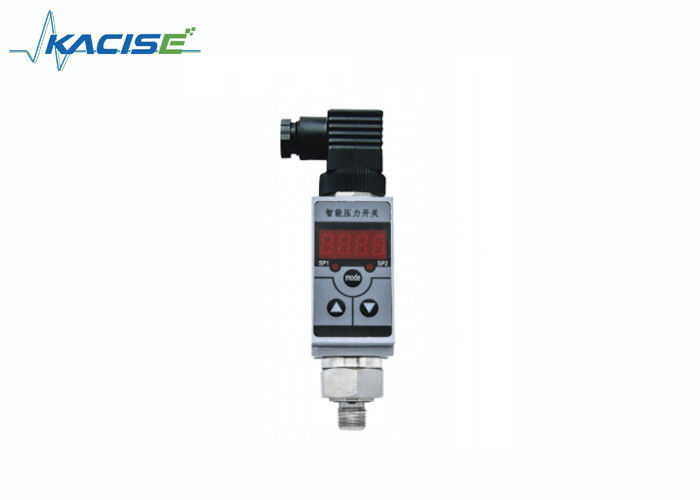

Button Tuning 24VDC NPN PNP Intelligent Pressure Switch

Button Tuning 24VDC NPN PNP Intelligent Pressure Switch

  • Button Tuning 24VDC NPN PNP Intelligent Pressure Switch
  • Button Tuning 24VDC NPN PNP Intelligent Pressure Switch
Button Tuning 24VDC NPN PNP Intelligent Pressure Switch
Product Details:
Place of Origin: CHINA
Brand Name: KACISE
Certification: CE
Model Number: KPC102
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000000pcs/month
Contact Now
Detailed Product Description
Range: -0.1...0~100Mpa Accuracy: ±0.5%F.S,
Output: 4-20mA, 2 Way Switch Output Display: 4digit LED Display
Name: Intelligent Pressure Switch Model: KPC102
Powre Supply: 12~30V Stability: ≤0.1%/year
High Light:

PNP Intelligent Pressure Switch

,

24VDC Intelligent Pressure Switch

,

NPN Precision Pressure Sensor

4 digit LED display two way NPN/PNP/Relay output 4-20mA optional button tuning present switch point pressure switch



Introduction

KPC102 intelligent digital pressure switch is a pressure measurement products which could display, output and control pressure. Composed of stainless steel joints, diffused silicon pressure sensor, all-digital circuit boards, it has the performance of the intuitive display, easy to operate, safe and reliable. The switch points could be set on site. It is widely used in hydropower, tap water, petroleum, chemical, machinery, hydraulic and other industries to measure and control the pressure of fluid media.

Application

  • 4-digit LED displays the current pressure value, no display value error
  • Fast switching rate, 300 times per second
  • Preset switching point and hysteresis switching output
  • The control point can be set freely between zero point and full point on site
  • Set the return difference freely
  • Button tuning and setting various parameters on site, easy to operate
  • Two-way switch output (NPN/PNP) with load capacity 1. 2A
  • 4-20mA analog output optional

Dimensions in mm

Pressure range -0.1...0~100Mpa Accuracy ≤0.5%F.S
Stability ≤0.1%/year Overload ≤200%F.S
Power Supply 12~30VDC Cable way M12/Hirsman
Display 4-digital tube Switch life time >1,000,000 times
Load capacitor 24VDC 1.2A Switch type NPN/PNP/Relay
Response time <5ms Display range -1999~9999



Specification

Button Tuning 24VDC NPN PNP Intelligent Pressure Switch 0



Order Information

KPC102 Digital pressure gauge
  Range Pressure range: -0.1MPa...0~100MPa
[0~X]bar X: Actual pressure range
  Code Electric connection
H Two ways of switch output
M 2 way switch + 1 way analog output
  Code Output Signal
P PNP
N NPN
J Relay
  Code Thread connection
G12 G1/2
G14 G1/4
M20 M20*1.5
