| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Model Number: | KUS series |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |

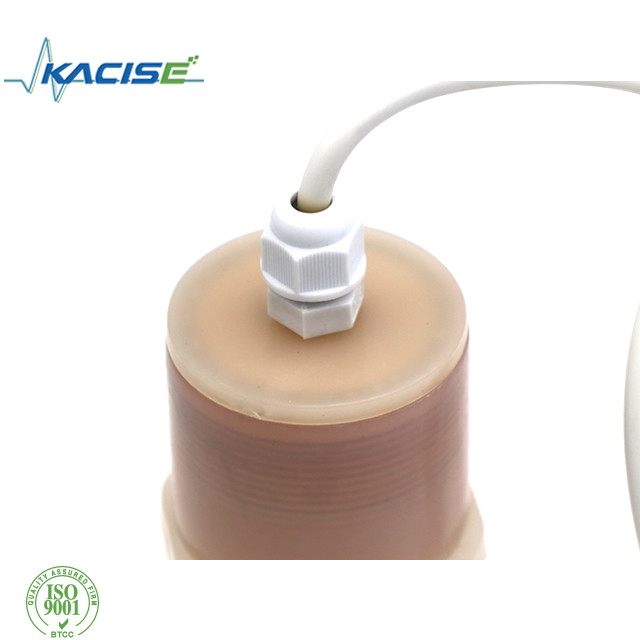

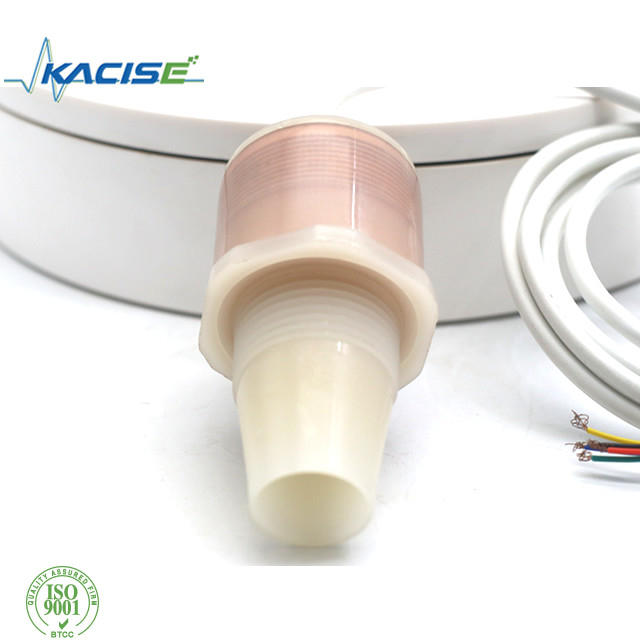

| Product: | Ultrasonic Distance Sensor | Detection Range: | 300mm~3000mm |
|---|---|---|---|
| Transducer Frequency: | Approx. 220kHz | Output: | RS485 + 4-20mA/0-10V |
| Input Power: | 3.3V~24V | IP Grade: | IP68 |
| High Light: | IoT Ultrasonic Distance Sensor,220kHz Ultrasonic Distance Sensor,3m Ultrasonic Transducer Sensor |
||
| 型号:KUS630 | |
| Measuring range | 0.6m... 10m |
Blind spot | 0 ... 0.6m(Unstable working area is within 0.6m, it is not recommended to work in this range); the minimum blind area version of 0.3m can be achieved, which needs to be customized. |
| Supply voltage | 3.3 ... 24 V DC , ripple 10 %SS |
Working current | ≤ 45 mA (fastest measurement speed) Low-power version, sleep power consumption is less than 0.3mA, sending power consumption is 20mA (less than 2ms), and receiving power consumption is not more than 8mA (less than 150ms) |
Output signal | 1:Programmable analog output 0-10V. 2:RS485 output. 3:Uart serial output 4:4-20mA output 5:Switch output |
| Measurement accuracy | ≤1 % |
| Temperature compensatin | yes |

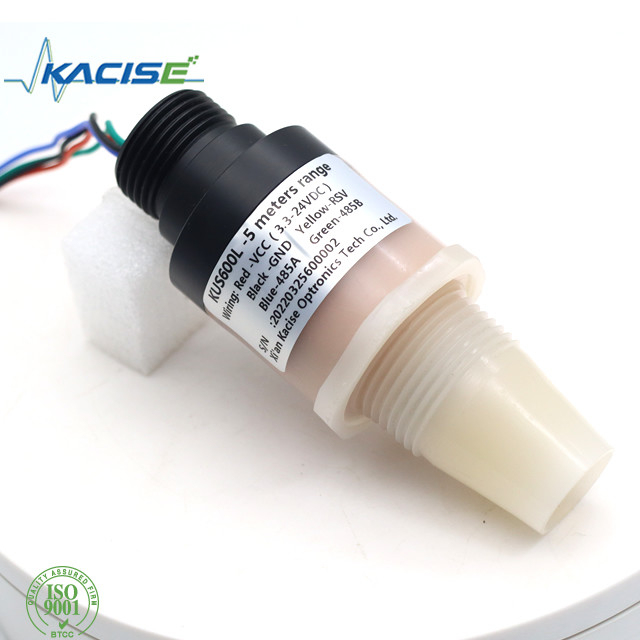

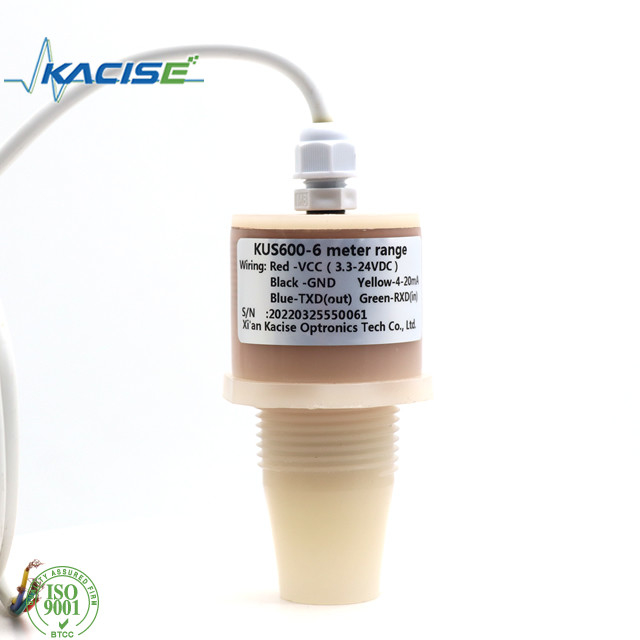

2. Electronic interface and signals definition
| Line order | Colour | Definition |
| 1 | Red | Power is positive |
| 2 | Black | power return ground |
| 3 | Yellow | Analog output, voltage output, current output switch output |
| 4 | Blue | RS485 A+ or uart TXD |
| 5 | Green | RS485 B- or uart RXD |
4. Sensor Function
analog
The analog output can be set through RS485, and the sensor can work in 8 modes. The specific reference is as follows:
Step 1: Connect to the host computer through serial port debugging assistant or modus debugging assistant.
Step 2, set a near point reference distance point.
Step 3, Set a far point reference point
Step 4, set the output voltage or current of the near-point reference point.
Step 5, set the output voltage or current of the far point reference point.
Step 6, set the analog output to switch characteristic selection.
Step 7, set the analog output as linear output or switch output option.
Step 8, reset the sensor to make the new parameters take effect.
8 working modes of the sensor.
1: Open window mode by default
2: Windowed mode is turned off by default
3: Single-point mode is turned on by default
4: Single-point mode is turned off by default
5: Single-point hysteresis mode is turned on by default
6: The single-point hysteresis mode is turned off by default
7: The presence or absence of detection mode is turned on by default
8: The presence or absence of detection mode is turned off by default
485 output data
485 output data is in MODBUS-RTU format. Refer to the software instruction manual for details.
5. Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
6. Ordering information
| KUS | Body size | OUTPUT | Max range | Description | |
| 600 | |||||
| Customized | Customized | ||||
| 4-20mA | 4-20mA mode output with RS485 MODBUS protocol | ||||
| 0-3.3V | The power supply range is 3.3 at least | ||||
| 0-5.0V | The power supply range is 5.0 at least | ||||
| RS485 | Power save mode with RS485 MODBUS protocol | ||||
| XX m | XX m is the maxim range can be detected, the default length is 1 meter | ||||
| KUS | 600 | RS485 | 3m | ||
