| Place of Origin: | CHINA |
| Brand Name: | kacise |
| Certification: | CE，ROHS |
| Model Number: | KBG602 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | $0-$2000 |
| Packaging Details: | Common package or custom package |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Measuring Range: | 0—300.0 K Cells/ml | Resolution: | 0.1 K Cells/ml (100 Cells/ml) |
|---|---|---|---|
| Accuracy: | ±3% | Calibration: | Two-point Calibration |
| Protection Class: | IP68 | Deepest Depth: | Underwater 20 Meters |
| High Light: | RTU Protocol water quality monitoring device,PVC Shell water turbidity sensor,Monitoring Red Algae water turbidity sensor |
||

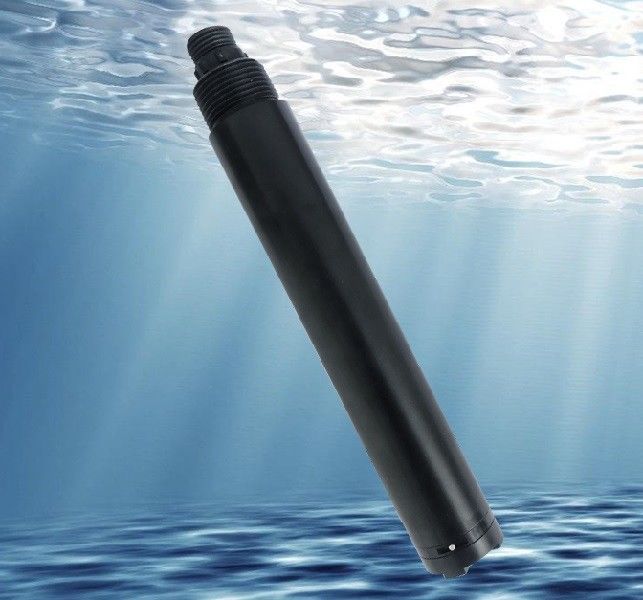

The blue green algae sensor utilizes the characteristic that the blue green algae has an absorption peak and an emission peak in the spectrum. The spectral absorption peak of the blue green algae emits monochromatic light to the water, and the blue green algae in the water absorbs the energy of the monochromatic light, releasing another wavelength. The monochromatic light of the emission peak, the light intensity emitted by the blue green algae is proportional to the content of blue green algae in the water.
| Item | Value |
| Measuring range | 0—300.0 K cells/ml |
| Resolution | 0.1 K cells/ml(100 cells/ml) |
| Accuracy | ±3% |
| Calibration | Two-point calibration |
| Protection grade | IP68 |
| Deepest depth | Underwater 20 meters |
| Storage temperature | -15～65℃ |
| Sensor interface | RS-485(Modbus/RTU) |
| Power information | 12～24 V DC ±10% |
| Power consumption | <0.3 W@12 V |
| Cable length | 5 meters, other lengths can be customized |
| Shell material | PVC |
| Item | Value |
| Conditional requirements | The distribution of blue green algae in water is uneven, and it is recommended to monitor more; |
Installation distance requirement: keep more than 5 cm with the side wall and 20 cm or more with the bottom.
a) Red line - power cord (12 ~ 24 V DC)
b) Black line - ground (GND)
c) Blue line - 485 A
d) white line - 485 B
e) bare wire - shielded wire
After wiring is completed, it should be carefully checked to avoid incorrect connections before powering up.
Cable specification: Considering that the cable is immersed in water (including sea water) for a long time or exposed to the air, the cable has certain corrosion resistance. The outer diameter of the cable is Φ6 mm and all interfaces are waterproof.
6.1.1 Maintenance Schedule
The cleanliness of the measurement window is very important to maintain accurate readings.
Calibrate the sensor (if required by the competent authority) according to the maintenance schedule required by the competent authority
| Maintenance task | Recommended maintenance frequency |
| Calibrate the sensor (if required by the competent authority) | According to the maintenance schedule required by the competent authority |
6.1.2 Maintenance Methods
6.1.3 Precautions
The probe contains sensitive optical and electronic components. Make sure the probe is not subject to severe mechanical shock. There are no parts inside the probe that require user maintenance.
a) Zero calibration: Take a proper amount of distilled water in a large bucket and place the sensor vertically in the solution. The front end of the sensor is at least 20 cm away from the bottom of the beaker. After 3 to 5 minutes, the value is stabilized and the zero point is calibrated. The instructions refer to the appendix.
b) Slope calibration: Place the sensor probe in the standard solution. The front end of the sensor is at least 20cm away from the bottom of the beaker. After 3 to 5 minutes, the slope is calibrated after the value is stable. The instructions refer to the appendix.
| Error | Possible Reason | Solution |
| The operation interface cannot be connected or the measurement result is not displayed. | The measured value is too high, too low or the value is continuously unstable | Reconnect controller and cable |
| Cable failure | Please contact us | |
| The measured value is too high, too low or the value is continuously unstable | The sensor window is attached by a foreign object | Cleaning the sensor window surface |
testing equipment and means, and strictly in accordance with the regulations, to do 72-hour aging test and stability test on the product, and not to allow one unqualified product to leave the factory.
This product includes:
The company provides local after-sales service within one year from the date of sale, but does not include damage caused by improper use. If repair or adjustment is required, please return it, but the shipping cost must be conceited. Damaged on the way, the company will repair the damage of the instrument for free.
