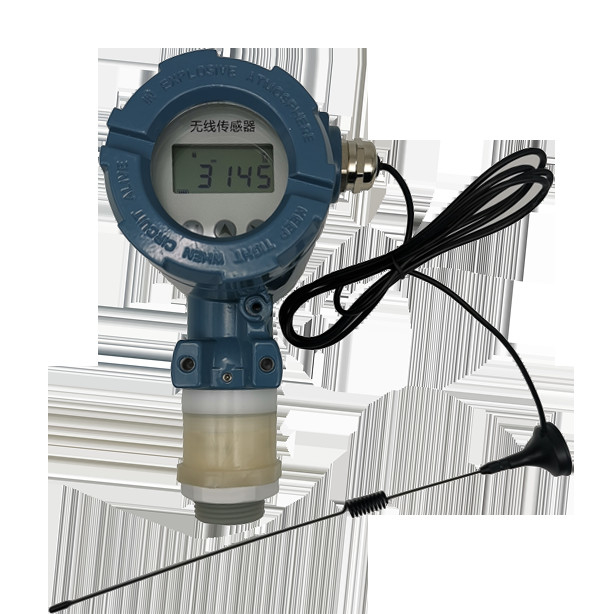

Ultrasonic LCD Display Wireless Level Transmitter 125khz 200Kbs Bandwidth

Ultrasonic LCD Display Wireless Level Transmitter 125khz 200Kbs Bandwidth

  • Ultrasonic LCD Display Wireless Level Transmitter 125khz 200Kbs Bandwidth
Ultrasonic LCD Display Wireless Level Transmitter 125khz 200Kbs Bandwidth
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KUS650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton/wooden case, or customers requests
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Theory: Ultrasonic Sensor Type: Waterproof Ip65
Material: Aluminum Or Plastic Center Frequency: 25khz +- 1khz
Warranty: 12 Months Package: Anti-static Bag & Box
High Light:

LCD Wireless Level Transmitter 125khz

,

200Kbs Wireless Level Transmitter

,

EN 60529 Wireless Level Transmitter

LCD Display Ultrasonic Level Transmitter Vertical Installation



Power supply: two DC3.6V disposable lithium batteries
◆ Wireless transmit power: <23 dBm
◆ Receiving sensitivity: <-135 dBm
◆ Theoretical bandwidth: 200Kbs
◆ Support wireless transmission of alarm status to server, server address and port can be configured
◆ Adopt precision digital temperature compensation and nonlinear correction technology, wide temperature range and full range precision compensation;
◆ A variety of data type indication (percentage, output current display);
◆ Special wide temperature LCD display (-30℃~80℃);
◆ Provide multiple power supply methods at the same time;
◆ Vertical installation or axial installation, providing a variety of liquid level/level interface and interface materials;
◆ With parameterized LCD and three setting buttons.
◆ According to user needs and site conditions, the collection frequency and collection time interval can be set.
◆ Battery power monitoring, when the power is low, the meter screen flashes and prompts to report to the centralized management platform at the same time.
◆ Water pressure/water level alarm threshold can be set and modified according to actual needs.
◆ Automatic alarm for water pressure/water level alarm threshold.



technical parameters

Enter

Measured variable

Liquid level, material level

Maximum measuring range

20-15000mm(Can be customized according to needs)

Output

Comprehensive accuracy

±1%FS/ 0.15℃

Temperature compensation

-10℃~70℃

Vibration influence

< ± 0.05%/g,All directions500Hz (conform to IEC 68 -2-64)

Rated conditions

Environmental conditions

Ambient temperature

-25~+85℃

Storage temperature

-40~+85℃

Protection level

IP65 ,conform to EN 60529

Electromagnetic Compatibility

EN 61326/A2 appendix A (2001 )

Display and control

show

SFTN LCD, white backlight, 5-digit display.

Limit value

Free setting

parameter settings

Use 3 buttons

unit

mm, the default unit is m.

weight

About 1.35kg

Non-liquid parts material

Connector

1NPT, stainless steel, length 20mm (materials and joint specifications can be customized according to customer requirements).

Electrical connections

Make the waterproof connector and air hole cable entrance comply with EN 175301 -803A standard

Measurement period

≤ 100ms

Selection reminder: For special requirements, please contact our company and indicate in the order.

Precautions:

1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.

2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
