| Place of Origin: | China |
| Brand Name: | Kacise |

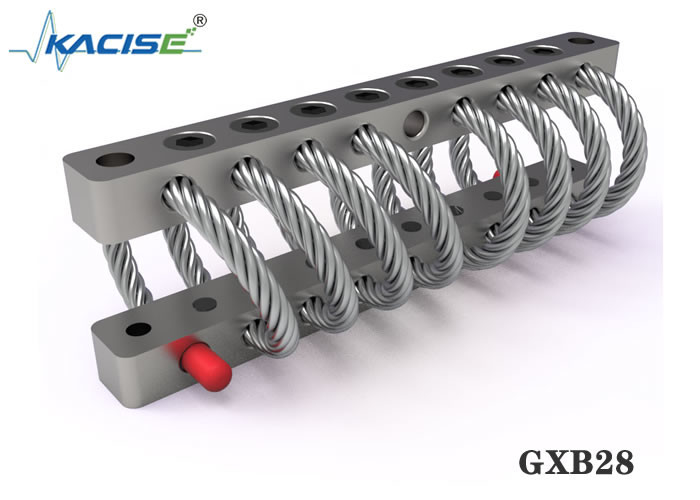

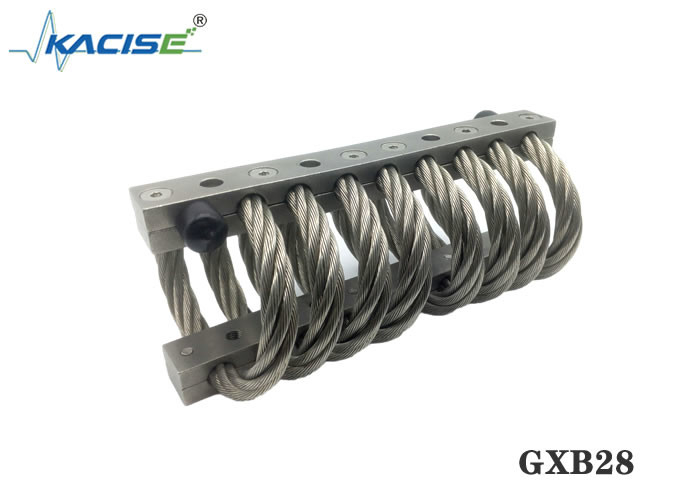

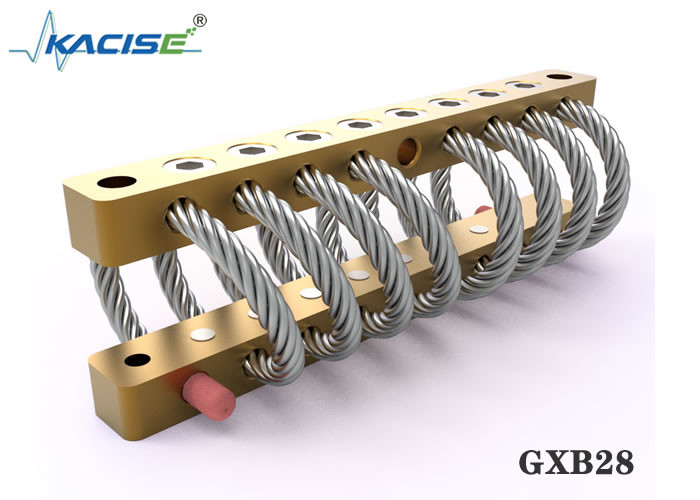

| Model Number: | GXB28-950 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Length: | 370mm | Width: | 286mm |
|---|---|---|---|
| High: | 227mm | Mounting Holes: | M12 |
| Resonant Frequency: | 5-10HZ | Outer Mounting Hole Distance/L1(mm): | 268/266.7 |
| Inner Mounting Hole Distance/L2(mm): | 114/114.3 | Maximum Vertical Deformation (mm): | 132.2 |
| Vertical Static Load (Kg): | 374 | Vertical Static Stiffness (Kg/mm): | 37.7 |
| Vertical Dynamic Stiffness (Kg/mm): | 13.8 | 45° Maximum Deformation (mm): | 180 |
| 45° Static Load (Kg): | 211 | 45°Static Stiffness(Kg/mm): | 21 |
| 45° Dynamic Stiffness (Kg/mm): | 7 | Maximum Deformation Of Side Suspension (mm): | 140 |
| Side Hanging Static Load (Kg): | 76 | Side Hanging Static Stiffness (Kg/mm): | 7.7 |
| Side Suspension Stiffness (Kg/mm): | 5.6 | Material: | SS304 |
| Weight (kg): | 13.9 | Whether To Support Product Customization: | Yes |
Product Description
Solving Shock and Vibration Problems
Shock and vibration rank among the most destructive agents in industrial environments. These disturbances erode the life of mechanical and electronic equipment – driving machinery from service long before necessary. Sometimes this premature deterioration stems from repeated overstress loadings, sometimes from fatigue failures of vital parts, and sometimes from a combination of both.
Kacise offers a variety of wire rope isolators that resolve shock and vibration issues in virtually any application. By selecting wire rope with the proper characteristics – wire diameter, number of strands, cable length, cable twist or lay, and the number of cables per section, we have created wire rope isolators that provide superior equipment protection. Ideally, passive isolation systems require no maintenance, use little space, and keep functioning under varying temperatures and in corrosive environments.
Product Size Chart
| Product number | High(mm) | Width(mm) | Product weight(kg) | Installation method | Hole size(mm) | Thread size(mm) | Counterbore taper | |
| JGX-286-8-X-16860-A-S | 216 | ± 6.35 | 286 | 13.9 |
A, B, C, D, E, S |
Ø13.5 + 0.13- 0.38 | M12X1.75 | 90° |
Press Fit Test Data Sheet
| Curve number | Product number | Static load(N) | Maximum deformation (mm) | Vibration stiffness Kv kN/m | Impact stiffness Ks kN/m |
| 1 | JGX-286-8-X-16860-A-S | 3740 | 125.7 | 377 | 138 |
45° Inclined Press Fitting Load Test Data Sheet
| Curve number | Product number | Static load(N) | Maximum deformation (mm) | Vibration stiffness Kv kN/m | Impact stiffness Ks kN/m |
| 1 | JGX-286-8-X-16860-A-S | 2110 | 177.8 | 212 | 70 |
Shear Rolling Load Test Data Sheet
| Curve number | Product number | Static load(N) | Maximum deformation (mm) | Vibration stiffness Kv kN/m | Impact stiffness Ks kN/m |
| 1 | JGX-286-8-X-16860-A-S | 760 | 132.1 | 77 | 77 |
Wire rope vibration isolators have the following advantages:
Product structure diagram
Guide for installation of wire rope isolator
1. Before installation, please carefully check whether the mounting hole matches the mounting hole of the vibration isolator, such as whether the thread is the same, etc.
2, the installation hole is clean, there is no burr, rust, damage and other defects.
3. Since the vibration isolator is an elastic component, it needs a little movable space when working. Before installation, please carefully check whether there is any equipment affecting installation in the installation part and whether the movable space of the vibration isolator is enough. Please check whether the vibration isolator is in good condition and has no defects before installation.
4. Prepare a suitable screwdriver and crowbar.
5, first install the isolator to heavy equipment or fixed equipment, installation screws do not need to tighten, so that the isolator can be slightly active.
6. Install the connecting device on the other side of the vibration isolator. If the mounting hole is slightly misaligned, you can move the vibration isolator or use a crowbar to align the mounting hole of the vibration isolator with the mounting hole of the equipment, and then screw the fixing screw.
7. After fixing the device position, tighten all the fixing screws.
Application
