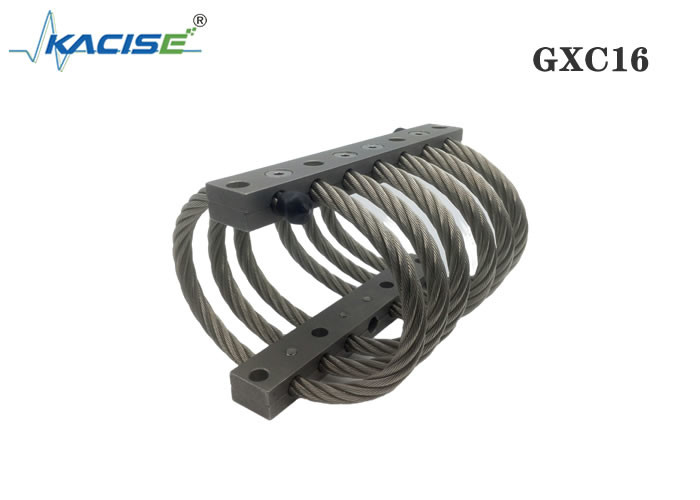

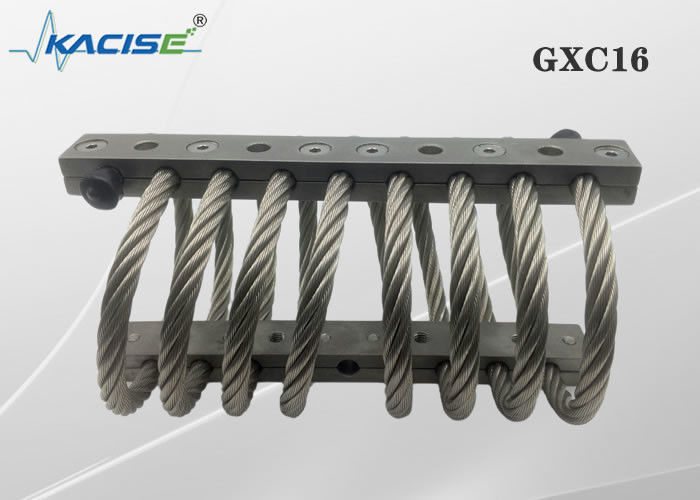

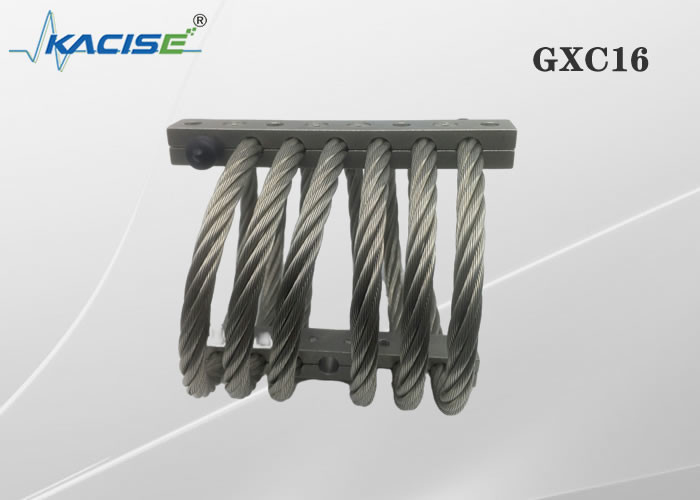

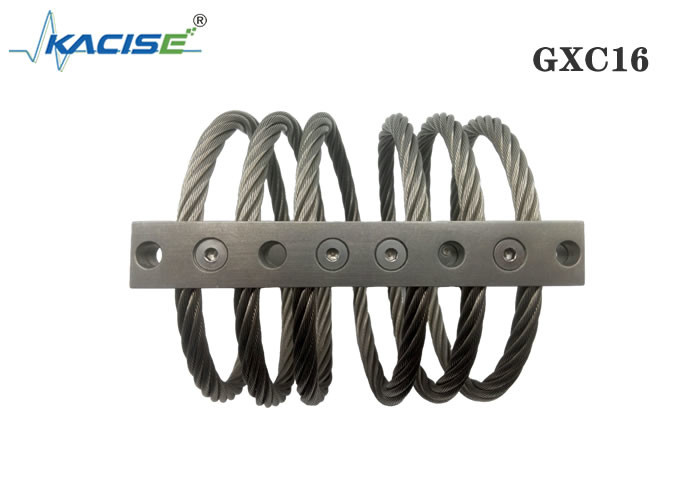

| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | GXC16 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Length: | 178mm | Width: | 92/102/105/121/133/144/156/180 Mm |
|---|---|---|---|
| High: | 76/83/89/95/108/124/137/155mm | Mounting Holes: | M8 |
| Resonant Frequency: | 5-10HZ | Outer Mounting Hole Distance/L1(mm): | 156/155.6 |
| Inner Mounting Hole Distance/L2(mm): | 66/66.6 | Maximum Vertical Deformation (mm): | 32/38/43.2/48.8/59/74.7/85.9/102 |
| Vertical Static Load (Kg): | 273/229/216/173/146/129/113/91 | Vertical Static Stiffness (Kg/mm): | 71/53/46/34/25/20/15/11 |
| Vertical Dynamic Stiffness (Kg/mm): | 35/24/20/14/10.3/7.2/5.2/3.7 | 45° Maximum Deformation (mm): | 44.7/52.8/61/68/84/105/121/144 |
| 45° Static Load (Kg): | 193/162/153/122/104/91/80/62 | 45°Static Stiffness(Kg/mm): | 40/29.8/26/19/14/11/8.8/6.2 |
| 45° Dynamic Stiffness (Kg/mm): | 17.7/12.6/10.5/7.4/5.3/3.7/2.8/2 | Maximum Deformation Of Side Suspension (mm): | 33/40/45/50/56.9/77.7/90/107 |
| Side Hanging Static Load (Kg): | 149/122/113/91/60/44/33/22 | Side Hanging Static Stiffness (Kg/mm): | 22/15.6/13/9/6/4.6/3.3/2.2 |
| Side Suspension Stiffness (Kg/mm): | 18/12.5/10/7/4/3/2.8/1.7 | Material: | SS304 |
| Weight (kg): | 1.36/1.4/1.5/1.67/1.8/2.02/2.18/2.31 | Whether To Support Product Customization: | Yes |
| High Light: | Shock Absorbing Wire Rope Vibration Isolator,Omni Directional Wire Rope Isolator,10HZ Wire Rope Vibration Isolator |
||
Performance
Stiffness (Kv or Ks):
Wire rope isolators exhibit non-linear stiffness behavior. Small deflections, usually associated with vibration isolation, will have a different spring rate than larger shock deflections. We publishes typical vibration stiffness values (Kv), and average shock stiffness values (Ks) within the catalog. These values can be used with the provided equations listed on Page 6 to predict system performance. The stiffness values listed in the catalog are for full-loop versions. For reduced loop versions, ratio the stiffness by dividing the number of desired loops by the number of full loops.
Wire rope is nonlinear vibration isolator's stiffness. Shape variable under the condition ofsmall and large, the vast differences in the stiffness hardness.
The user can according to the parameters of the product has been tested in the manual and we deduce the formula of calculation and selection, also can contact us, our engineers will provide you with selection guide.
Product Size Chart
| Product number | High(mm) | Width(mm) | Product weight(kg) | Installation method | Hole size(mm) | Thread size(mm) | Counterbore taper | |
| JGX-127-8-X-3648-A-S | 76 | ± 2.54 | 92 | 1.81 | A, B, C, D, E, S | Ø9.0 +0.13-0.38 | M8X1.25 M7X1.0 | 90° |
| JGX-127-8-X-3047-A-S | 83 | 102 | 1.91 | |||||
| JGX-127-8-X-2869-A-S | 89 | 105 | 2 | |||||
| JGX-127-8-X-2313-A-S | 95 | 121 | 2.22 | |||||
| JGX-127-8-X-1957-A-S | 108 | 133 | 2.4 | |||||
| JGX-127-8-X-1735-A-S | 124 | 144 | 2.7 | |||||
| JGX-127-8-X-1512-A-S | 137 | 156 | 2.9 | |||||
| JGX-127-8-X-1201-A-S | 155 | 180 | 3.09 | |||||
Pz direction press fit test data sheet
| Curve number | Product number | Static load(N) | Maximum deformation (mm) | Vibration stiffness Kv kN/m | Impact stiffness Ks kN/m |
| 1 | JGX-127-8-X-3648-A-S | 3648 | 32 | 954 | 471 |
| 2 | JGX-127-8-X-3047-A-S | 3047 | 38.1 | 708 | 333 |
| 3 | JGX-127-8-X-2869-A-S | 2869 | 43.2 | 613 | 278 |
| 4 | JGX-127-8-X-2313-A-S | 2313 | 48.8 | 457 | 196 |
| 5 | JGX-127-8-X-1957-A-S | 1957 | 59.9 | 340 | 137 |
| 6 | JGX-127-8-X-1735-A-S | 1735 | 74.7 | 261 | 96 |
| 7 | JGX-127-8-X-1512-A-S | 1512 | 85.9 | 207 | 74 |
| 8 | JGX-127-8-X-1201-A-S | 1201 | 102.6 | 148 | 49 |
45° Inclined Press Fitting Load Test Data Sheet
| Curve number | Product number | Static load(N) | Maximum deformation (mm) | Vibration stiffness Kv kN/m | Impact stiffness Ks kN/m |
| 1 | JGX-127-8-X-3648-A-S | 2580 | 44.7 | 539 | 236 |
| 2 | JGX-127-8-X-3047-A-S | 2157 | 52.8 | 398 | 168 |
| 3 | JGX-127-8-X-2869-A-S | 2046 | 61 | 349 | 138 |
| 4 | JGX-127-8-X-2313-A-S | 1624 | 68.6 | 259 | 98 |
| 5 | JGX-127-8-X-1957-A-S | 1401 | 84.8 | 193 | 68 |
| 6 | JGX-127-8-X-1735-A-S | 1223 | 105.7 | 147 | 49 |
| 7 | JGX-127-8-X-1512-A-S | 1068 | 121.9 | 117 | 37 |
| 8 | JGX-127-8-X-1201-A-S | 823 | 144.8 | 83 | 25 |
Shear Rolling Load Test Data Sheet
| Curve number | Product number | Static load(N) | Maximum deformation (mm) | Vibration stiffness Kv kN/m | Impact stiffness Ks kN/m |
| 1 | JGX-127-8-X-3648-A-S | 2936 | 33 | 294 | 294 |
| 2 | JGX-127-8-X-3047-A-S | 1713 | 40.1 | 207 | 207 |
| 3 | JGX-127-8-X-2869-A-S | 1557 | 45.2 | 173 | 173 |
| 4 | JGX-127-8-X-2313-A-S | 1201 | 50.8 | 121 | 121 |
| 5 | JGX-127-8-X-1957-A-S | 801 | 56.9 | 81 | 81 |
| 6 | JGX-127-8-X-1735-A-S | 601 | 77.7 | 60 | 60 |
| 7 | JGX-127-8-X-1512-A-S | 445 | 90.9 | 46 | 46 |
| 8 | JGX-127-8-X-1201-A-S | 289 | 107.7 | 30 | 30 |
Isolator Axes:
Wire rope isolators are multi-axis isolators. The diagram below includes load axis definitions and deflection considerations.
Damping: Typically 5-15%, depending on size and input level. For specific damping considerations, please consult Kacise.
Product Size Chart
Installation
We offer a full range of installations, including, the hole is installed, countersunk head screw to install, thread installation, the choices of upper and lower splints and mounting holes can be flexible configuration. We provide two order standard inch and metric, meet the domestic and foreign equipment, import and export of equipment requirements. Steel wire rope laps, customers can according to our product specification in accordance with the number of turns of wire rope product selection and booking. The least number of turns is 2 laps, the most commonly used is 12 laps, can also be customized according to customer's request.
Application
