| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUFF2000 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 280~322USD/pc |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Accuracy: | ±1% | Velocity Range: | 0~±10m/s, Bi-directional Measurement |
|---|---|---|---|
| Pipe Size: | DN50~DN6000 | Temperature: | - 30~160℃ |
| Power Supply: | DC8~36V Or AC85~264V. AC85~264V.( Optional, With Water Proof Power Adapter) | Interface: | RS485, Support MODBUS |
| Data Storage: | SD Card Regularly Store The Pre-set Results (optional) | ||
| High Light: | Pipe Ultrasonic Flow Meter,Fixed Insertion Ultrasonic Flow Meter,Clamp On Ultrasonic Flow Meter |
||
KUF2000 Series Insertion Ultrasonic Flow Meter
Introduction
KUF2000 series insertion type ultrasonic flow meter consists of the meter and insertion transducer.
Install the transducer by opening two holes on the pipeline. No need to cutoff water by using the specialized tool. Transducers are in direct contact with fluid, which make the measurement more steady and reliable.
If connecting Pt100 temperature transducer, it can realize the heat/energy measurement.

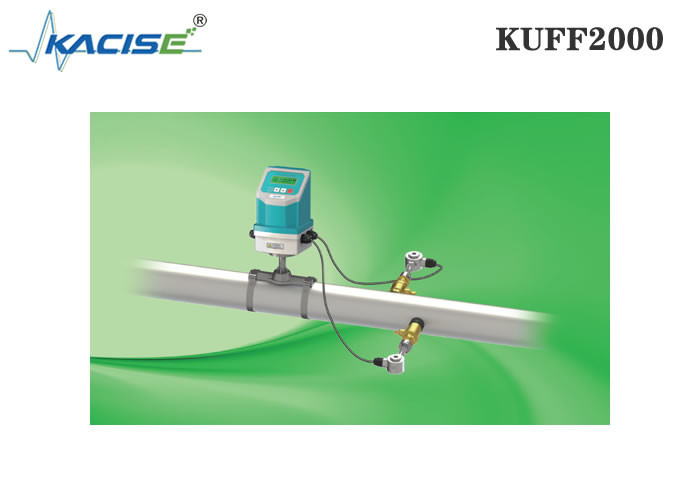

Both the main unit and sensor of the KUFF2000 flow meter are fixed on the pipe.
Suitable for pipe sizes from DN50mm to DN6000mm.
Working Condition
| Main Unit | Sensor | |
| Protection | IP68 | IP68 |
| Temperature | -20~60℃ | -30~160℃ |
Basic Parameters
| Accuracy | ±1% |
| Velocity Range | 0~±10m/s, Bi-directional measurement |
| Pipe Size | DN50~DN6000 |
| Temperature | - 30~160℃ |
| Type of Liquid | Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc |
| Pipe Material |
Carbon steel, stainless steel 304, stainless steel 316. Flange standard GB/T9119-2000, GB/T81-94 |
| Signal Output |
1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output |
| Signal Input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Data Storage | SD card regularly store the pre-set results (optional) |
| Power Supply |
DC8~36V or AC85~264V. AC85~264V.( optional, with water proof power adapter) |

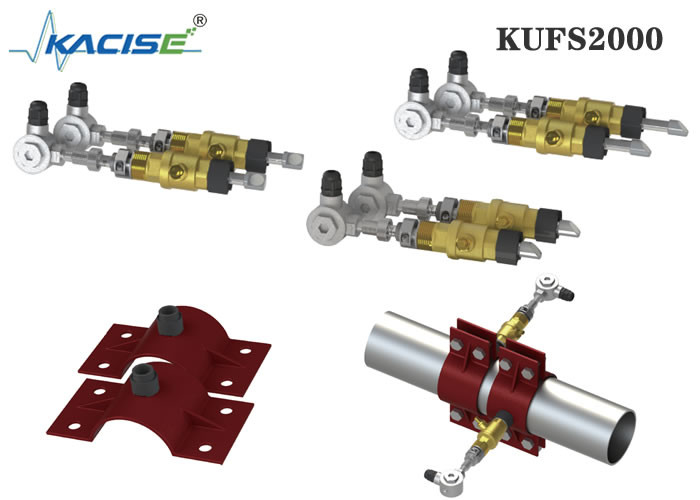

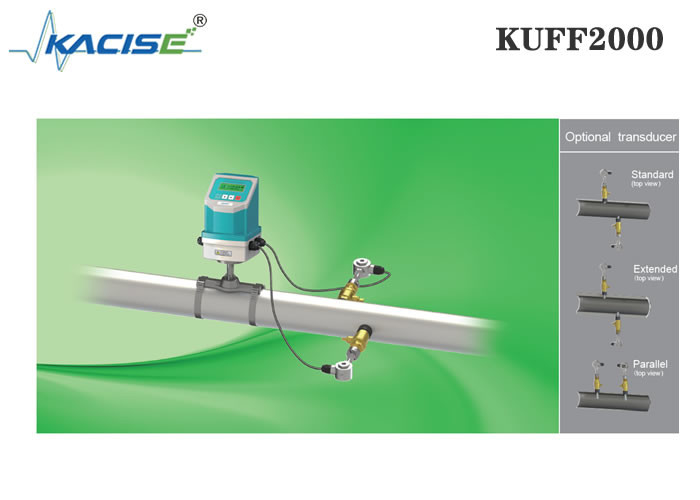

Optional Insertion Sensors
Standard Insertion Sensor
· Suitable for the pipeline can be directly welded, like carbon steel and stainless.
· Pipeline thickness ≤ 2 0
· Measuring range: DN50~DN6000
· Temperature range:-30~+160℃
Extended Insertion Sensor
· Suitable for the pipeline cannot be directly welded, like cement pipe, cast iron, PVC, steel or composite material.
· Pipeline thickness ≤ 7 0
· Measuring range: DN50~DN6000
· Temperature range:-30~+160℃
Parallel Insertion Sensor
· Suitable for installation of insufficient space.
· Suitable for either weldable or non-weldable pipeline.
· Unlimited pipeline thickness, insertion depth=1/3 inner diameter.
· Measuring range: DN80~DN6000
· Temperature range: -30~+160℃
Pipe Clamp
By using pipe clamp, the insertion sensor can be installed without welding. There is no need to cut off water during installation. Especially suitable for cement pipe, cast iron pipe, PVC, copper pipe or composite material.
