| Place of Origin: | Shanxi, China |
| Brand Name: | KACISE |
| Certification: | NSF, CE |
| Model Number: | KTF Series |
| Price: | $200.00 - $1,000.00/pieces |
|---|---|
| Packaging Details: | Carton or customers requests available<br>Turbine diesel fuel meter |
| Supply Ability: | 1000 Piece/Pieces per Week Turbine diesel fuel meter |
| Name: | KTF Series | Product Name: | KTF-M Mini Turbine Diesel Fuel Flow Meter |
|---|---|---|---|
| Medium: | Oil, Diesel, Fuel, Liquid | Application: | Gas Station, Diesel Etc |
| Accuracy: | ±1% | Max Pressure: | 20.0bar |
| Pressure Lose: | 2.0bar | Temp. Range: | -10°C~+100°C |
| Installation Mode: | Horizontal Installation | Port: | Tianjin Or Other |
| High Light: | 20bar Diesel Fuel Meter,Turbine Diesel Fuel Meter,Mini Turbine Flow Meter |
||

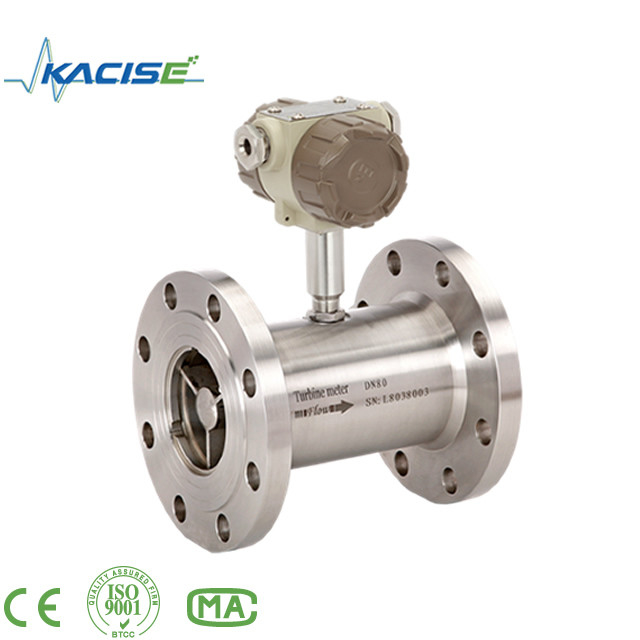

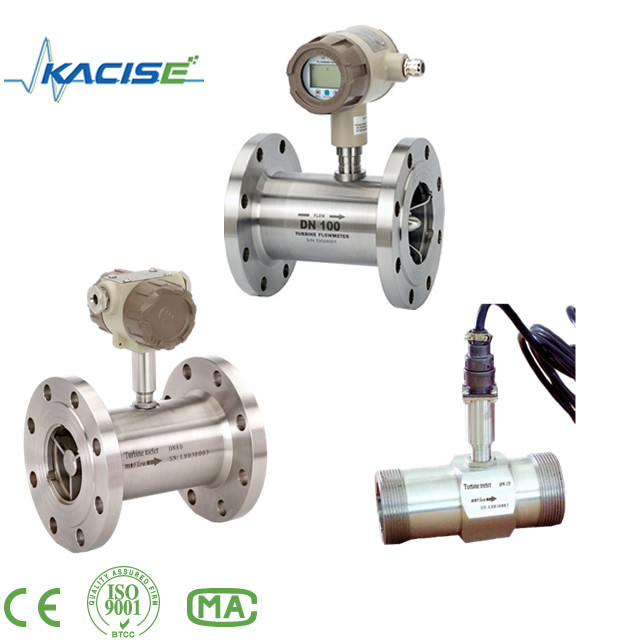

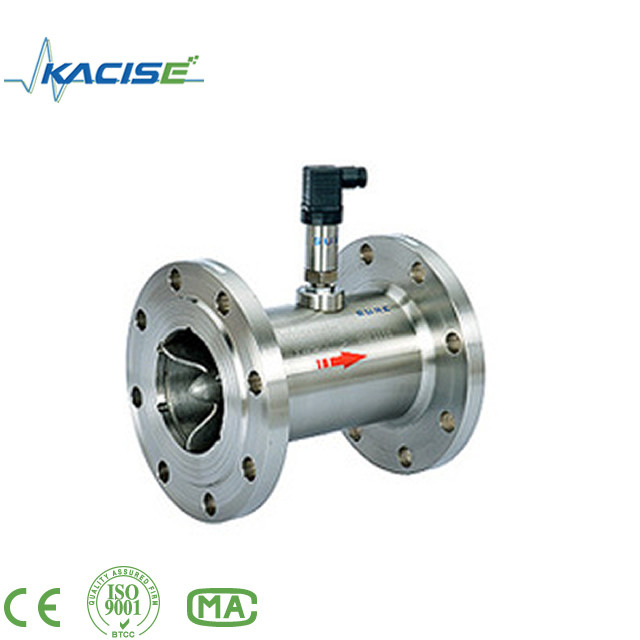

Mini Turbine Diesel Fuel Meter
Description of Mini turbine diesel fuel meter
Mini turbine diesel fuel meter is the use of advanced low-power single-chip microprocessor technology developed turbine flow sensor and display totalizer integration of new smart meter, with a compact structure, intuitive readings clear, high reliability, without outside power interference, anti-lightning, obvious low cost advantage, it is widely used to measure the closed pipe and stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3, carbide not corrode, and no fibers, particles and other impurities, kinematic viscosity at operating temperature is less than 5 × 10-6m² / s of liquid, for kinematic viscosity more than 5 × 10-6m² / s of liquid, can be quantitative control, excessive alarm, etc., is an ideal flow metering and energy meter.
Measurement objects: oil, organic liquids, inorganic liquid, liquefied petroleum gas, natural gas, coal gas and cryogenic fluids.
Features
Mini turbine diesel fuel meter repeatability ±0.25% has strong corrosion resistance, suitable for high temperature, high pressure and harsh environments.
|
Parameter |
Value |
|||
|
Range |
Diameter(mm) |
Measuring range(L/min) |
Meter factor (cm3/imp) |
|
|
1.15 |
0.035~1.60 |
0.50 |
||
|
1.30 |
0.010~1.86 |
0.60 |
||
|
1.50 |
0.045~2.08 |
0.67 |
||
|
2.00 |
0.085~2.32 |
1.02 |
||
|
2.50 |
0.120~2.40 |
1.44 |
||
|
3.70 |
0.150~3.00 |
2.28 |
||
|
Max pressure |
20.0bar |
|||
|
Pressure lose |
2.0bar |
|||
|
Temp. range |
-10°C/+100°C |
|||
|
Accuracy level |
±1% |
|||
|
Pipe connection |
G1/4 Internal thread(Customizable) |
|||
|
material |
Shell |
Green Brass(Lead-free copper) |
||
|
Bearing |
INO×18/8(1.4305) stainless steel |
|||
|
Impeller |
PVDF |
|||
|
Magnet |
SrFeO(Ceramics, ultrasonic soldering) |
|||
|
Seal |
MVQ(Silicone rubber "O" type ring) |
|||
|
Installation mode |
Horizontal installation |
|||
|
Dimension(L×B×H) |
55×40×47mm |
|||
|
Weight |
About 300g |
|||
|
Certification |
NSF,CE |
|||
Parameter
|
Parameter |
Value |
Unit |
|
|
Diameter |
Thread |
4, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80 |
mm |
|
Flange |
15, 20, 25, 32, 40, 50, 65, 80, 100, 125,150, 200 |
mm |
|
|
Plug-in |
150, 200, 250, 300, 350, 400, 500~1100 |
mm |
|
|
Accuracy |
±1, ±0.5, ±0.2(customized) |
%R |
|
|
Range ratio |
1:10, 1:15, 1:20 |
|
|
|
Sensor material |
304, 316(L) stainless steel etc. |
|
|
|
Working environment |
Medium temp. |
-20~120 |
°C |
|
Ambient temp |
-20~60 |
°C |
|
|
Relative humidity |
5%~90% |
|
|
|
Atmospheric pressure |
86~106 |
KPa |
|
|
Signal output |
Pulse,4~20mA |
|
|
|
Comm interface |
RS485,HART etc. |
|
|
|
Power supply |
External power |
+24+15%,Ripple ≤±5%, Applying to 4~20mA,Pulse,RS485 |
VDC |
|
Internal power |
1 group 3.0V10AH lithium battery, working voltage 2.0~3.0V |
|
|
|
Signal line interface |
Basic type |
Houseman connector or own three-core cable |
|
|
Explosion proof type |
Internal thread M20×1.5 |
|
|
|
Explosive-proof grade |
ExiaIICT4 or ExdIIBT6 |
|
|
|
Protection level |
IP65 or higher(customized) |
|
|
According to customer demand, we can customize the corresponding parameters.
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
We supply high quality Sanitary Hygienic Stainless Steel Electromagnetic Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty for flow meter?
A: Yes, we have the warranty of 12 months.
