| Place of Origin: | Shanxi, China |
| Brand Name: | KACISE |
| Model Number: | KTFL Series |
| Price: | $200.00 - $1,000.00/pieces |
|---|---|
| Packaging Details: | Carton or customers requests available<br>Diesel flow meter |
| Supply Ability: | 1000 Piece/Pieces per Week oil flow meter |
| Name: | Oil Flow Meter | Application: | Gas Station |
|---|---|---|---|
| Keywords: | Oil Flow Meter | Accuracy: | 0.5%, 1% |
| Medium: | Diesel Oil | Type: | Turbine Flow Meter |
| Power Supply: | 24VDC | Output: | 4-20mA /RS485 |
| Port: | Tianjin Or Other | ||
| High Light: | 1% Accuracy Turbine Flow Meter,Diesel Oil Turbine Type Flow Meter,24VDC Turbine Flow Meter |
||
Remote Peak Oil Diesel Turbine Flow Meter

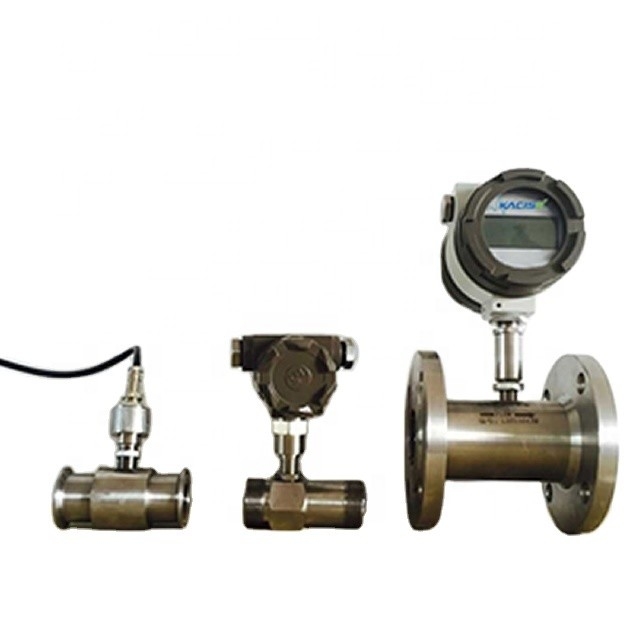

Details show of flow meter
Turbine flow meter is the use of advanced low-power single-chip microprocessor technology developed turbine flow sensor and display totalizer integration of new smart meter, with a compact structure, intuitive readings clear, high reliability, without outside power interference, anti-lightning, obvious low cost advantage, it is widely used to measure the closed pipe and stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3, carbide not corrode, and no fibers, particles and other impurities, kinematic viscosity at operating temperature is less than 5 × 10-6m² / s of liquid, for kinematic viscosity more than 5 × 10-6m² / s of liquid, can be quantitative control, excessive alarm, etc., is an ideal flow metering and energy meter.
Measurement objects: oil, organic liquids, inorganic liquid, liquefied petroleum gas, natural gas, coal gas and cryogenic fluids.
Features of diesel flow meter
Applications of peak flow meter
Specifications of remote peak oil diesel turbine flow meter
|
Paremeter |
Value |
Unit |
|
|
Diameter |
Thread |
4, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80 |
mm |
|
Flange(Clamp) |
15, 20, 25, 32, 40, 50, 65, 80, 100, 125,150, 200 |
mm |
|
|
Insertion |
150, 200, 250, 300, 350, 400, 500~1100 |
mm |
|
|
Accuracy |
±1, ±0.5, ±0.2(customized) |
%R |
|
|
Range ratio |
1:10, 1:15, 1:20 |
|
|
|
Sensor material |
304, 316(L) stainless steel etc. |
|
|
|
Working environment |
Medium temp. |
-20~120 |
°C |
|
Ambient temp |
-20~60 |
°C |
|
|
Relative humidity |
5%~90% |
|
|
|
Atmospheric pressure |
86~106 |
KPa |
|
|
Signal output |
Pulse,4~20mA |
|
|
|
Comm interface |
RS485,HART etc. |
|
|
|
Power supply |
External power |
+24+15%,Ripple ≤±5%, Applying to 4~20mA,Pulse,RS485 |
VDC |
|
Internal power |
1 group 3.0V10AH lithium battery, working voltage 2.0~3.0V |
|
|
|
Signal line interface |
Basic type |
Houseman connector or own three-core cable |
|
|
Explosion proof type |
Internal thread M20×1.5 |
|
|
|
Explosive-proof grade |
ExiaIICT4 or ExdIIBT6 |
|
|
|
Protection level |
IP65 or higher(customized) |
|
|
|
Diameter(mm) |
Standard Range (m3/h) |
Extended Range(m3/h) |
|
4 |
0.04~0.25 |
0.04~0.4 |
|
6 |
0.1~0.6 |
0.06~0.6 |
|
10 |
0.2~1.2 |
0.15~1.5 |
|
15 |
0.6~6 |
0.4~8 |
|
20 |
0.8~8 |
0.45~9 |
|
25 |
1~10 |
0.5~10 |
|
32 |
1.5~15 |
0.8~15 |
|
40 |
2~20 |
1~20 |
|
50 |
4~40 |
2~40 |
|
65 |
7~70 |
4~70 |
|
80 |
10~100 |
5~100 |
|
100 |
20~200 |
10~200 |
|
125 |
25~250 |
13~250 |
|
150 |
30~300 |
15~300 |
|
200 |
80~800 |
40~800 |
According to customer demand, we can customize the corresponding parameters.

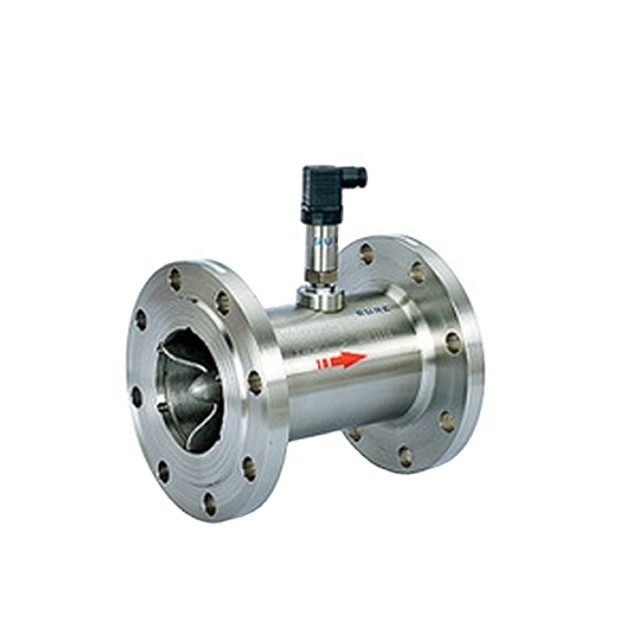

GXTFM-R remote diesel flow meter
The site itself does not have a display function, only the flow of remote signal output, signal flow can be divided into pulse signal and current signal, Especially suitable for the secondary display instruments, PLC, DCS and other control systems with the computer.
|
Parameter |
Value |
|
|
Power supply |
24VDC±15% (Ripply≤5%, Power waste<0.5W) |
|
|
Input signal frequency range |
0~3000Hz |
|
|
4-20mA output |
Load capacity |
≤600Ω |
|
Pulse output |
Load capacity |
>1100Ω |
|
High/Low level amplitude |
>22V / <0.8V |
|
|
Pulse width |
1/2fin×1000(ms) |
|

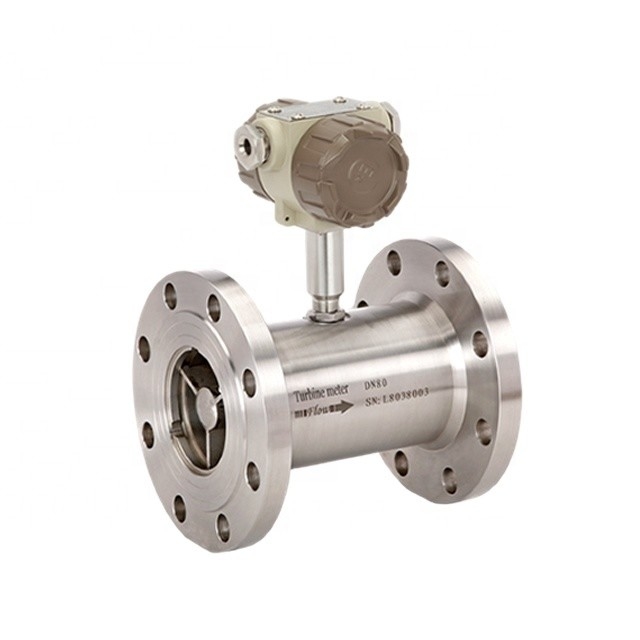

The site itself with field display function, the flow signal can be remote output, two display units available, multiple electrical signal output mode optional.
|
Parameter |
Value |
|
|
Power supply |
External power |
24VDC±15% (Ripply≤5%, Power waste<0.5W) |
|
Internal Power |
3VDC lithium battery (working voltage 2.0V~3.0V,Sustainable work for more than 12 months) |
|
|
Input signal frequency range |
0~3000Hz |
|
|
Pulse output |
Load capacity |
>1100Ω |
|
High/Low level amplitude |
>22V / <0.8V |
|
|
Pulse width |
1/2fin×1000(ms) |
|
|
Current output |
Load capacity |
≤900Ω |
|
Two-wire |
4-20mA |
|
|
Three-wire |
0-20mA |
|
|
Communication interface |
RS485, Using MODBUS |
|

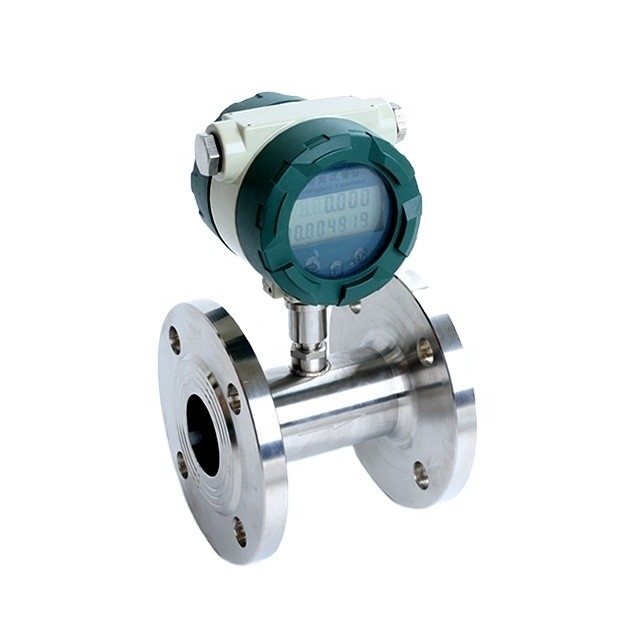

Backlit dot matrix LCD display, full English display, power waste low, multiple display units are available and multiple electrical signal output mode optional.
|
Parameter |
Value |
|
|
Power supply |
External power |
24VDC±15% (Ripply≤5%, power waste<0.5W) |
|
Internal power |
3.6VDC lithium battery (working voltage 2.3V~3.6V,Sustainable work for more than 12 months) |
|
|
Input signal frequency range |
0~3000Hz |
|
|
Pulse output |
Load capacity |
>1100Ω |
|
High/Low level amplitude |
>22V / <0.8V |
|
|
Pulse width |
1/2fin×1000(ms) |
|
|
Current output |
Load capacity |
≤880Ω |
|
Two-wire |
4-20mA |
|
|
Three-wire |
4-20mA |
|
|
Communication interface |
RS485, Using MODBUS |
|
GXTFM-M Mini diesel fuel turbine flow meter
Repeatability ±0.25% has strong corrosion resistance, suitable for high temperature, high pressure and harsh environments.
|
Parameter |
Value |
||
|
Range |
Diameter(mm) |
Measuring range(L/min) |
Meter factor (cm3/imp) |
|
1.15 |
0.035~1.60 |
0.50 |
|
|
1.30 |
0.010~1.86 |
0.60 |
|
|
1.50 |
0.045~2.08 |
0.67 |
|
|
2.00 |
0.085~2.32 |
1.02 |
|
|
2.50 |
0.120~2.40 |
1.44 |
|
|
3.70 |
0.150~3.00 |
2.28 |
|
|
Max pressure |
20.0bar |
||
|
Pressure lose |
2.0bar |
||
|
Temp. range |
-10°C/+100°C |
||
|
Accuracy level |
±1% |
||
|
Pipe connection |
G1/4 Internal thread(Customizable) |
||
|
Installation mode |
Horizontal installation |
||
|
Dimension(L×B×H) |
55×40×47mm |
||
|
Weight |
About 300g |
||
|
Certification |
NSF,CE |
||
