| Place of Origin: | Shanxi, China |
| Brand Name: | KACISE |
| Model Number: | KCZ-101 |
| Price: | $10.00 - $50.00/pieces |
|---|---|
| Packaging Details: | Each unit has individual box and all boxes are packed in standard packages. We can also do the packing based on the requirement of our customers. |
| Supply Ability: | 3000 Piece/Pieces per Week |
| Usage: | Load Cell | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog SENSOR | Capacity: | 0.11, 0.22, 0.55, 1.1, 1.76, 2.2, 4.4t |
| Non-linearity: | 0.017%F.S | Repeatability: | 0.017%F.S |
| Port: | Shanghai Or Other |

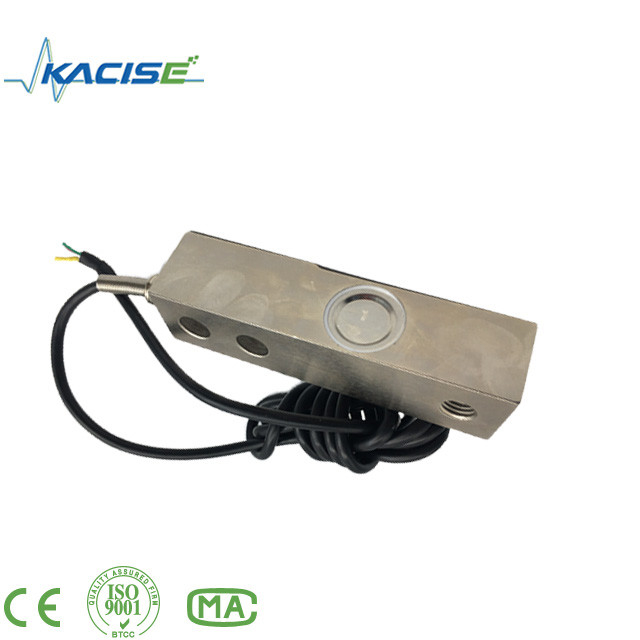

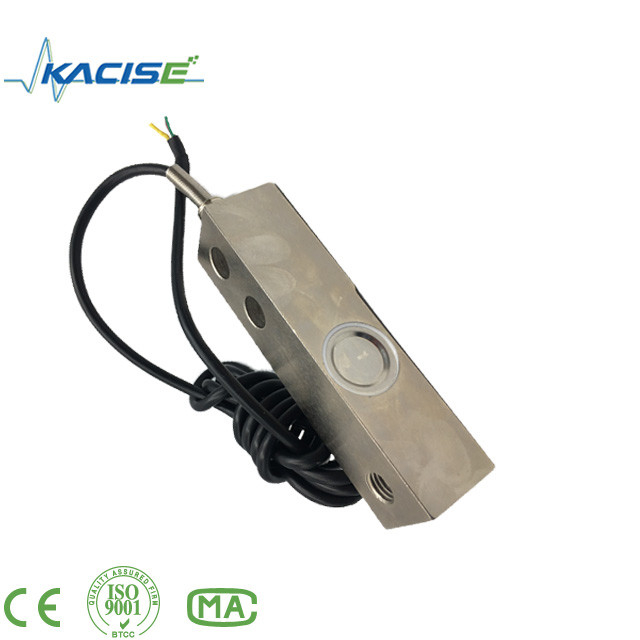

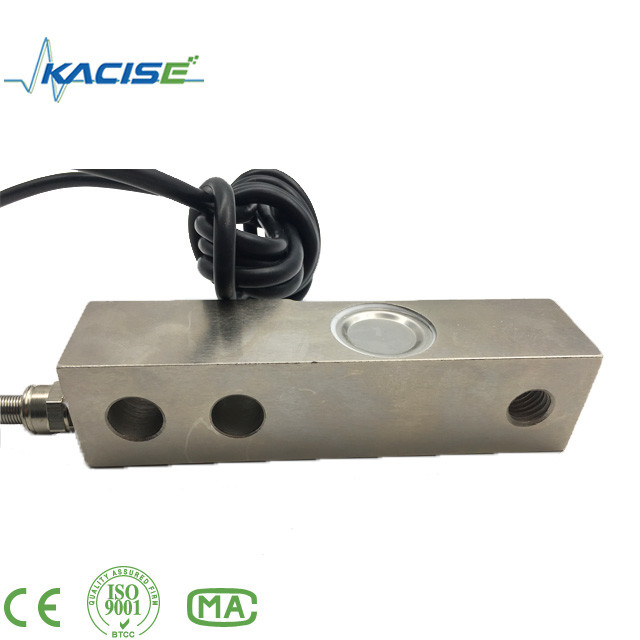

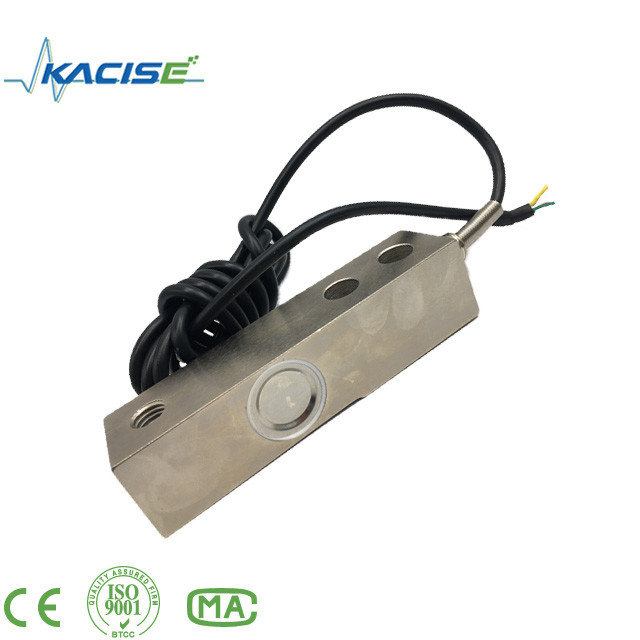

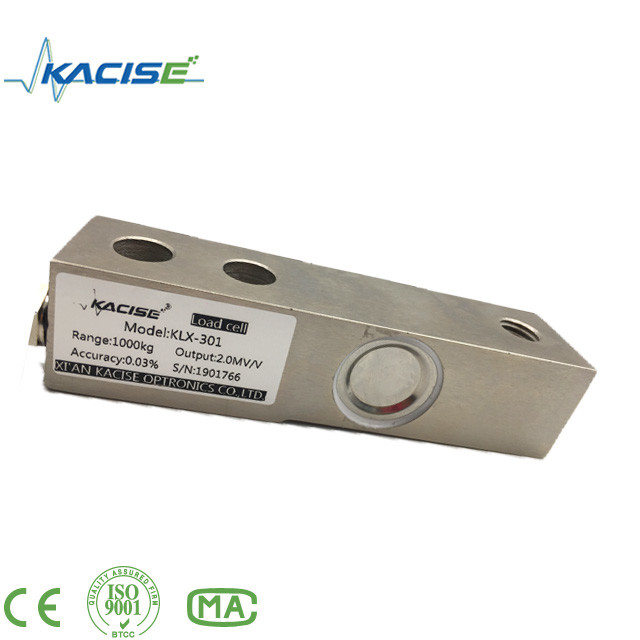

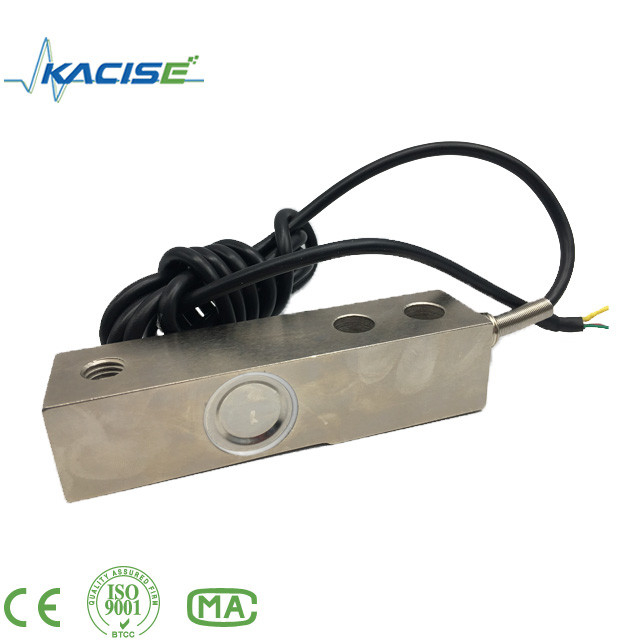

Mavin Load Cell 100kg 300kg 500kg 1000kg
RELATED PRODUCTS
 | | |
Features
Made of stainless steel, strong stability;
Used in various automated stamping applications, IP68 protection;
Mainly used for packing scales, hopper scale and industrial weighing sytem.
Technical Specifications
Capacity | 0.11, 0.22, 0.55, 1.1, 1.76, 2.2, 4.4t |
Accuracy | C3 |
Sensitivity | 1.94±0.1%mV/V |
Zero balance | ±2%F.S. |
Non-linearity | 0.017%F.S |
Hysteresis | 0.017%F.S |
Repeatability | 0.017%F.S |
Creep (30min) | 0.0166%F.S |
Temp.effect on output | 0.014%F.S/10℃ |
Temp.effect on zero | 0.0125%F.S/10℃ |
Input impedance | 390±3Ω |
Output impedance | 350±5Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5V |
Maximum excitation | 15V |
Compensated temp range | -10~40℃ |
Operation temp range | -30~70℃ |
Safe overload | 150%F.S |
Ultimate overload | 300%F.S |
Cable size | Φ5.4x1500mm |
Weight approx. | 0.9kg (0.55~1.76t) 1.6kg (2.2t) 2.2kg (4.4t) |
Material | Stainless steel |
IP class | IP68 |
Dimensions and Connection
Proudct Display
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
1. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
2. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
3. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
4. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
5. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
6. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
