| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | KACISE ULTRASONIC SENSORS |
| Price: | $50.00 - $180.00/pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week High Quality ultrasonic transducer head |
| Usage: | Level Sensor | Theory: | Ultrasonic Sensor |
|---|---|---|---|
| Output: | Switch Transducer, Analogue Transducer,digital Transducer | Ultrasonic Sensor: | Ultrasonic Sensor |
| Analog Output: | 40-20mA, 0/1-5V, 0/1-10V Optional | Measuer Distance: | 100mm-5000mm |
| Power Supply: | 12-30VDC | Digital Output: | RS485, Can Bus Optional |
| Digital Protocol: | Modbus, Sefdefination Protocol Based On Iso Optional | Product Feature: | Ultrasonic Transducer 40khz Generator |
| Port: | Shanghai Or Other | ||
| High Light: | Ultrasonic Fluid Level Meter,Fluid Ultrasonic Transducer Head,100mm Ultrasonic Transducer Head |
||
Features of High Quality ultrasonic transducer head
1. Compatible with the many kinds of this similar product.
2. High sensitivity
3. Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.
4. Free run operation can continually measure and output ranger information
5. 9V-28V supply with very low average current draw
6. Multi-kind output type such as analog (40-20mA, 0/1-5V, 0/1-10V), RS485, Can bus.
7. Sensor operates at 40 KHz, 112 KHz, 175 KHz, 300 KHz, 1 MHz

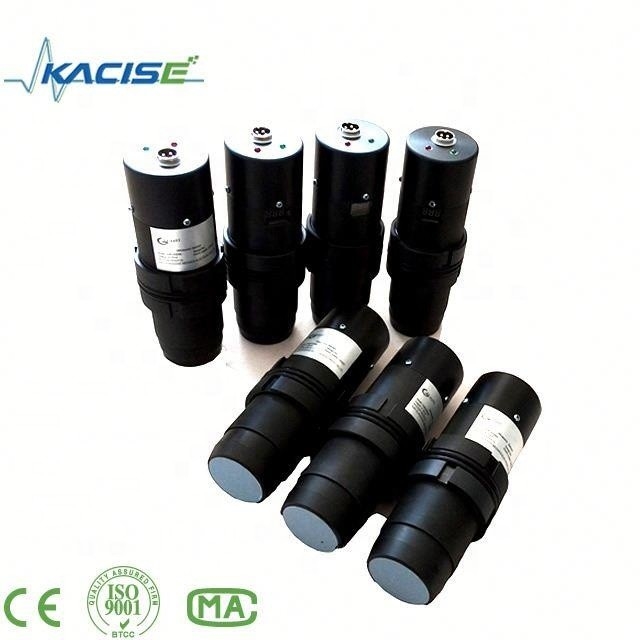

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 9.0V-28V operation detects objects from 0.1meters to 10meters and provides sonar range information from 0.25meters out to 10meters out with 0.001meters or 0.01meters resolution. The interface output formats included are pulse width output, analog voltage output 0/4-20mA current output, NPN/PNP output and RS485,RS232 output modbus-RTU and modbus-ASCII supported.
|
Parameters |
|
General Specifications |
|
Sensing distance 100.4000mm |
|
Adjustment range 100.4000mm |
|
Unusable area 0.200mm |
|
Standard target plate 100mm×100mm |
|
Transducer frequency About 112kHz |
|
Response delay About 195ms |
|
Indicators/Operating means |
|
LED blue Power on |
|
LED yellow Indication of the switching state Flashing: program function object detected |
|
LED red permanently red: Error Red, |
|
Electrical specifications |
|
Operating voltage UB 10.30VDC,ripple10%ss |
|
Power consumption P0 ≤900 mW |
|
Output |
|
Output type analogue output 0.10V |
|
Resolution evaluation range [mm]/4000, but ≥ 0.35 mm |
|
Deviation of the characteristic curve ≤0.2% of full-scale value |
|
Repeat accuracy ≤0.1% of full-scale value |
|
Load impedance 0.500 Ohm |
|
Temperature influence ≤2% from full-scale value |
|
Ambient conditions |
|
Ambient temperature -25.70°C |
|
Storage temperature -40.85°C |
|
Mechanical specifications |
|
Protection grade IP67 |
|

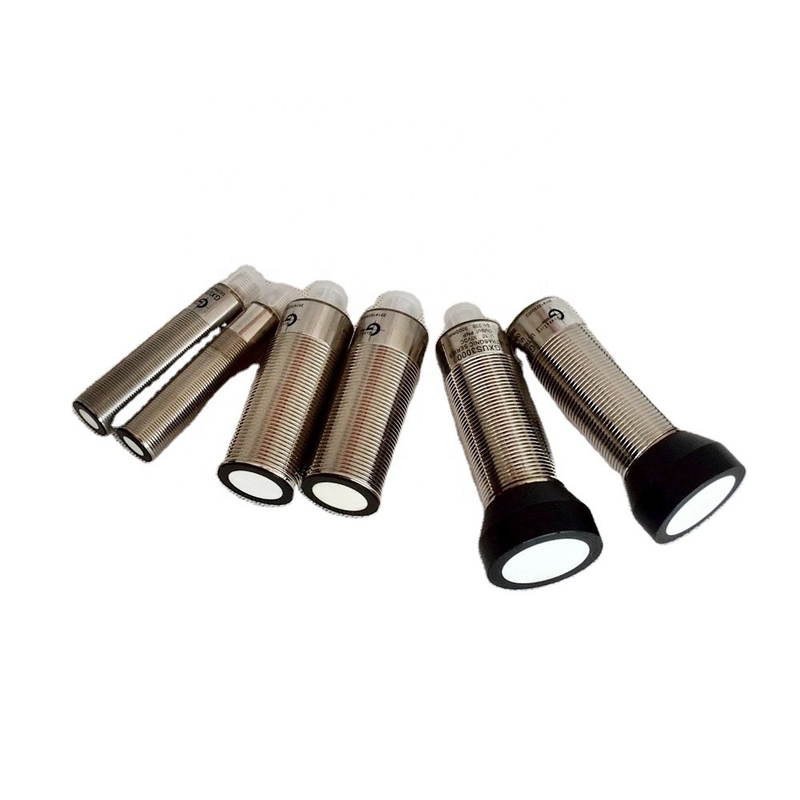

Connection Connector M12x1,4-PIN |
|
Material Housing Brass, nickel-plated |
|
Transducer Epoxy resin/hollow glass sphere mixture; Polyurethane foam |
|
Weight 60g |
External synchronization
The sensor can be synchronized by the external application of a square wave voltage. A synchronization pulse at the synchronization input starts a measuring cycle. The pulse must have a duration greater than 100 μs. The measuring cycle starts with the falling edge of a synchronization pulse. A low level > 1 s or an open synchronization input will result in the normal operation of the sensor. A high level at the synchronization input disables the sensor. Two operating modes are available:
1. Multiple sensors can be controlled by the same synchronization signal. The sensors are synchronized.
2. The synchronization pulses are sent cyclically to individual sensors. The sensors operate in multiplex mode.
Internal synchronization
The synchronization connections of up to 5 sensors capable of internal synchronization are connected to one another. When power is applied, these sensors will operate in multiplex mode.
The response delay increases according to the number of sensors to be synchronized. Synchronization cannot be performed during TEACH-IN and vice versa. The sensors must be operated in an unsynchronized manner to teach the evaluation limits.
Note:
If the option for synchronization is not used, the synchronization input has to be connected to ground (0V) or the sensor has to be operated via a V1 cable connector (4-pin).
Adjusting the evaluation limits
The ultrasonic sensor features an analogue output with two teachable evaluation limits. These are set by applying the supply voltage - UB or + UBto the TEACH-IN input. The supply voltage must be applied to the TEACH-IN input for at least 1 s. LEDs indicate whether the sensor has recognized the target during the TEACH-IN procedure. The lower evaluation limit A1 is taught with - UB, A2 with + UB.
Two different output functions can be set:
1. Analogue value increases with rising distance to object (rising ramp)
2. Analogue value falls with rising distance to object (falling ramp)
Evaluation limits may only be specified within the first 5 minutes after
Power on. To modify the evaluation limits later,
the user may specify the desired values only after a new Power On.
TEACH-IN rising ramp (A2 > A1)
- Position object at lower evaluation limit
- TEACH-IN lower limit A1 with - UB
- Position object at upper evaluation limit
- TEACH-IN upper limit A2 with + UB
TEACH-IN falling ramp (A1 > A2):
- Position object at lower evaluation limit
- TEACH-IN lower limit A2 with + UB
- Position object at upper evaluation limit
- TEACH-IN upper limit A1 with - UB
Default setting
A1: unusable area
A2: nominal sensing range
Mode of operation: rising ramp
Adjusting the sound cone characteristics of High Quality ultrasonic transducer head
The ultrasonic sensor enables two different shapes of the sound cone, a wide angle sound cone and a small angle sound cone.
1. Small angle sound cone
- switch off the power supply
- connect the Teach-input wire to -UB
- switch on the power supply
- the red LED flashes once with a pause before the next.
- yellow LED: permanently on: indicates the presence of an object or disturbing object within the sensing range
- disconnect the Teach-input wire from -UB and the changing is saved
2. Wide angle sound cone
- switch off the power supply
- connect the Teach-input wire with + UB
- switch on the power supply
- the red LED double-flashes with a long pause before the next.
- yellow LED: permanently on: indicates an object or disturbing object within the sensing range
- disconnect the Teach-input wire from + UB and the changing is saved
Installation conditions
If the sensor is installed at the environment temperature fall below 0°C,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
Package and accessories information
2 units are in box and all boxes are packed in standard packages or customers requests available. Each body of the ultrasonic is shield by foam.
The accessories are as follows:
a, 2 meters length cable
b, 2 nuts for fixing the sensor
Ordering information
