| Place of Origin: | Shaanxi, China |
| Brand Name: | GX or OEM |
| Model Number: | GXPGV |
| Price: | $5.00 - $50.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Name: | Glycerine Freon Hydraulic Pressure Gauge | Model: | GXPGV |
|---|---|---|---|
| Medium: | High Viscosity, Strong Corrosion | Oil Filled: | Glycerine, Silicone Oil |
| Material: | Stainless Steel, Iron, Brass, Aluminum,etc. | Mounting: | Bottom, Back (optional) |
| Accuracy: | 1.6, 2.5 | Size: | 60mm, 80mm, 100mm, 150mm,etc. |
| Certificate: | CE | Delivery Time: | ASAP After Payment |
| Port: | Xi'an Shanghai Or Other | ||
| High Light: | Glycerine Hydraulic Pressure Gauge,Freon Hydraulic Pressure Gauge,30mm Aluminium Precision Pressure Sensor |
||
Product Description
Application
PGV series filled pressure gauge is based upon the advanced process technology of world.It is suitable for measuring the pressure or vacuum of liquid,gaseous and vaporous media that will not explode,crystallize or corrode the elements.
Especially,it offer a significant cushioing and dampening effect,so can steadily indicate the pressure of media in a sharp pulsation condition.
This gauge is widely used in oil industry, chemical industry ,chemical fiber industry, metallurgical industry, power station and so on. It can measure the pressure of all kinds of liquid medium in technologic process which has higher require for corrosion-proof and ant vibration characters.
Feature
The gauge has the reasonable design with structure, exquisite craft, higher measuring accuracy
And sustained stability. So it is sold to abroad, also is the ideal accessories for domestic consumers who want to homemade the same gauge imported from abroad.
Working Principium
Besides the features of series PG,series PGV offer a significant cushioning and dampening effect,reduce the internal gauge damage and retain high accuracy of measure as well as provide a longer gauge life by filling damped oil and installing damped tube,piece and bolt.
Parameter
|
Item name |
Scale range (Mpa) |
Accuracy grade |
|
Stainless steel pressure gauge |
0-0.1,0.16,0.25,0.4,0.6,1, 1.6,2.5,4.6,10,16,25,40,60, -0.1-0,0.06,0.15,0.3,0.5, 0.9,1.5,2.4
|
2.5 or 1.6 |
|
Oiled stainless steel pressure gauge |
||
|
Stainless steel pressure gauge with black flange |
||
|
Pressure gauge back connection with front flange glycerin filled |
Dimension
| Type |
D |
H | H2 | B | D2 | d0 | d | L | H1 |
| PGV60 | Ø60 | 32 | 13 | 55 | M14x1.5 | 14 | 22 | ||
| PGV60AT | 0 | 65 | 4.5 | 76 | |||||
| PGV100 | Ø 100 | 44 | 18 | 90 | M20x1.5 | 20 | 27 | ||
| PGV100AT | 30 | 90 | 5.5 | 118 | |||||
| PGV150 | Ø 150 | 44 | 18 | 120 | M20x1.5 | 20 | 27 | ||
| PGV150AT | 55 | 95 | 5.5 | 165 |

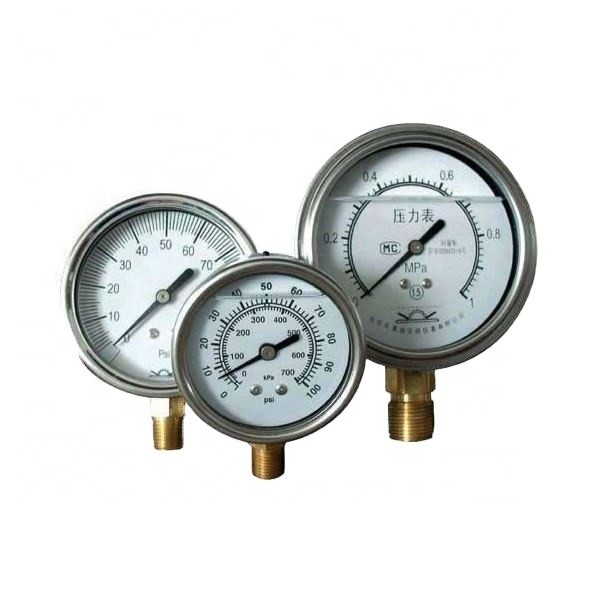

Product pictures
Packaging & Shipping
| The quality principle: Quality is the best sales |
| Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow |
| Shipping: |
| 1.All parts will be shipped out within 1 - 3 working days after comfirm the payment |
| 2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex |
| 3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service. |
| 4.Any import fees or charges are af ed by the buyers |
| Service : |
| 1.Provide you one-stop service of electronic components |
| 2. Competitive price advantage help to save your purchase cost and bring in you more profits |
| 3. Having advanced e-commerce capabilities |
| 4. Quick and accurate delivery and flexible logistics support |
| 5. Personalized service, based on your programs and ideas to serve you |
