| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA12 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Scale Factor One-month Composite Repeatability: | ≤40 (1σ) (ppm) | Vibration Peak Sine: | 15g@20Hz ~ 2000Hz |
|---|---|---|---|
| Storage Temperature: | -55~ +80(℃) | Threshold: | ≤5(μg) |
| Input Voltage: | ±12 ~ ±18(V) | Linearity: | ≤50 (μg/g2) |
| Bias Temperature Sensitivity: | ≤40(μg/℃) | Bias One-month Composite Repeatability: | ≤40(1σ) (μg) |
| Input Range: | ±80(g) | Resolution: | ≤5(μg) |

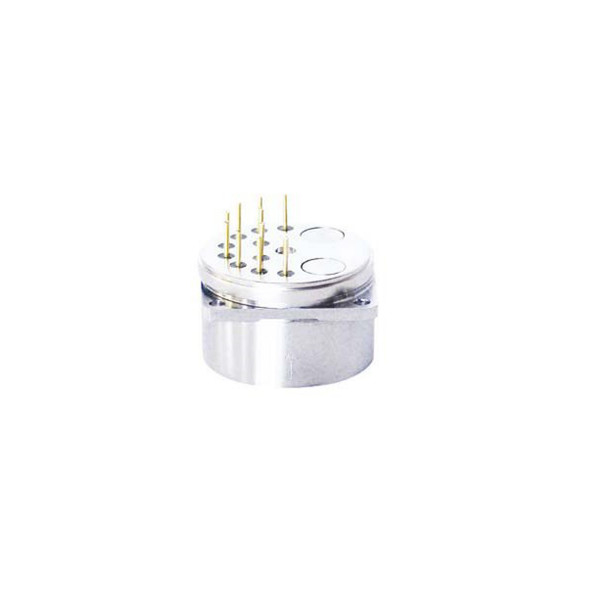

Utilizing advanced quartz material, the quartz accelerometer surpasses metal alternatives in material performance, particularly excelling in fatigue resistance. This results in elevated accuracy, a resilient ability to withstand disturbances, a wide measuring range, and robust overload capacity. Quartz accelerometers are currently extensively utilized for measuring linear acceleration, vibration acceleration, speed, distance, angular velocity, and angular displacement. Key application areas include the oil logging field, inertial navigation system field, and aerospace field.
● Small size and light weight
● Analog output
● Wide load resistance range
● Square precision mounting flanges
● Application in unmanned aircraft and petroleum pipeline
| Performance | KSQA12A | KSQA12B |
| Input Range (g) | ±80 | ±30 |
| Bias (mg) | ≤5 | ≤5 |
| Temperature Sensitivity (μg/℃) | ≤40 | ≤50 |
| One-month Composite Repeatability (1σ) (μg) | ≤40 | ≤80 |
| Scale Factor (mA/g) | 0.6 ~ 1.3 | 0.9 ~ 1.3 |
| Temperature Sensitivity (10-6/℃) | ≤60 | ≤60 |
| One-month Composite Repeatability (1σ) (10-6) | ≤40 | ≤80 |
| Linearity (μg/g2) | ≤50 | ≤50 |
| Threshold (μg) | Less than 5 | Less than 5 |
| Resolution (μg) | Less than 5 | Less than 5 |
| Input Voltage (V) | ±12 ~ ±18 | ±12 ~ ±18 |
| Operating Temperature (℃) | -45 ~ +80 | -45 ~ +80 |
| Size (mm) | Ø18.2×23.6 | Ø18.2×23.6 |
| Weight (g) | ≤35 | ≤35 |
 |
|

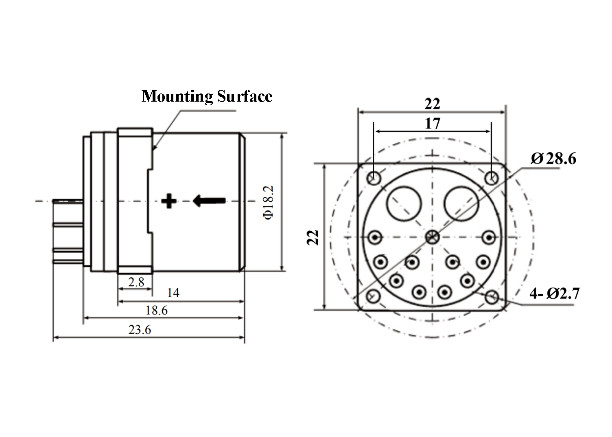

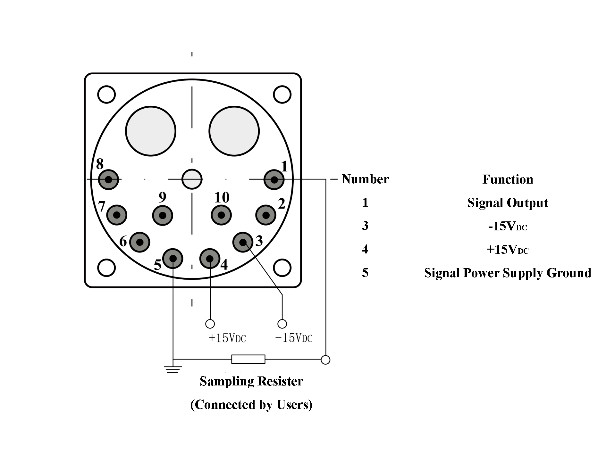

| KSQA12 Configuration Drawings | KSQA12 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 100g, half-sine, 8ms ~ 12ms |
| Storage Temperature | -55℃ ~ +80℃ |
Our technical support and services are available to help you make the most of your Accelerometer Sensor. Whether you have a pre-sales question, need technical assistance, or would like to stay up-to-date with the latest product information, our technical support team is here to help.
If you have questions about the specifications, features, or usability of the Accelerometer Sensor, our pre-sales team is available to provide you with the answers you need. Contact us for more information.
If you have technical questions or need help troubleshooting, our technical support team is available to assist you. Contact us for help.
The Accelerometer Sensor is securely packaged in a bubble wrap packet and then placed in an appropriate sized box or container. The box or container is then sealed and labeled with the appropriate shipping information.
The Accelerometer Sensor is shipped via a reliable courier service or postal service. The package is tracked and insured to ensure safe delivery.
