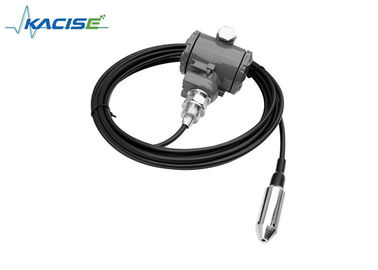

Multiple Output Submersible Pressure Sensor / Liquid Level Sensor Low Voltage Drive

Multiple Output Submersible Pressure Sensor / Liquid Level Sensor Low Voltage Drive

    • Multiple Output Submersible Pressure Sensor / Liquid Level Sensor Low Voltage Drive
    • Multiple Output Submersible Pressure Sensor / Liquid Level Sensor Low Voltage Drive
    • Multiple Output Submersible Pressure Sensor / Liquid Level Sensor Low Voltage Drive
    • Multiple Output Submersible Pressure Sensor / Liquid Level Sensor Low Voltage Drive
  • Multiple Output Submersible Pressure Sensor / Liquid Level Sensor Low Voltage Drive

    Product Details:

    Place of Origin: Shaanxi, China (Mainland)
    Brand Name: Kacise
    Certification: CEISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates
    Model Number: GXPS400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 10000 Piece/Pieces per Week negotiable
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Or Customize Range: 0...200m
    Output: 4-20mA , 0-10V , 0-5V , 0.5-4.5V Power Supply: 9-30V
    Accuracy: ±0.25%F.S, ±0.5%F.S Operating Temperature: -40°C~85°C
    High Light:

    high accuracy pressure sensor

    ,

    piezoresistive pressure transmitter

    Submersible Liquid level Sensor Stainless Steel case multiple output Low voltage drive

    Application

    • Deep well level measuring
    • Hydrologic measurement for river, lake, sea
    • Sewage treatment
    • Cloudy level measuring
    • Fluid reservoir level measuring
    • Water-saving irrigation
    • Circulating liquid consumption monitoring
    • Diversion project
    Feature
    • Diffused-Silicon oil filled core
    • All kinds of structure to satisfy different users
    • Easy to use with submersible measuring
    • Multiple pressure range and signal output
    • Non-polar 2 wire system current output
    • Can be used in lightning protection products
    • Reinforcing rib for liquid cable available
    • Intrinsically safe explosion proof, Isolation explosion proof, CE



    Introduction



    GXPS400 series level transmitter is a special structure and use of products, high precision, small size and

    good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered

    according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof

    certificates. Customized solutions for various fluids can be supplied.



    Electronic interface and signals definition






    Parameter



    Spec. Numerical value
    Pressure range

    0~1……500mH2O

    9.8KPa…4900KPa

    0.09bar…49bar

    0.09atm…48atm

    1.4psi… 711psi

    2.8inchHg…1400inchHg

    Overload pressure 1.5times Rated pressure
    Secondary containment 3 times rated pressure
    Accuracy ±0.25%F.S, ±0.5%F.S, ±1.0%F.S
    Stability Typical value: 0.1%F.S Max.: 0.2% F.S/year
    Operating Temperature -40°C~85°C or -40 °C ~125 °C
    Compensation temperature -10°C~70°C
    Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
    Electrical properties 2 line 3 line
    Output signal 4~20mA 0~5V 0~10V
    Power supplies 10~30Vdc 80~30Vdc/ac 11~30Vdc/ac
    Load resistance (U-10)/0.02(Ω) 〉 100kΩ
    Insulation 〉 100MΩ@50V
    Electrical Connections waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
    Pressure interface G1/4,input type
    Response time 10ms
    Electric strength 500Vac@1 second
    Graduate Certificate Programs certificate of explosion-proof, CE
    Electromagnetic compatibility electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
    Lightning protection air conduction resistance 8000V,case, cable conduction



    Ordering information



    GX-Type-Range-Output-Accuracy-Power-Structure-Cable length-Package

    1. Type: PS400=universal type, PS400E=intrinsically safe type, PS400D=isolation explosion proof ,PS400L= lighting protection, PS400A=thread mounted, PS400B=Submersible & thread type, PS400-TH=Sediment prevention, PS430=minor diameter, PS400-1=antifouling, PS400-2=High density, PS470=economical, RSV=Reserved
    2. Range: 1m…500m= the upper limitation of the range
    3. Output: A=4~20mA, V=0~5Vdc, V1=1~5Vdc. V2=0~10Vdc
    4. Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S, 1.0=±1.0%F.S
    5. Power: 24VDC, 11~30Vdc, or customized
    6. Structure: T= submersible type, G=F=split, Ht=customized
    7. Cable length: XXm=XX meter 1-150m
    8. Package: Bb, Foam

    e.g. GXPS400-2.5m-A-0.5-DC24-T-5m-Foam

    PS400, measuring range is 0-2.5mH2O, accuracy is 0.5%, 24Vdc power supply 4-20mA output, submersible type with 5m cable, foam packaged.
